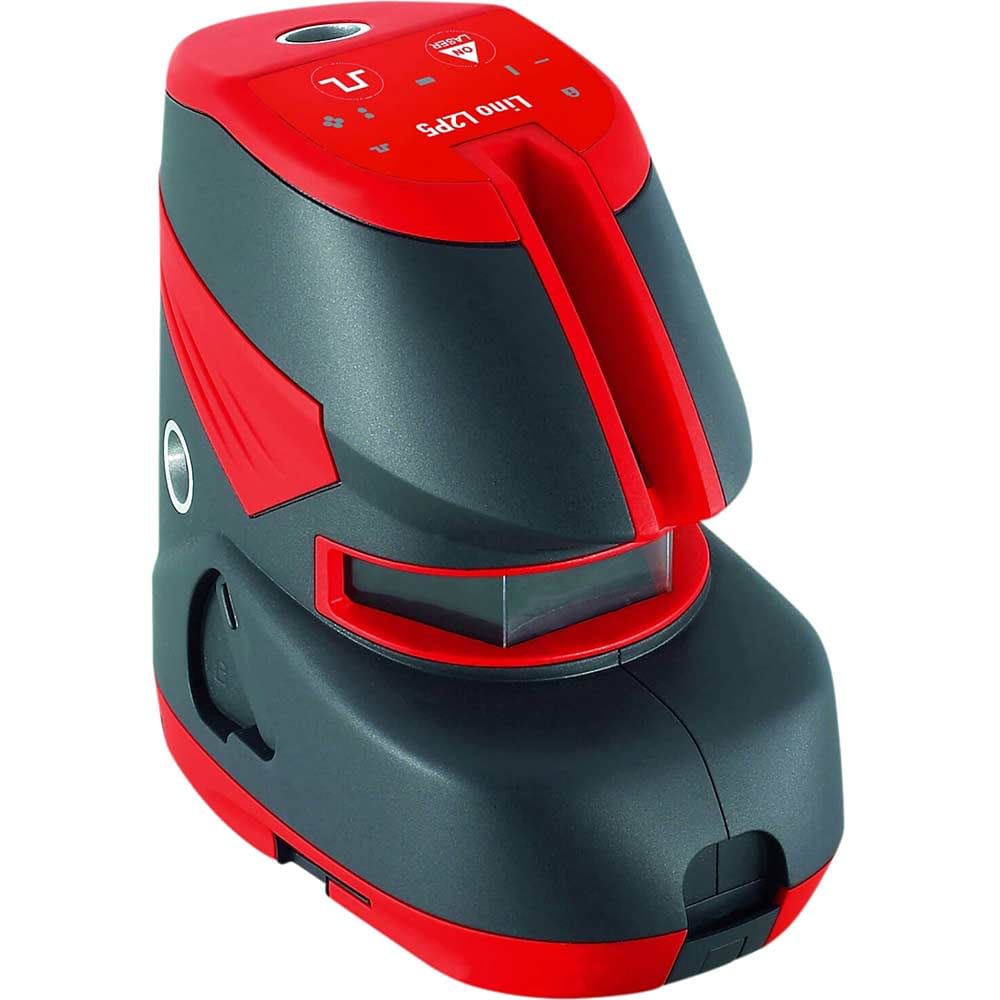

Leica Geosystems Lino L2P5 Cross Line Self Levelling Laser Level

The Leica Lino L2P5 projects a combination of long clear cross lines and points set at exact plumb or 90° angles. Easy to set-up, just switch on and the self levelling system compensates for up-to±4° allowing you to concentrate on the job in hand. With a simple two button operation you can switch between horizontal, vertical or cross line projection.

The wide 180° aperture projects a long horizontal line which is perfect for levelling long areas or across multiple walls - for example when laying out a kitchen work surface.

Pulsing line can be selected to increase the laser range with use of a line detector (Leica Reference LLD2) for long distance or outside operation. This also activates the power saving mode, reducing power consumption by 40%.

The laser unit incorporates a lock function which protects the unit during transport and also allows the unit to project lines at an angle by tilting the unit. You can manually switch off the self-levelling using the lock function. The laser line can then be projected at any angle.

Minor angular misalignments of±4° are compensated automatically. If the angular misalignment is greater, the device does not project any lines or dots.

Functions: horizontal, vertical or cross line modes, plumb points, points at 90°, pulse function with power-saving mode, exact 90° angles.

Supplied with: 1 x Target Plate, 1 x Magnetic Multifunction Adaptor, 4 x AA Batteries and 1 x Carrying Pouch.

Specification

Level Accuracy: Horizontal:± 1.5mm @ 5m, Vertical:± 0.75mm @ 3m line length.
Self-Levelling Range: 4°± 0.5°.
Working Range: 15m (30m with receiver).
Power: 4 x AA Batteries 1.5V (Supplied).
Dimensions (HxDxW): 118 x 131 x 76mm.
Tripod Thread: 1/4in.
Protection Class: IP54 rated, against splash & dust damage.
