Spindle Moulders

About Spindle Moulders

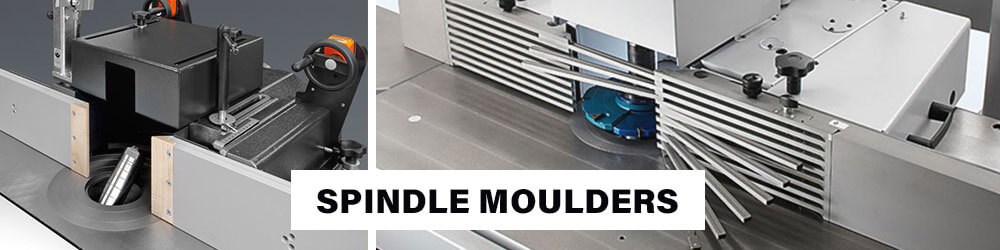

Spindle moulders are powerful woodworking machines designed for precision shaping, moulding, and profiling of timber. These robust workshop tools excel at creating decorative edges, grooves, rebates, and complex profiles in both softwood and hardwood materials. Unlike hand-held routers, spindle moulders are stationary machines that bring exceptional stability and accuracy to repetitive moulding tasks, making them indispensable equipment for professional joiners and serious woodworking enthusiasts.

At the heart of a spindle moulder is a vertically oriented spindle shaft that accepts a wide variety of tooling, including profile cutters, rebate blocks, and custom-made cutterheads. The workpiece is fed past the rotating cutter using adjustable fences and guides, allowing for precise depth control and consistent results across multiple pieces. Modern bench-mounted spindle moulders combine the functionality of industrial machines with a compact footprint suitable for smaller workshops, offering variable speed control and interchangeable spindle sizes to accommodate different cutter types and profile depths.

These machines are particularly valued for their versatility in creating everything from simple chamfers and roundovers to intricate architectural mouldings, panelled doors, and custom skirting boards. The ability to process longer workpieces with greater control than a router table, combined with the power to handle heavy-duty profiling operations, makes spindle moulders an essential investment for any serious woodworking operation.

Jargon Buster

Spindle Speed

The rotational speed of the spindle shaft, typically measured in RPM (revolutions per minute). Variable speed control allows you to match the optimal cutting speed to different cutter diameters and timber types, with slower speeds generally suited to larger diameter cutters and harder woods.

Spindle Diameter

The shaft diameter that determines which cutters and tooling can be fitted. Common sizes include 20mm, 30mm, and 1/2", with interchangeable spindles allowing greater flexibility. Larger diameter spindles provide greater rigidity and reduced vibration for heavy profiling work.

Rise and Fall

The vertical adjustment mechanism that raises or lowers the spindle to control cutting depth. Precision rise and fall adjustment is essential for accurate profiling and ensuring consistent results when machining multiple pieces.

Fence Adjustment

The moveable guide system that positions the workpiece relative to the cutter. Independent adjustment of infeed and outfeed fences allows compensation when removing material from the edge, ensuring smooth feeding throughout the cut.

Cutter Block

The rotating assembly that holds the cutting knives or profile cutters. Available in various configurations including square blocks, round limiters, and euro-profile systems, each suited to different types of profiling work.

Ring Fence

A circular fence system used for curved work and shaped components, allowing the workpiece to be guided smoothly around the cutter when creating arched mouldings or curved profiles.

Who Uses Spindle Moulders?

Spindle moulders are essential equipment for a wide range of woodworking professionals and enthusiasts:

• Joiners and Cabinet Makers – Creating custom mouldings, door profiles, and architectural details for fitted furniture and bespoke joinery projects
• Shopfitters – Producing consistent profiles for retail displays, counters, and commercial interior fixtures
• Window and Door Manufacturers – Machining glazing rebates, weather seals, and decorative profiles for timber windows and door frames
• Furniture Makers – Crafting decorative edges, panel mouldings, and custom profiles for high-quality furniture pieces
• Restoration Specialists – Replicating period mouldings and architectural details for heritage building restoration work
• Pattern Makers – Creating precise profiles and forms for foundry patterns and prototyping applications
• Educational Workshops – Teaching traditional woodworking skills and machine operation in colleges and training facilities
• Advanced DIY Woodworkers – Serious hobbyists undertaking ambitious projects requiring professional-quality profiling capabilities

How to Choose the Right Spindle Moulder

Selecting the appropriate spindle moulder depends on several key factors relating to your specific requirements and workshop setup:

Motor Power and Performance: Consider the power output in relation to your intended workload. Motors typically range from 750W to 2.2kW for bench-mounted models, with higher wattage providing greater capacity for heavy-duty profiling in hardwoods and deeper cuts. Ensure the machine runs on standard 230V UK mains electricity with appropriate circuit protection.

Spindle Configuration: Look for machines offering interchangeable spindles in multiple diameters (typically 20mm and 30mm) to maximise tooling compatibility. Variable speed control is highly desirable, allowing you to optimise cutting speeds for different cutter sizes and timber species, typically ranging from 3,000 to 10,000 RPM.

Table Size and Rigidity: A larger cast iron or steel table provides better support for longer workpieces and improved stability during machining. Check for precision-ground surfaces and robust construction that resists vibration. Table dimensions around 600mm x 400mm suit most workshop applications whilst maintaining a manageable footprint.

Fence Quality and Adjustment: Precision fence adjustment is critical for accurate work. Look for independently adjustable infeed and outfeed fences with positive locking mechanisms, fine adjustment capabilities, and compatibility with ring fences for curved work. Transparent guard systems integrated with the fence improve visibility whilst maintaining safety.

Safety Features: Modern spindle moulders should incorporate emergency stop buttons, spindle brakes for rapid stopping, and comprehensive guarding systems. The ability to fit proper extraction for dust and chip removal is essential for maintaining a safe working environment in compliance with HSE guidance.

Build Quality and Brand Reputation: Established brands like Draper offer reliable construction and ongoing support. Consider factors such as warranty coverage, availability of spare parts, and technical support when making your investment. Cast iron construction generally indicates superior build quality and longevity compared to pressed steel alternatives.

Popular Accessories

• Profile Cutters and Cutter Blocks – Extensive range of standard and custom profiles for creating different edge treatments, mouldings, and decorative details in timber
• Limiters and Bearing Guides – Safety devices that control cutting depth and guide the workpiece, essential for safe operation when using large profile cutters
• Extraction Hoses and Adaptors – Connect your spindle moulder to workshop dust extraction systems, maintaining clean air and preventing chip buildup around the cutting area
• Push Sticks and Push Blocks – Essential safety accessories for feeding workpieces past the cutter whilst keeping hands at a safe distance from the rotating tooling
• Mitre Fences and Sliding Carriages – Enable accurate cross-cutting and angled profiling operations, expanding the machine's versatility for complex joinery tasks
• Digital Speed Controllers – Aftermarket controllers offering precise speed adjustment and readouts for optimising cutting performance across different materials
• Featherboards and Hold-Downs – Apply consistent pressure to keep workpieces tight against the fence and table during machining for improved accuracy and safety

Safety Information

Spindle moulders are powerful machines requiring strict adherence to safety procedures. The HSE classifies spindle moulding as a high-risk activity, and operators must receive proper training before use. Always ensure guards are correctly fitted and adjusted to cover the maximum amount of cutter whilst allowing the workpiece to pass. Never attempt to machine pieces that are too small to be safely controlled – use push sticks and holding devices to maintain safe distances from rotating cutters.

Personal protective equipment is essential: wear close-fitting clothing without loose sleeves, use safety glasses or a face shield to protect against ejected chips, and employ hearing protection as spindle moulders generate significant noise levels. Dust masks or respirators rated for fine wood dust are necessary when machining creates airborne particles, with proper extraction strongly recommended to maintain air quality below COSHH exposure limits.

Ensure the machine is properly earthed and connected via an RCD-protected circuit in compliance with BS 7671 wiring regulations. Never change cutters whilst the machine is connected to the power supply, and always allow the spindle to reach full speed before feeding workpieces. Keep the work area clear of offcuts and debris, maintain sharp cutters to reduce cutting forces, and never work when tired or distracted. Consider undertaking formal training through organisations like Bwoodtrain or local colleges to develop safe operating techniques.

Frequently Asked Questions

What's the difference between a spindle moulder and a router table?

Whilst both machines perform similar profiling tasks, spindle moulders feature a vertical spindle driven from below with superior power and stability, making them better suited to heavy-duty work and longer production runs. They accept larger, more robust cutters and provide better control for processing longer workpieces. Router tables use a hand router mounted inverted and are generally more suitable for lighter work and smaller-scale projects.

Can I use router cutters in a spindle moulder?

Standard router cutters are not directly compatible with spindle moulders due to different spindle diameters and rotation speeds. However, special adaptors and collets are available to mount router bits, though this is generally only recommended for light-duty work. For regular spindle moulding tasks, dedicated spindle tooling with appropriate bore sizes provides safer and more efficient operation.

How much space do I need for a bench-mounted spindle moulder?

A bench-mounted model typically requires approximately 1 metre of bench width and 600-700mm depth for the machine itself. However, you should allow substantial infeed and outfeed clearance – ideally 2-3 metres in front and behind the machine – to safely handle longer workpieces. Also ensure adequate space around the machine for safe operation and adjustment access.

Do I need three-phase power to run a spindle moulder?

Bench-mounted spindle moulders designed for smaller workshops typically operate on standard 230V single-phase UK domestic supply, making them suitable for most workshop environments. Larger industrial spindle moulders may require three-phase 400V power. Always check the electrical requirements before purchase and ensure your workshop circuit can handle the machine's power consumption with appropriate fusing and RCD protection.

How often should cutters be sharpened?

Cutter maintenance depends on usage intensity and materials being machined. Professional workshops processing hardwoods daily may require sharpening every few weeks, whilst occasional users might maintain sharp edges for months. Signs that sharpening is needed include burn marks on workpieces, increased feed resistance, rough surface finish, and excessive noise or vibration. Maintaining sharp cutters improves safety by reducing required feed pressure and produces cleaner results.
