Bosch 5 Piece SDS Plus Masonry and Concrete Drill Bit Set

The SDS plus-7 Drill Bit performs precision-drilling in reinforced concrete. Its full carbide head with 5 cutters is fused with IDS welding technology to drill with a very high level of accuracy. A vibration-reduced power transfer from the rotary hammer to the full carbide head is provided by the 2 + 2 flute design, which is made of high-alloy steel and created using optimised hardening technology. This offers the stability necessary for exact results. To prevent wandering and obtain a precise hole diameter, the Activeteq centring tip guides the drill position from the start. The bit is intended for use on masonry, concrete and reinforced concrete. The set comes in the tough and compact Robust Line storage box that provides a good overview and safe storage and transportation. To achieve accurate results, the visibility of the wear mark indicates if the diameter of the hole is still in tolerance for metal anchor setting. As proof of quality, the drill bit bears the test mark of the PGM Masonry Drill Bit Association Board, guaranteeing compliance with tight tolerances, exact drilling and the firm hold of fixings. It is made in Germany. It is compatible with rotary hammers with SDS plus holders.

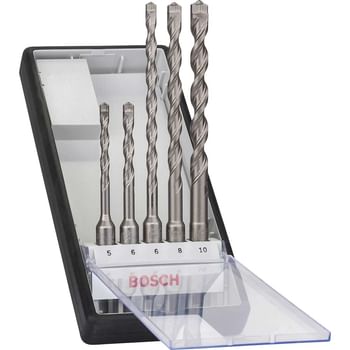

5-piece Robust Line SDS plus-7 hammer drill bit set

• Precision in Reinforced Concrete
• SDS plus-7 Drill Bit performs precision-drilling in reinforced concrete
• Full carbide 5-cutter head, fused with IDS welding technology, drills with a very high level of accuracy
• 2 + 2 flute design made of high-alloy steel reduces vibration for exact results
• Activeteq centring tip guides the drill position from the start, resulting in a precise hole diameter

Specifications
Diameter mm: 5,0; 6,0; 6,0; 8,0; 10,0
Working length mm: 50; 50; 100; 100; 100
Total length mm: 110; 115; 165; 165; 165
Set dimension(s) mm: 197,0 x 87,5 x 23

Materials:
Concrete
Stone

Materials in Detail:
Reinforced concrete
Concrete
Natural stone
Masonry
