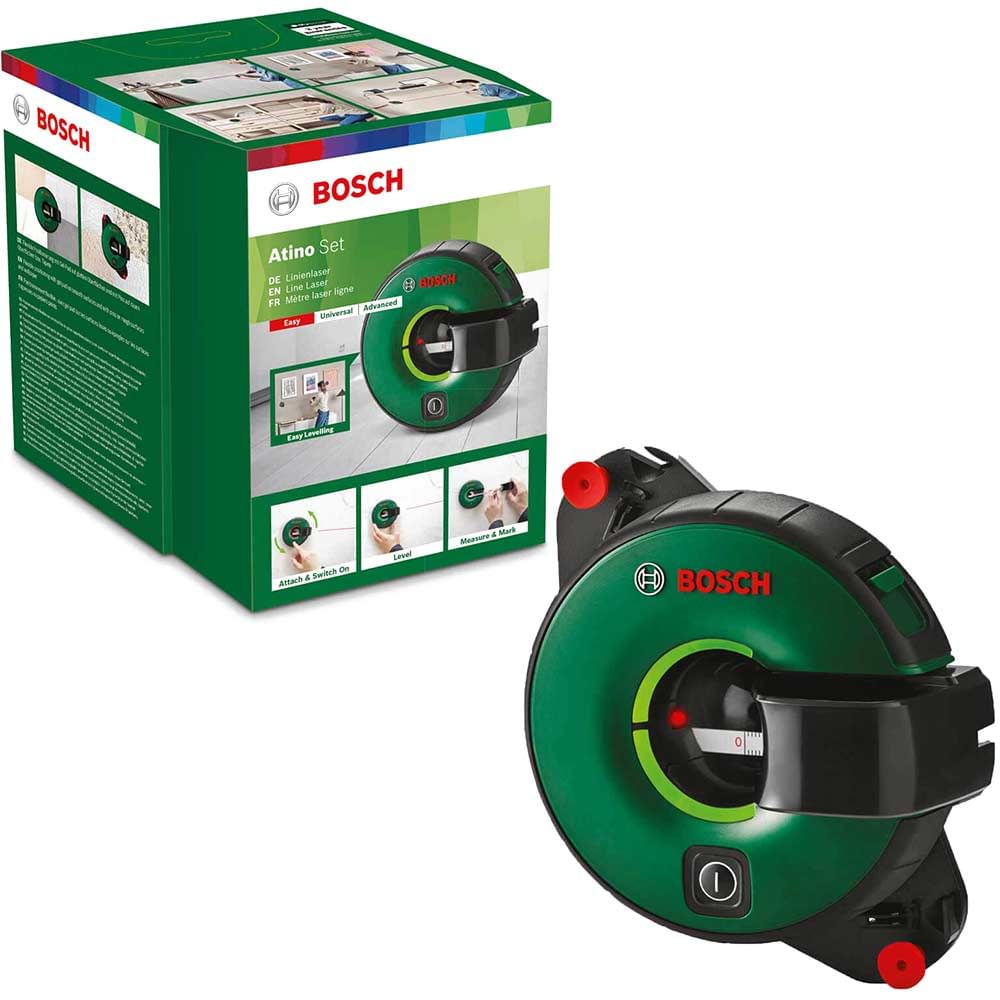

Bosch ATINO Line Laser Level with Measuring Tape Set

On smooth surfaces such as tiles, wood, marble or concrete-look finishes, the line laser simply attaches to the wall with a reusable gel pad. To do this, remove the protective cap and press the tool onto the wall at the desired height. For walls with a rough surface, simply replace the gel pad with the pin adaptor plate, which holds the Atino in place at the desired position with two small pins. Then switch on the line laser with its one-button operation and turn the softgrip-coated housing in the desired direction until the laser line is properly levelled. To enable precise marking of the first reference point, the Atino is equipped with a marking hole in the center of the device. Using the pull-out tape measure, all other markings can then be made along the laser line up to a distance of 1.5 meters. This allows you to position anything from wall mirrors to curtain poles or TV mounts both quickly and accurately.

This boxed set version of the Atino includes an additional six gel pads.

Specifications
• Working Range of Laser/Tape Measure: 1.7/1.5 m
• Laser Type: 630 ? 650 Nm
• Laser Class: 2
• Number of Laser Lines: 1
• Leveling Accuracy of the Visible Laser Line: ±0.3°
• Leveling Directions: 0°, 90°, 180°, 270°
• Power Supply: 1 x 1.5 V (AA) battery
• Dimensions (length x width x height): 124 x 115 x 62 mm
• Weight (including batteries): 260 g

Features and Benefits
• Unique levelling tool from the Bosch DIY range
• Easy, do-it-yourself alignment: Position objects straight without the aid of another person
• Sticks to various wall surfaces using either a gel pad or pins
• Laser line and tape measure for precise marking at the same height
• Powered by a standard AA battery
• Includes six gel pads and fixing pins

Contents
• ATINO Line Laser Level with Integrated Tape Measure
• Fixing Pins
• Gel Pads (x6)
