Einhell TE-SM 8 L Dual Bevel Sliding Compound Mitre Saw 216mm

The TE-SM 8 L is a dual bevel sliding mitre saw which can cut through materials up to 305mm wide in a single pass. Intended for more ambitious DIY projects, it comes with two material supports, a workpiece clamp, 216mm saw blade and a dust bag which can instead be substituted with a dust hose for direct extraction into a suitable vacuum cleaner or dust extractor.

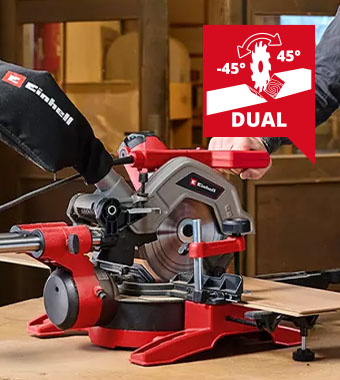

For quick and convenient alignment of the cutting line, the TE-SM 8 L has a laser guide and is fitted with snap-in position markers for cutting all the most commonly required angles. The head can be tilted up to 45° on the left or right and the turntable can be rotated up to 47° in either direction. To enable trenches and similar cuts, there is a depth stop which prevents the blade from descending all the way down and therefore allows grooves to be cut out by sliding it through the material.

The saw comes with a 48 tooth blade which can be easily changed thanks to an easily accessible spindle lock on the machine.

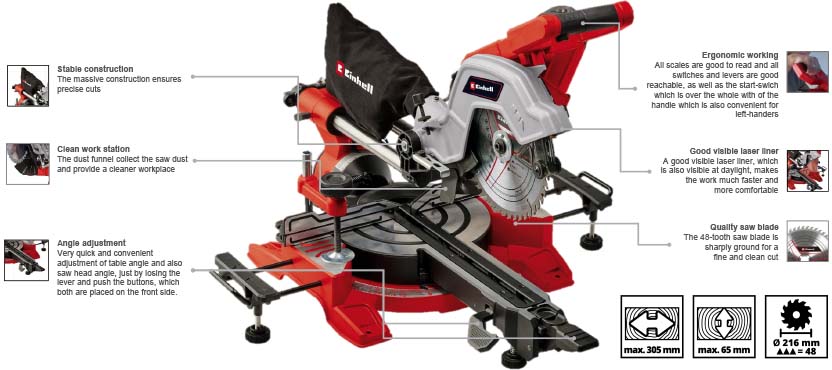

Features and Benefits
• Dual bevel: head can be tilted to the left and right
• Turntable with snap-in positions at the momet common angles
• Sliding action and depth stop to limit cutting depth (e.g for making grooves)
• Laser cutting line for accurate positioning
• Clearly visible angle scales
• Easily accessible spindle lock for blade changes
• Chip collector behind the blade helps to ensure more efiicient dust collection
• Dust port adaptor for connecting a dust extractor or vacuum cleaner
• Material supports for propping up longer workpieces
• Material clamp for fastening material in position before cutting

Specifications
• Voltage: 240v UK Mains
• Wattage: 1800 W
• Saw Blade Diameter: 216mm
• Bore Diameter: 30mm
• Max Cutting Depth 45° x 45°: 35mm
• Max Cutting Depth 90° x 90°: 65mm
• Max Cutting Width 45° x 45°: 215mm
• Max Cutting Width 90° x 90°: 305mm
• Machine Weight: 13.25kg

Contents
• TE-SM 8 L Dual Bevel Sliding Compound Mitre Saw 216mm 240v
• 48 Tooth Saw Blade
• Material Supports (x2)
• Material Clamp
• Dust Bag
