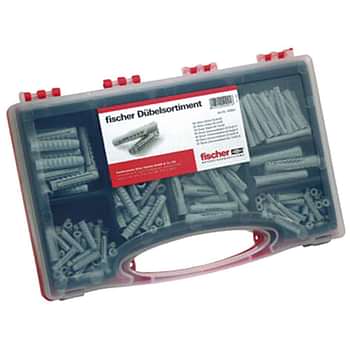

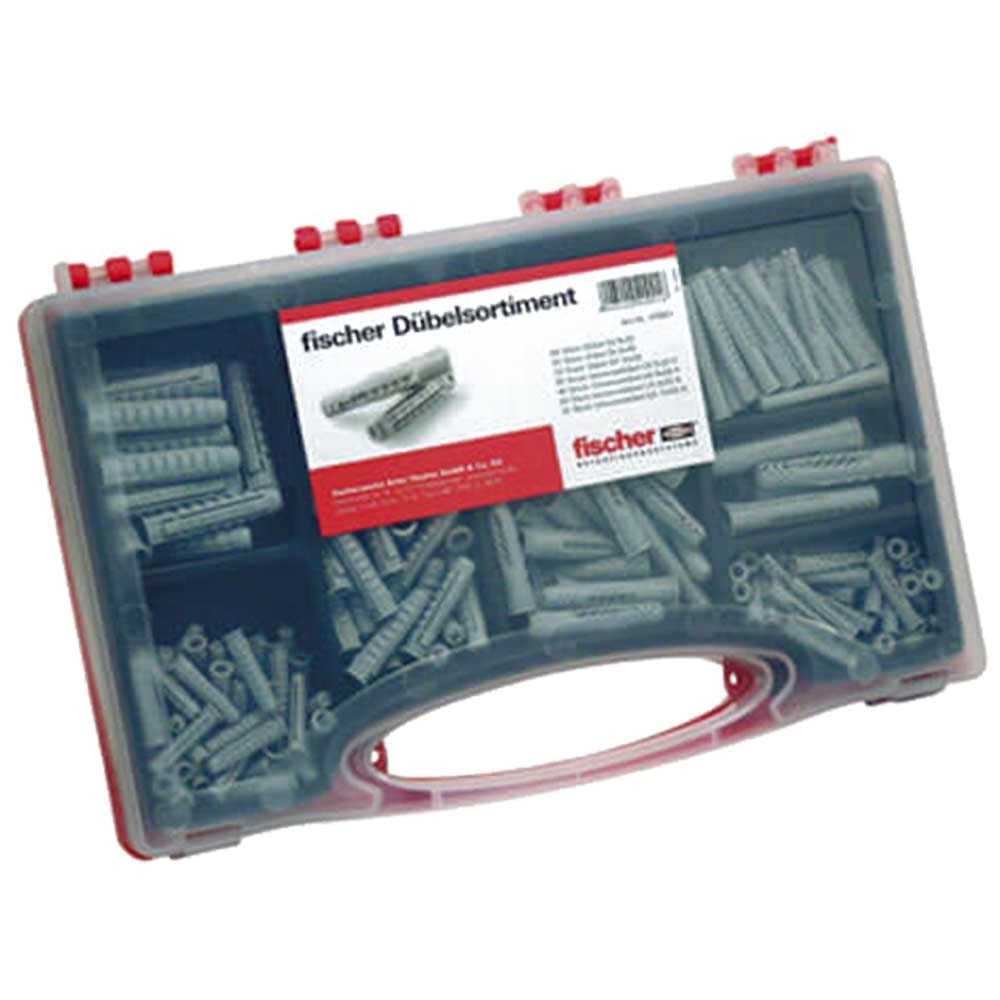

Fischer SX/UX Wall Plug Selection Assortment Box

Fischer SX/UX Wall Plug Selection Assortment Box suitable for most modern substrates.

SX Plug Advantages / Benefits
• 4-way expansion form lock guarantees highest grip
• Anti-rotation lugs stop the plug rotating in the drill hole
• The wide neck is subject to no expansion pressure and prevents surface damage to tiles and plaster
• Simple and quick push-through installation reduces installation time
• Integrated co-rotation lock enables - with pre-assembled screw - push-through installation
• The fixing´s collar prevents it slipping deeper into the drilled hole
• Temperature-resistant from -40° to +80°C
• The plug's geometry allows the use of wood and chipboard screws between 6mm and 10mm

UX Plug Advantages / Benefits
• The unique design enables use in almost all building materials
• Diagonal connection ridges for optimum screw guidance
• New saw-tooth anti-rotation lock prevents the fixing rotating in the drill hole
• Can be used with wood and chipboard screws from 5mm to 10mm
• Integral drive-in lock enables - with pre-assembled screw - optimal push-through installation
• The collar of the UX R prevents it slipping into the drill hole

Installation Information
• The required screw length is given by the anchorage depth + the thickness of the fixture
• Push-through installation requires the largest possible screw diameter
• Drill only in a rotary motion (hammer switched off) in perforated and hollow bricks and aircrete
• For safety relevant applications under permanent tensile load, nylon plugs are not allowed. Therefore, nylon plugs may not be used for suspensions from ceiling like lightnings.

Contents
• 60 x SX 6x30 (substrate solid material)
• 50 x SX 8x40 (substrate solid material)
• 20 x SX 10x50 (substrate solid material)
• 60 x UX 5x30R (Universal)
• 60 x UX 6x50R (Universal)
• 50 x UX 8x50R (Universal)
• 10 x UX 10x60R (Universal)
