Trend CRAFTPRO Ogee Mould Bearing Guided Router Cutter

This Trend CRAFTPRO Ogee Mould Bearing Guided Router Cutter features a 17.5mm diameter cut with a 9.5mm bearing diameter and a 1/4" shank, making it the larger of the two available sizes and well suited to producing bolder, more prominent ogee moulding profiles on furniture, cabinet doors, and decorative joinery work.

The bearing-guided design ensures the cutter tracks smoothly along the workpiece edge, delivering clean, repeatable results with minimal effort. This variant is particularly useful where a wider, more pronounced decorative moulding is desired, adding character and a traditional finish to your projects.

As with all variants in this range, this cutter is supplied with an extra ½ inch bearing, allowing you to easily remove the lower quirk for a cleaner profile variation when needed.

Features and Benefits:
• Larger 17.5mm diameter cut ideal for bolder ogee moulding profiles
• Bearing-guided for consistent, controlled edge following
• Extra ½ inch bearing included to allow removal of the lower quirk
• CRAFTPRO precision construction for reliable, long-lasting performance
• Compatible with standard 1/4" shank routers

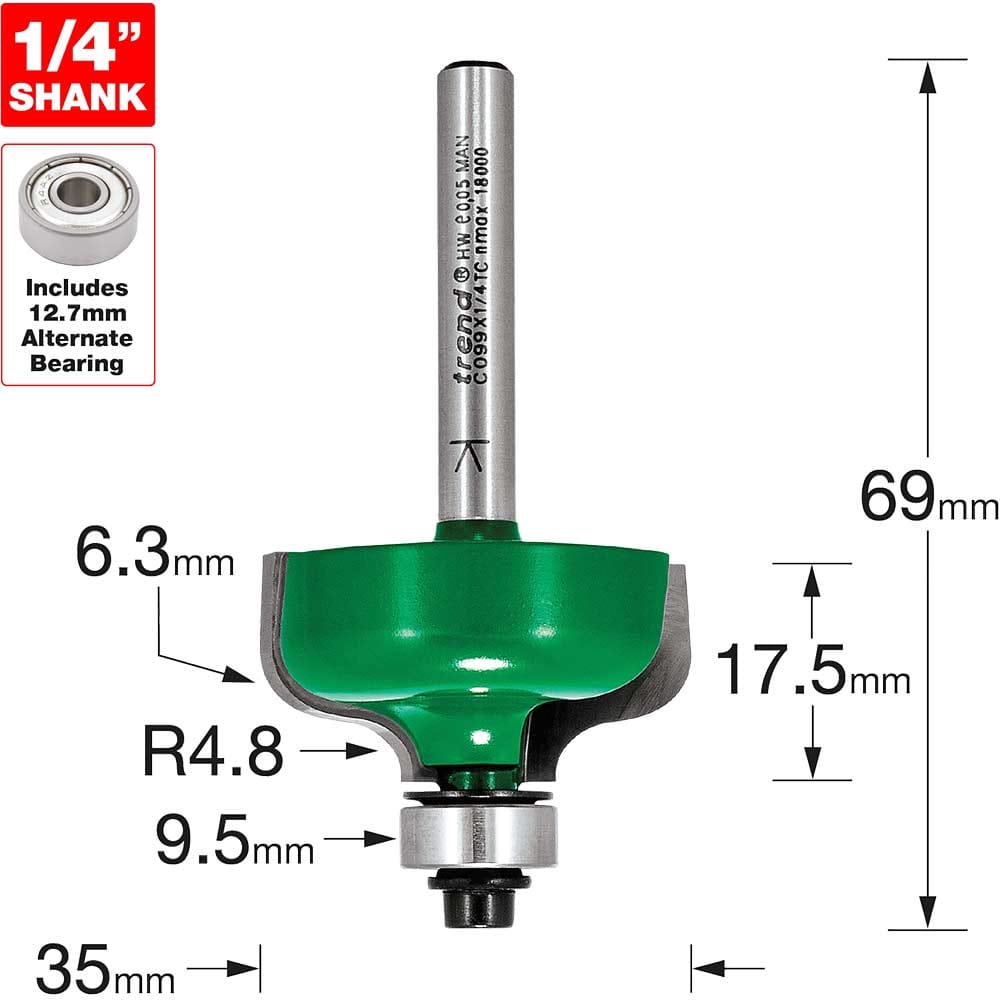

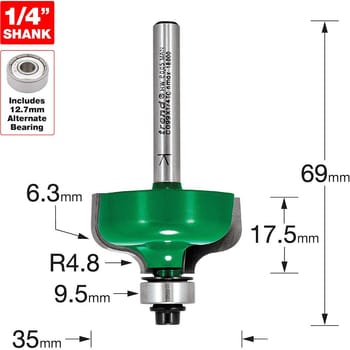

Specifications:
Diameter Cut: 17.5mm
Cut Length: 9.5mm
Shank Diameter: 1/4"
Cut Length Metric: 17.5
Cut Length Imperial: 11/16
Overall Length Metric: 69
Bearing Dia Metric: 9.5
Bearing Dia Imperial: 3/8
Radius 1 Metric: 6.3
Radius 2 Metric: 4.8
