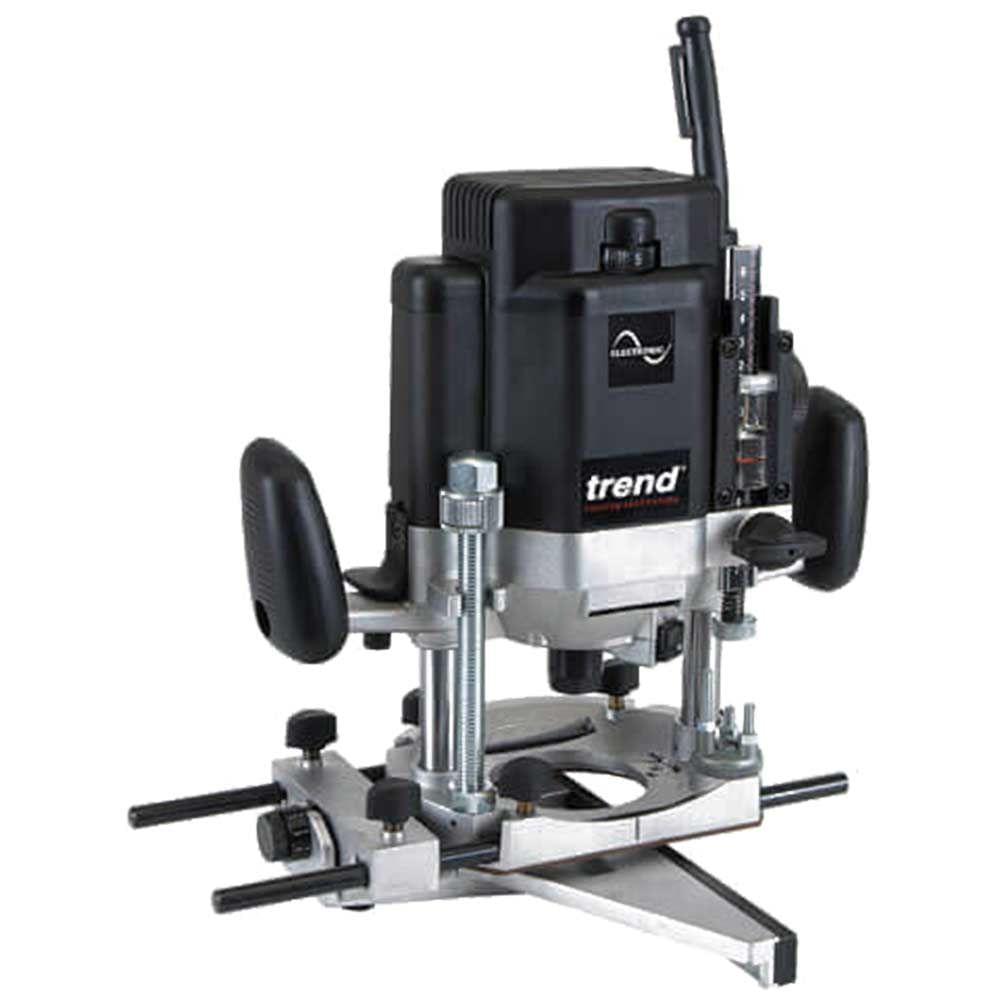

Trend T10EK 1/2 Plunge Router

Ideal for use by the tradesman in the workshop or on site. Extend the versatility of the T10 router with an extensive range of compatible accessories and jigs. For the full list, click here. Electronic full wave variable control of spindle speed under load for a fine finish on all types of material. Soft start eliminates sudden movement of machine on start-up. Two column precision base with large phosphor bronze bushes for plunging accuracy. Spindle lock and hex collet nut results in easy cutter changes with the 22mm spanner supplied. Adjustable twin rod parallel side-fence guide with integral micro-adjuster for straight edge work. Precision machined one-piece multi-slit collet for fail-safe grip of cutter shank. 3-position revolving depth stop for fast adjustable settings. Adjustable inner plate for guide bush accuracy. Three year extended warranty with online registration (UK and Eire only). For UK & Eire sale only.

Specifications
• Rating=Professional/Trade
• Voltage=110 or 230 volt
• Plunge stroke=0-80 mm
• Power input=2000 watt
• Power ampage=9.6 amp
• Standard collet dia.=1/2 inch
• No load speeds=8-20000rpm
• Dust spout size ID=35 mm
• Guide bush dia. Supplied=30 mm
• Cutter dia. Max.=50 mm
• Base recess size=65 mm
• Rod diameter=10 mm
• Rod length=360 mm
• Rod centres=100 mm
• Other collet dia.=6 mm, 1/4", 8 mm, 3/8", 10 mm, 12 mm
• Weight=6.2 kg
• Sound pressure Lpa=93.0 dB(A)1
• Acoustic pressure Lwa=102.0 dB(A)2
• Hand arm vibration=<2.5 m/s2
• End of life=See below for Environmental Policy link

Contents
• 1 x 1/2" Collet
• 1 x 35mm Clip-in Dust Spout
• 1 x 30mm Guide Bush
• 1 x Side-fence with Micro Adjuster
• 1 x Storage Case
