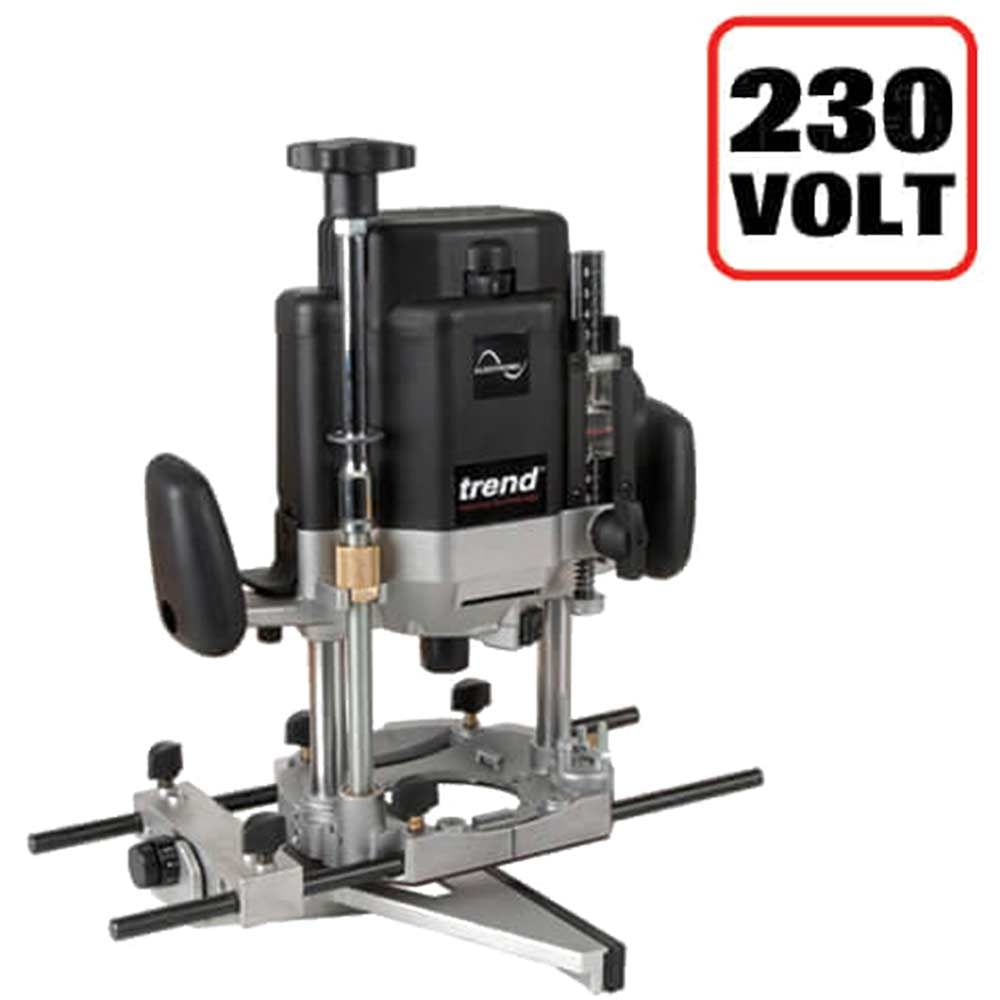

Trend T11EK 1/2 Plunge Router

With built in Quick Raiser fine adjuster. Electronic full wave variable control of spindle speed under load for a fine finish on all types of material. Soft start eliminates sudden movement of machine on start up. Two column precision base with large phosphor bronze bushes for plunging accuracy. Spindle lock and hex collet nut results in easy cutter changes with the 22mm spanner supplied. Adjustable twin rod parallel side-fence guide with integral micro-adjuster for straight edge work. Precision machined one-piece multi-slit collet for fail-safe grip of cutter shank. 3-position revolving depth stop for fast adjustable settings. Adjustable inner plate for guide bush accuracy. Router fine height adjuster for above and below height adjustment. One revolution of the handle equals 1.5mm. Three quick release recesses in base to fit tables in conjunction with optional Quick Release Kit. Fittings for optional Clamp Guide System Kit. Extra large base aperture for large cutters. Quick release dust spout. Three year extended warranty with online registration (UK and Eire only). For UK & Eire sale only.

Specifications
• Rating=Professional/Trade
• Voltage=110 or 230 volt
• Plunge stroke=0-80 mm
• Power input=2000 watt
• Power ampage=9.6 amp
• Standard collet dia.=1/2"
• No load speeds=8-20000 rpm
• Dust spout size ID=35 mm
• Guide bush dia. Supplied=30 mm
• Rod diameter=10 mm
• Rod length=360 mm
• Rod centres=110 mm
• Cutter dia. Max. plunge/table=70/86 mm
• Other collet dia.=6 mm, 1/4", 8 mm, 3/8", 10 mm & 12 mm
• Weight=6.2 kg
• Sound pressure Lpa=93.0 dB(A)1
• Acoustic pressure Lwa=102.0 dB(A)2
• Hand arm vibration=<2.5 m/s2
• Quick raiser socket A/F=12 mm
• End of life=See below for Environmental Policy link
• Overall height of Router fully extended - 300mm

Contents
• 1 x 1/2" Collet
• 1 x Fine Height Adjuster
• 1 x 30mm Guide Bush
• 1 x Inner Plate
• 1 x Line up Pin
• 1 x 35mm Clip-in Dust Spout
• 1 x Line up pin
• 1 x Side-fence with Micro Adjuster
• 1 x Storage Case
