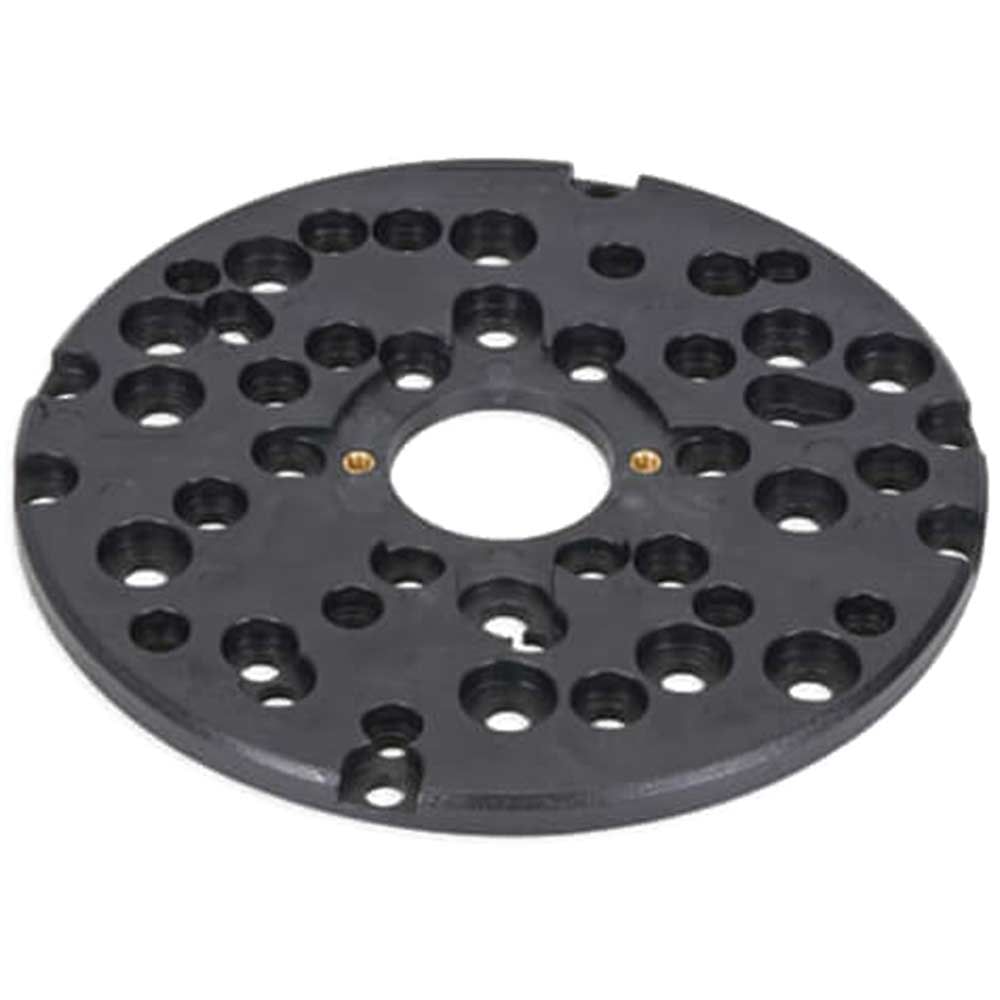

Trend Universal Unibase Router Subbase
The Unibase enables routers with non-standard guide bush fittings to accept the range of Trend guide bushes. It will fit directly to most routers.
Line-up pin used with a 16mm plastic bush to ensure concentricity of the cutter to the guide bush when fitting the sub-base.
Suits collet sizes 1/4 inch, 8mm, 12mm and 1/2 inch.
Instructions for fitting
The line-up pin fit into the collet and is plunged through the router base. The line-up bush is fitted into the Unibase and secured. This is then placed over the line-up pin and rotated in order to line up the fixing holes. The Unibase screws are tightened and then the line-up bush can be replaced with any choice of Trend guide bushes. These range from 10mm up to 30mm (GB10 - GB32). For larger diameter cutters a 40mm guide bush (GB40) is available.
Ideal for hinge jig and lock jig
Contents:
1 x Line up pin 8 & 12 mm shank
1 x Guide bush 16 mm
1 x Fixing screw pack
Specifications
More Help
If you require more information or assistance with this product please consult the links below :
There is a Trend manufacturer warranty for this product which covers all manufacturing defects for the normal lifetime of the tool but does not cover wear and tear or damaged cause by misuse. This does not affect your statutory rights.
Get help regarding Trend Universal Unibase Router Subbase
For any technical enquiries relating to this product it is best to call the manufacturer, Trend, direct on 01923249911.
For any other queries relating to ordering this item, stock availability, existing orders or returning faulty items etc please contact us at Tooled-Up at sales@tooled-up.com or call on 020 8805 3535.
