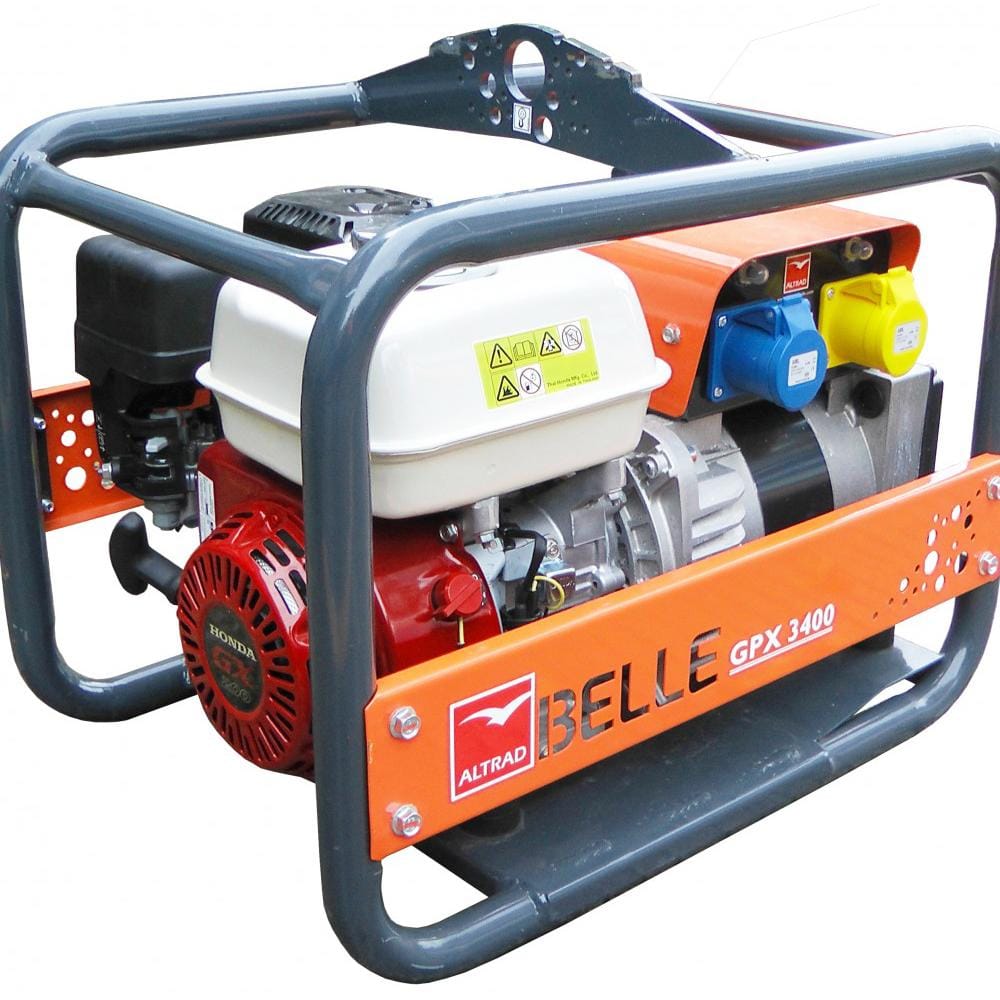

Belle Altrad GPX3400 Honda GX200 Petrol Generator
The Belle Altrad GPX3400 is a professional petrol generator built for demanding site and hire environments, powered by a reliable Honda GX200 engine.
Engineered as part of Belle Altrad's proven GPX range, this open-frame generator is designed to withstand the rigours of daily use on construction sites and within hire fleets. The Honda GX200 petrol engine delivers consistent power output with recoil start, while both the engine and heavy-duty alternator are housed within a large-diameter steel frame that provides robust protection against impact and site damage. A rental-proof steel electrical enclosure and integrated side-impact protection further enhance durability in demanding conditions.
Electrical safety is comprehensively addressed, with full overload protection, system breakers for both 110V and 230V circuits, and a metal-covered fuse box. Selectable 110V or 230V output gives contractors the flexibility to power a wide range of site equipment, while durable screw-in sockets ensure secure, long-lasting connections.
The GPX3400 is equally well considered when it comes to handling and logistics. A patent-pending stackable frame with single-point lifting reduces manual handling risks and simplifies transport and storage. Oversized four-point anti-vibration mounts protect internal components and improve operational stability, and a wheeled version is also available for easy movement around site.
Suitable for professional tradespeople, hire companies, and industrial operators who need a dependable, site-ready power source.
Features and Benefits:
• Honda GX200 Petrol Engine - Professional-grade engine delivering reliable output and long service life
• Heavy-Duty Alternator - High-quality alternator designed for consistent performance and durability
• Robust Open Frame Design - Large-diameter steel frame with integrated engine and alternator side-impact protection
• Full Electrical Protection - Overload protection, system breakers, and metal-covered fuse box for enhanced site safety
• Selectable Voltage Output - Switchable 110V or 230V supply for flexible site use
• Stackable Frame with Single-Point Lift - Reduces manual handling risk and improves transport and storage efficiency
• Anti-Vibration Mounts - Oversized four-point mounts minimise vibration and reduce component wear
• Hire-Ready Construction - Steel electrical enclosure specifically designed to withstand rental and hire environments
• Low Oil Cut-Off - Automatically protects the engine from damage in low oil conditions
Specifications:
Engine Power at 3000rpm: 3.0hp / 2.2kW
Rating at 0.8 p/f: 3.4kVA
PRP Rating: 2.7kW
COP Rating (Continuous): 2.5kVA
Sockets: 1 x 110V 16A, 1 x 240V 16A, 1 x 110V 32A
Fuel Tank Capacity: 3.1L
Dimensions (W x L x H): 432 x 618 x 515mm
Weight: 47kg
Petrol Engines
It is important to read all instructions regarding petrol products. 4 Stroke engines require oil and some machines are supplied dry (No oil to start with). Running a 4 stroke petrol machine without oil will result in the engine seizing and is not covered under warranty.
2 Stroke engines will need to have a mix of oil in the petrol this is normally 1 part oil to 50 parts petrol but not always, again please read the instructions supplied with your machine. Petrol engines do require more maintenance than electric engines but if reguarly maintained they will normally give many years of use.
Specifications
More Help
If you require more information or assistance with this product please consult the links below :
There is a Belle manufacturer warranty for this product which covers all manufacturing defects for the normal lifetime of the tool but does not cover wear and tear or damaged cause by misuse. This does not affect your statutory rights.
