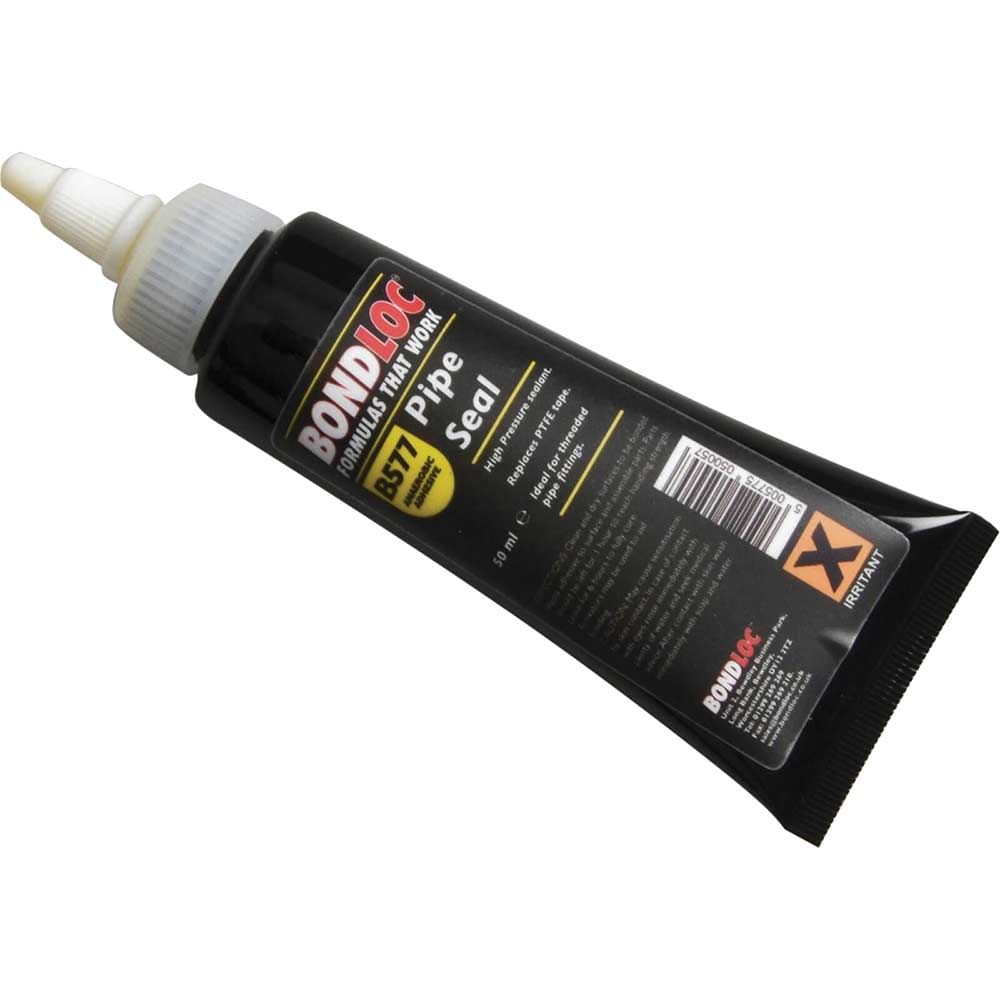

Bondloc B577 Fast Curing High Pressure Teflon Pipe Sealant

The Bondloc B577 is a fast-curing anaerobic pipe sealant designed for sealing threaded connections in plumbing and pipework systems. This high viscosity thixotropic gel paste provides rapid pressure resistance, making it ideal for professional installations requiring immediate service.

Using an advanced anaerobic curing system, B577 cures rapidly when in contact with metal in the absence of air. The sealant achieves an instant seal to 10 bar pressure, allowing for quick system testing and commissioning. When fully cured, it resists pressures up to 350 bar, providing reliable long-term performance in demanding applications.

The Teflon-enhanced formulation offers excellent chemical and solvent resistance, including ethanol, motor oil, unleaded petrol, acetone and brake fluid. This makes it suitable for sealing threaded connections carrying water, oil, gases and most common materials conveyed through pipework systems.

The yellow gel paste format ensures easy application and excellent gap-filling properties, accommodating thread tolerances from 0.05mm to 0.4mm. With a maximum operating temperature of +150°C, B577 is suitable for both hot and cold water systems, heating installations and industrial pipework. Note that this product is not suitable for oxygen systems.

Features and Benefits:
• Rapid curing for faster installation and reduced downtime
• High pressure resistance up to 350 bar when fully cured
• Excellent chemical resistance for versatile applications
• Thixotropic gel paste prevents dripping and migration during application
• Seals instantly to 10 bar for immediate pressure testing

Specifications:
Gasket Type: Pipe Seal
Size (ml): 50
Resin: Dimethacrylate
Colour: Yellow
Cure Speed with Activator: <10 minutes
Cure Speed without Activator: <15 mins @ 20°C
Viscosity: >50,000 cps
Gap Fill: 0.05mm to 0.4mm
Flash Point: >100°C
Shelf Life: 12 months @ 20°C
Specific Gravity: 1.09
Max. Operating Temperature: +150°C
Cured Performance:
Full Cure Time: 6-12 hours
Typical Breakaway Strength: >6 to <15 N/mm (2)
Prevailing Torque: >3 to <9 N/mm (2)
Static Shear Strength: >5 to <15 N/mm (2)
