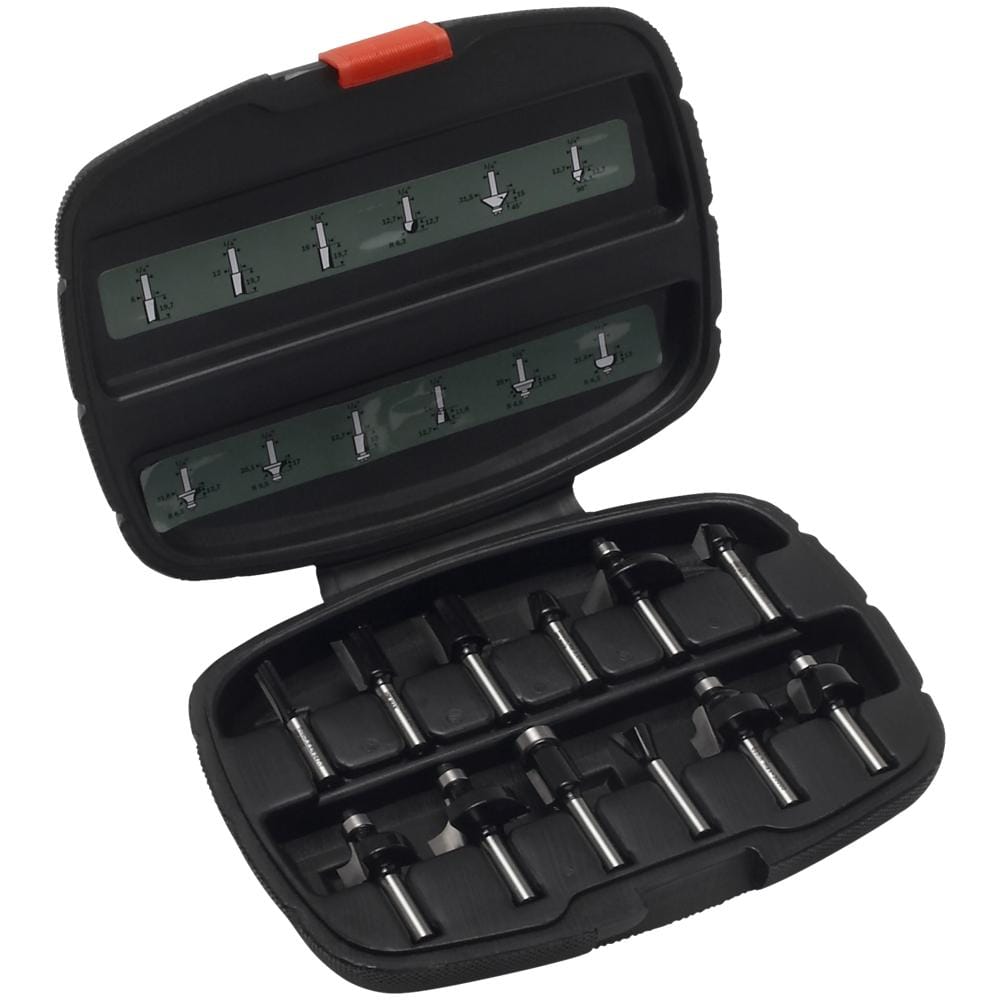

Bosch 12 Piece 1/4" Router Bit Set

The Bosch 12 Piece 1/4" Router Bit Set is a router cutter set designed for edge profiling, grooving, trimming and joint cutting. It brings together twelve commonly used profiles in one set, so carpenters, joiners and serious DIYers can cover a wide range of routing tasks without buying bits individually.

The set includes two ball bearing rounding over bits, a laminate trim bit, a chamfer bit and two core box bits. Three straight bits (6, 12 and 16 mm diameter), an edge forming bit, a V-groove bit and a dovetail bit complete the range.

It suits edge rounding and decorative edge work, trimming laminate, cutting grooves and flutes, and forming dovetail joints. The choice of profiles and sizes makes it a practical starting point for building a router bit collection, or a useful top-up for an existing one.

Features and Benefits:
• 12 bits in one set covering a range of common routing profiles
• Two rounding over bits with ball bearing for edge rounding
• Laminate trim bit for trimming laminate edges
• Three straight bits in 6, 12 and 16 mm diameters for grooving
• V-groove and dovetail bits for decorative grooves and jointing

Specifications:
Net Weight: 0.510 kg
Weight: 0.530 kg
Dimensions: 223.5 x 133.6 x 48.4 mm

Contents:
2 rounding over bits with ball bearing:
Ø 21.8 mm, R 6.3 mm, L 13.5 mm
Ø 28.1 mm, R 9.5 mm, L 16.5 mm
1 laminate trim bit: Ø 12.7 mm, L 13 mm
1 chamfer bit: Ø 31.5 mm, angle 45°, L 15 mm
2 core box bits:
Ø 12.7 mm, R 6.3 mm, L 12.7 mm
Ø 21.8 mm, R 6.3 mm, L 13 mm
3 straight bits: Ø 6 / 12 / 16 mm, L 19.7 mm
1 edge forming bit: Ø 25 mm, R 4.5 mm, L 16.3 mm
1 V-groove bit: Ø 12.7 mm, angle 90°, L 12.7 mm
1 dovetail bit: Ø 12.7 mm, angle 14°, L 11.8 mm
