DeWalt DCS520 54v XR Cordless FlexVolt Plunge Saw and Guide Rails Kit
This variant of the DeWalt DCS520 54v XR FlexVolt Plunge Saw and Guide Rails Kit is supplied without batteries or charger, making it the ideal choice for tradespeople who already own compatible DeWalt 54v XR FlexVolt batteries and chargers. It offers the best value entry point into the full kit for those already invested in the DeWalt FlexVolt platform.
Despite arriving body-only, this kit still includes the complete guide rail setup — twin 1500mm guide rails, quick clamps, a joining kit, and a guide rail carry bag — as well as a T-STAK stackable deep tool box. The DCS520 saw itself delivers all the same professional cutting performance, with its brushless motor, anti-kickback system, and 90% dust extraction capability when connected to an extractor.
Features and Benefits:
• Ideal for existing DeWalt FlexVolt battery platform users — no duplicate batteries
• 54v XR FlexVolt brushless motor — mains-equivalent power output
• Variable speed (2,500–4,200rpm) for versatile material cutting
• Parallel plunge for consistent hand positioning throughout the cut
• 42-tooth blade for accurate finishes with minimal laminate breakout
• Enclosed guard with up to 90% dust extraction
• Anti-kickback protection for safer, more controlled plunge cuts
• Twin 1500mm guide rails included for straight, accurate cuts
Specifications:
Batteries: No Batteries
Charger: No Battery Charger
Includes: T-STAK Stackable Deep Tool Box
No Load Speed: 2,500–4,200rpm
Blade Diameter: 165mm
Blade Bore: 20mm
Bevel Capacity: 47°
Max. Depth of Cut at 90°: 59mm
Max. Depth of Cut at 90° (with guide rails): 55mm
Max. Depth of Cut at 45°: 44mm
Max. Depth of Cut at 45° (with guide rails): 40mm
Weight: 4.7kg
Length: 303mm
Height: 265mm
Hand/Arm Vibration: 1.1m/s²
Uncertainty K1 (Vibration): 1.5m/s²
Sound Pressure: 82.2dB(A)
Sound Pressure Uncertainty: 2.9dB(A)
Sound Power: 93.2dB(A)
Sound Power Uncertainty: 2.9dB(A)

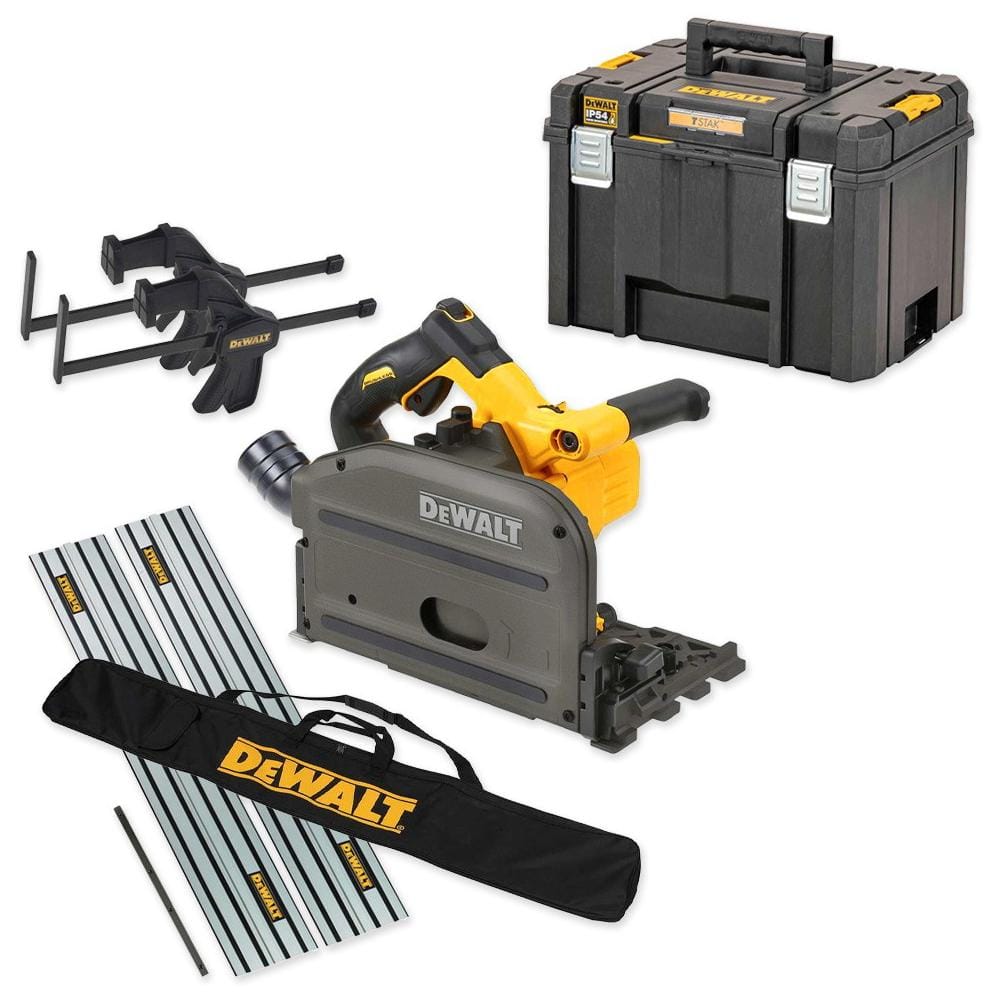

Contents:
DCS520 54v XR Cordless Brushless FlexVolt Plunge Saw
42 Tooth Precision Circular Saw Blade
Plunge Saw Guide Rail 1500mm (x2)
DE6292 Joining Kit for DeWalt Guide Rails
DWS5025 Guide Rail Carry Bag 1500mm
DWS5026 Quick Clamps for Guide Rails
T-STAK Stackable Deep Tool Box
Battery AH Explained
The best way to describe battery amp hour is that this is effectively the size of your fuel tank, the more amp hours your battery has then the longer the battery will last between charges. More amp hours does not increase the power of a given tool.
Battery Voltage Explained
A tool with a higher voltage than another is a bit like choosing an engine in a car, the higher voltage will generally mean higher power & performance. As with cars though a bigger engine does not always translate to better performance so it is important to compare the specifications of tools at different voltages between different manufacturers.
DeWalt Flexvolt
DeWalt 54v Flexvolt is the new DeWalt dual voltage system. A 54v Tool can only use 54v batteries, however your new DeWalt 54v Flexvolt battery is fully compatible with all DeWalt 18v Li-ion Power Tools as it is capable of stepping into 18v mode for this purpose.
So upgrading to 54v means you can still make use of your 18v power tool range. 54v batteries are currently available in:
6ah (18v mode) / 2ah (54v mode)
9ah (18v mode) / 3ah (54v mode)
12ah (18v mode) / 4ah (54v mode)
The DeWalt Flexvolt system opens the door to types of tool becoming available in cordless that would never have been considered before such as Table Saws.
