DeWalt DCS520 54v XR Cordless FlexVolt Plunge Saw and Guide Rails Kit
This variant of the DeWalt DCS520 54v XR FlexVolt Plunge Saw and Guide Rails Kit includes 1 x 6Ah Li-ion FlexVolt battery and a DCB116 battery charger, giving you everything needed to get straight to work on site. The 6Ah battery offers an excellent balance of runtime and weight, making it a practical all-day choice for joinery, flooring, and general cutting tasks.
The DCS520's brushless motor delivers consistent cutting power across laminates, hardwoods, and sheet materials, while the enclosed guard and 90% dust extraction capability keep your workspace clean. Twin 1500mm guide rails, quick clamps, a joining kit, and a guide rail carry bag are all included, alongside a T-STAK stackable deep tool box for convenient storage and transport.
Features and Benefits:
• 54v XR FlexVolt brushless motor — consistent power under heavy loads
• Variable speed (2,500–4,200rpm) for cutting a wide range of materials
• Parallel plunge for smooth, controlled hand positioning
• 42-tooth blade for fine finishes with minimal laminate breakout
• Enclosed guard with up to 90% dust extraction
• Anti-kickback protection for safer plunge cuts
• Twin 1500mm guide rails included for accurate straight cuts
Specifications:
Batteries: 1 x 6Ah Li-ion
Charger: DCB116 XR Li-Ion 18v–54v Battery Charger
Includes: T-STAK Stackable Deep Tool Box
No Load Speed: 2,500–4,200rpm
Blade Diameter: 165mm
Blade Bore: 20mm
Bevel Capacity: 47°
Max. Depth of Cut at 90°: 59mm
Max. Depth of Cut at 90° (with guide rails): 55mm
Max. Depth of Cut at 45°: 44mm
Max. Depth of Cut at 45° (with guide rails): 40mm
Weight: 4.7kg
Length: 303mm
Height: 265mm
Hand/Arm Vibration: 1.1m/s²
Uncertainty K1 (Vibration): 1.5m/s²
Sound Pressure: 82.2dB(A)
Sound Pressure Uncertainty: 2.9dB(A)
Sound Power: 93.2dB(A)
Sound Power Uncertainty: 2.9dB(A)

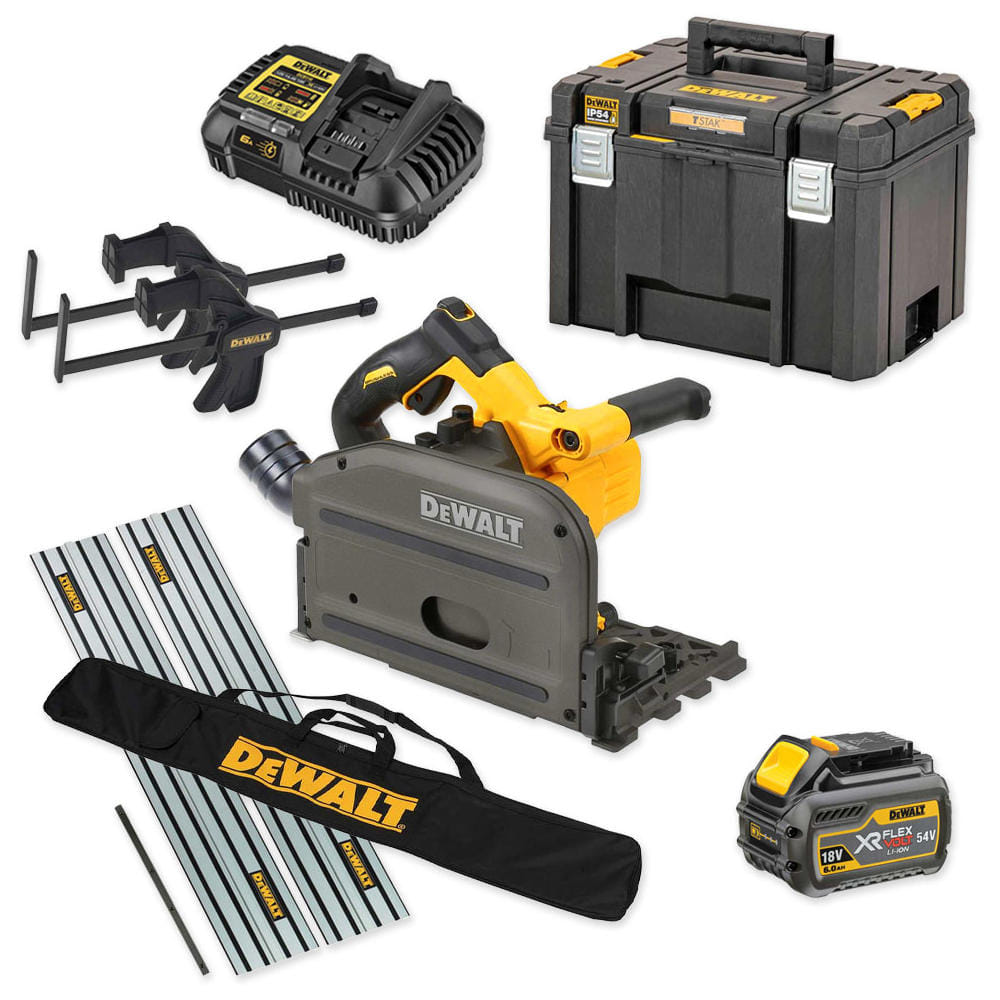

Contents:
DCS520 54v XR Cordless Brushless FlexVolt Plunge Saw
42 Tooth Precision Circular Saw Blade
Plunge Saw Guide Rail 1500mm (x2)
DE6292 Joining Kit for DeWalt Guide Rails
DWS5025 Guide Rail Carry Bag 1500mm
DWS5026 Quick Clamps for Guide Rails
DCB546 54v XR Cordless FlexVolt Li-ion 6Ah Battery
DCB116 XR Cordless Li-Ion 18v–54v Battery Charger
T-STAK Stackable Deep Tool Box
Battery AH Explained
The best way to describe battery amp hour is that this is effectively the size of your fuel tank, the more amp hours your battery has then the longer the battery will last between charges. More amp hours does not increase the power of a given tool.
Battery Voltage Explained
A tool with a higher voltage than another is a bit like choosing an engine in a car, the higher voltage will generally mean higher power & performance. As with cars though a bigger engine does not always translate to better performance so it is important to compare the specifications of tools at different voltages between different manufacturers.
DeWalt Flexvolt
DeWalt 54v Flexvolt is the new DeWalt dual voltage system. A 54v Tool can only use 54v batteries, however your new DeWalt 54v Flexvolt battery is fully compatible with all DeWalt 18v Li-ion Power Tools as it is capable of stepping into 18v mode for this purpose.
So upgrading to 54v means you can still make use of your 18v power tool range. 54v batteries are currently available in:
6ah (18v mode) / 2ah (54v mode)
9ah (18v mode) / 3ah (54v mode)
12ah (18v mode) / 4ah (54v mode)
The DeWalt Flexvolt system opens the door to types of tool becoming available in cordless that would never have been considered before such as Table Saws.
