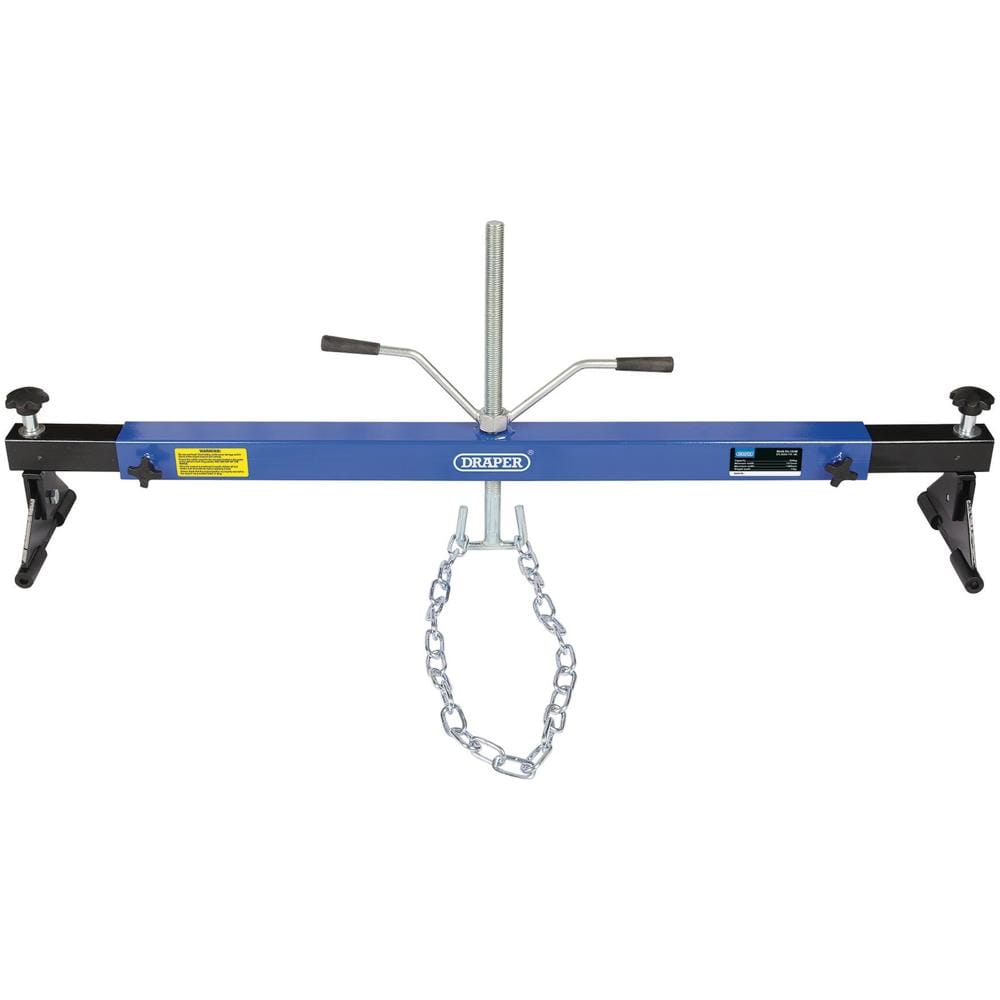

Draper Engine and Gearbox Support

The Draper Engine and Gearbox Support with a 300kg capacity is ideal for standard automotive repair work on cars and light commercial vehicles. This engine support beam is specifically designed to position the engine securely when replacing engine mounts, whilst also proving invaluable for aiding the removal of transmission components and gearboxes.

The 300kg capacity makes this support suitable for typical passenger vehicle engines and smaller commercial applications. Adjustable outer extension clamps feature protective rubber feet to prevent damage to paintwork during use, ensuring your vehicle remains unmarked throughout the repair process. Supplied with one chain for secure engine support.

Features and Benefits:
• 300kg capacity for standard automotive applications
• Adjustable outer extension clamps with rubber feet
• Designed to position the engine when replacing the engine mounts
• Also suitable for aiding the removal of transmission components and gearboxes
• Compatible with most cars and light commercial vehicles
• Supplied with one chain

Specifications:
Min width: 1,015mm
Max width: 1,380mm
Adjustable screw height: 0-305mm
Overall beam length: 990mm
Chain quantity: 1
Weight: 15kg
Capacity: 300kg

Contents:
1 x Chain
