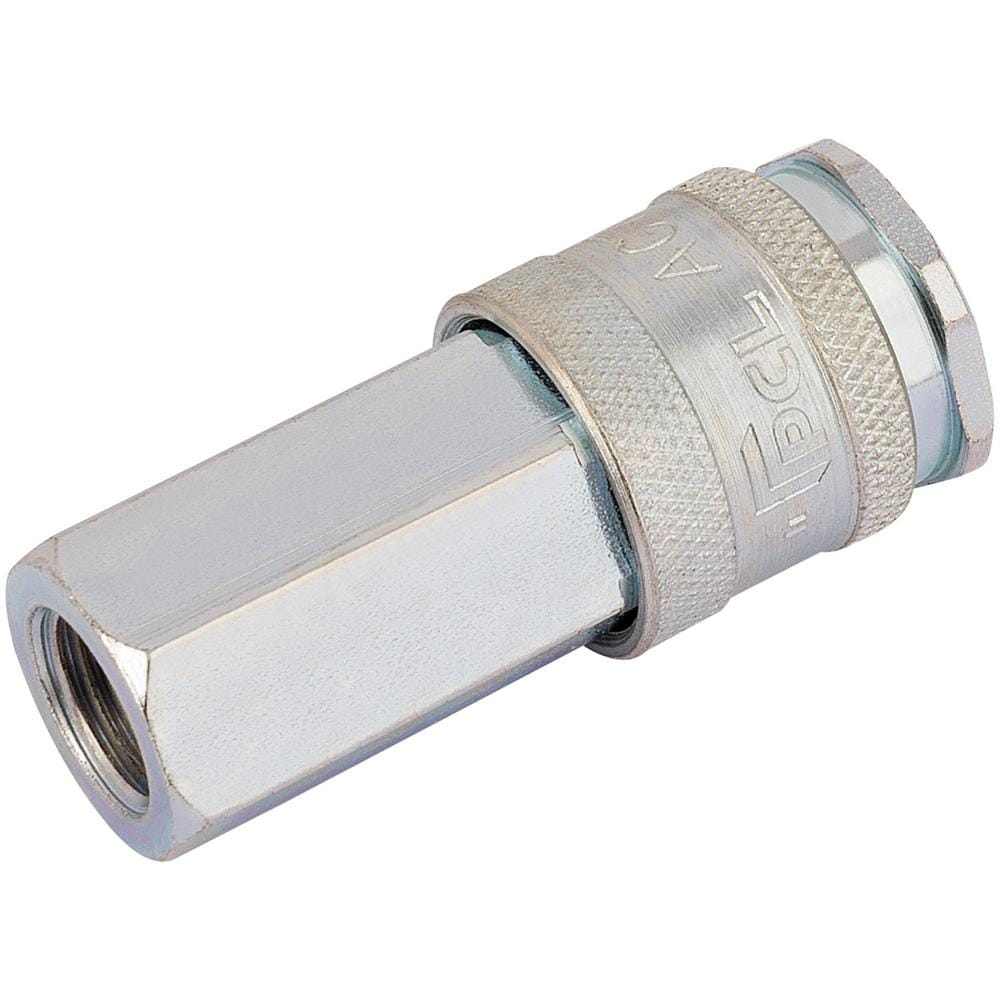

Draper Euro Air Line Coupling Female Thread

This 1/4" BSP female thread coupling is ideal for smaller air tools and light to medium-duty pneumatic equipment. The compact 1/4" BSP parallel thread size makes it perfect for connecting air line hoses to spray guns, inflation equipment, brad nailers, and other compact air tools where space may be limited.

Constructed from hard-wearing steel with zinc passivation, this coupling provides excellent corrosion resistance for long-term reliability. Its high-flow design ensures optimal air delivery despite the smaller thread size, whilst the robust construction means it's been tested to over 1 million cycles. The coupling connects seamlessly to most popular industrial and European adaptor profiles including Cejn and Rectus systems, offering excellent versatility in the workshop.

Features and Benefits:
• 1/4" BSP parallel thread for compact air tools
• Heavy-duty steel construction with zinc passivation
• Tested to over 1 million cycles
• Compatible with Cejn, Rectus and other European profiles
• High flow design for efficient air delivery

Specifications:
Max Burst Pressure: 2030psi (140bar)
Max Working Pressure: 500psi (35bar)
Nominal Flow Diameter: 7.4mm
Temperature Range: -40 to 100°C
Test Pressure: 725psi (50bar)
Pressure Drop: 0.5bar = 78cfm (2200L/min)

Contents:
1 x 1/4" BSP Parallel Euro Coupling Female Thread (Sold Loose)
