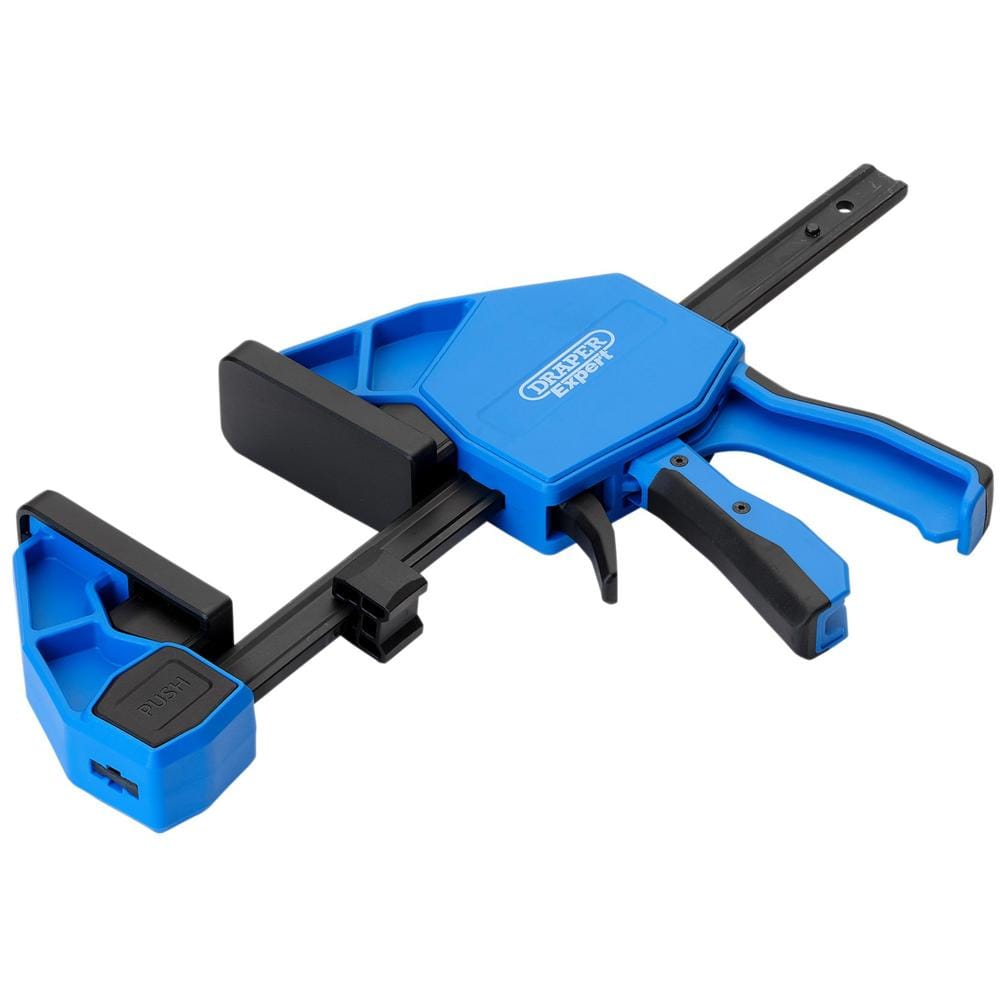

Draper Expert Heavy Duty Bar Clamp

The Draper Expert Heavy Duty Bar Clamp with 150mm capacity and 90mm throat depth is the compact choice for smaller workpieces and confined spaces. This size is particularly suited for detailed joinery work, small assemblies, and applications where manoeuvrability is essential.

Constructed from strong and durable engineering grade plastic, it delivers up to 306kg of sustained clamping force whilst remaining lightweight and easy to handle. The robust I-Beam structure with C45 rail reduces unwanted bending, and TPU protective cushions prevent marking on delicate surfaces. One-handed operation is effortless thanks to the quick release trigger, and the quick change button allows instant conversion to a spreader. The long handle design provides excellent leverage for achieving higher pressures with minimal effort.

Features and Benefits:
• 150mm capacity with 90mm throat depth for compact applications
• Strong engineering grade plastic construction
• Up to 306kg sustained clamping force
• Robust I-Beam structure and C45 rail to reduce bending
• Quick release trigger for one-handed operation
• TPU protective cushions safeguard workpieces
• Converts to spreader with quick change button

Specifications:
Clamp capacity: 150mm
Clamping force: 306kg
Clamping depth: 90mm
Spread capacity: 203-380mm

Contents:
1 x Draper Expert Heavy Duty Bar Clamp, 150mm
