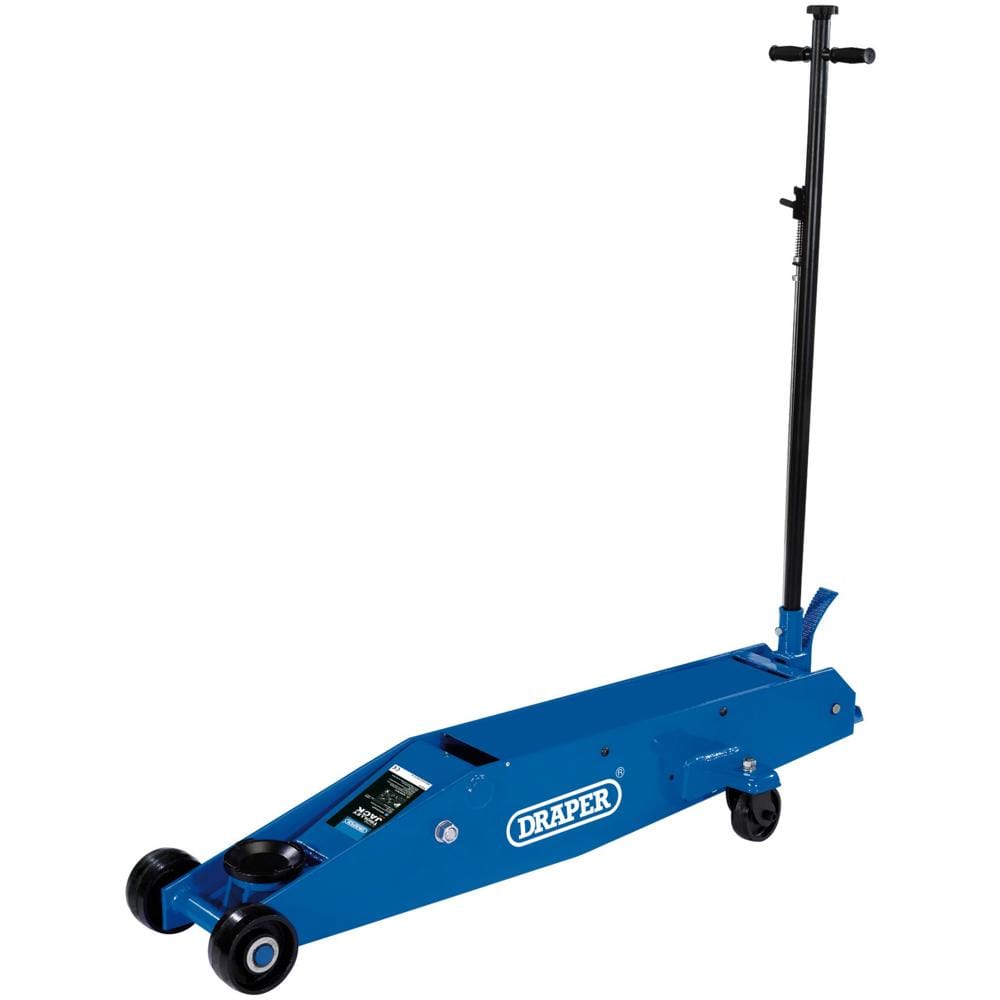

Draper Long Chassis Trolley Jack

The 10 Tonne Draper Long Chassis Trolley Jack is the heavy-duty solution for lifting commercial vehicles, light goods vehicles, and other substantial loads. This high-capacity model is designed for professional workshops, fleet maintenance operations, and commercial vehicle repair facilities where maximum lifting power is essential.

The long reach chassis provides the extended access required for larger vehicles with longer wheelbases, whilst the heavy-duty construction ensures stability when lifting substantial loads. The quick-lift foot pedal rapidly raises the large saddle, improving efficiency during high-volume operations. The handle can be locked in three positions for comfortable operation, whilst rear swivelling castors with toe plate deliver excellent manoeuvrability even with this substantial jack. The release valve prevents accidental lowering, providing critical safety when working with heavier vehicles.

Features and Benefits:
• 10 tonne lifting capacity for commercial vehicles
• Long reach chassis for extended access
• Quick-lift foot pedal for rapid operation
• Large saddle aids positioning
• Handle can be locked in three positions
• Release valve prevents accidental lowering
• Rear swivelling castors with toe plate
• One piece handle supplied

Specifications:
Capacity: 10 Tonne
Chassis length: 1,535mm
Handle length: 1,220mm
Max height: 570mm
Min height: 170mm
Weight: 125kg
Saddle diameter: 130mm

Contents:
1 x Long Chassis Trolley Jack, 10 Tonne
