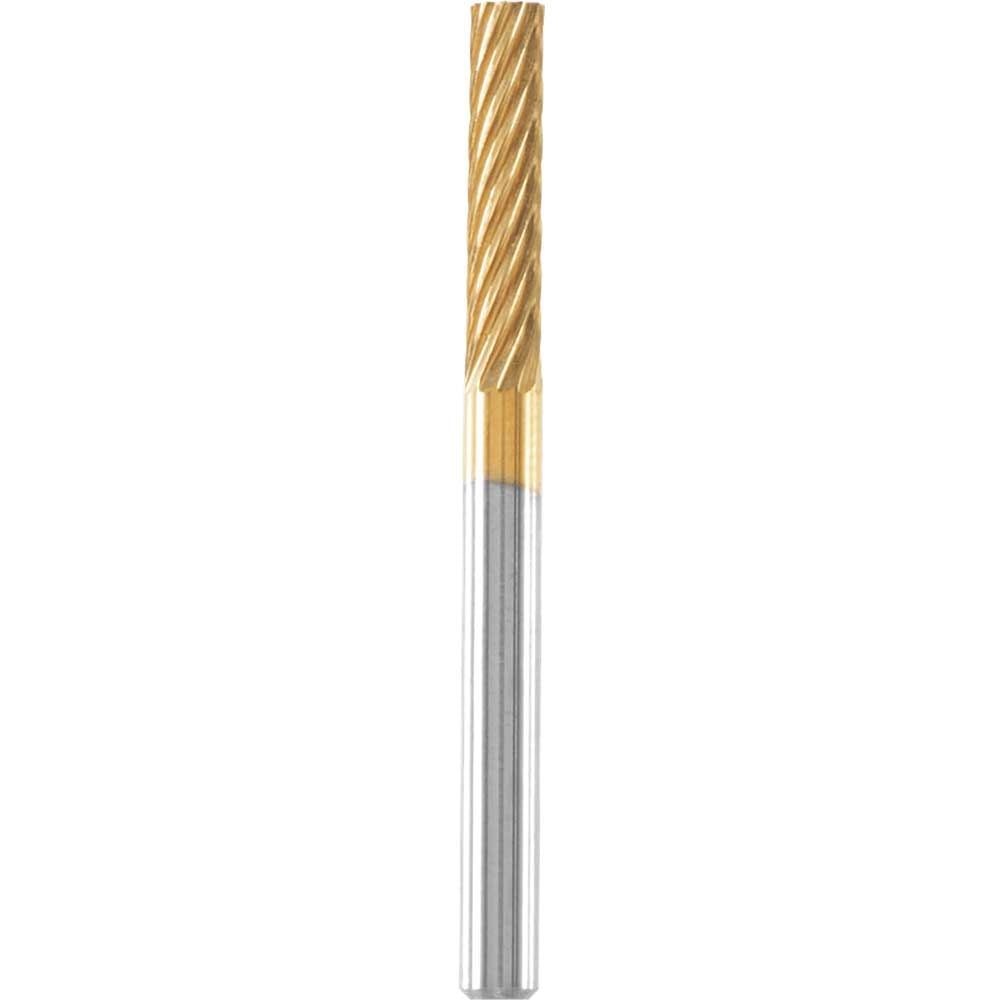

Dremel Max 9901DM Flat Tip Carving Cutter

The Dremel Max 9901DM Flat Tip Carving Cutter is a heavy-duty tungsten carbide accessory designed for precision carving and material removal on hard surfaces. This professional-grade bit features a titanium nitride coating that extends its working life up to twice as long as standard non-coated accessories, making it ideal for demanding trade and DIY applications.

Manufactured from hardened steel (HSS) with a titanium nitride (TiN) coating, this 3.2mm carving bit excels at more aggressive shaping, smoothing and grinding tasks on challenging materials including metals, hardened steel, fire ceramics, cast iron, plastics and hard woods. The flat-tipped cylinder design enables deep material removal whilst offering exceptional versatility for cutting flat areas, rounding edges, and creating precise stop cuts and V-cuts.

This carving cutter proves particularly effective for metal and glass engraving, stone carving, and removing flash from castings. The flat tip creates clean bottom slots and grooves, executes flat side cuts, and when held at 45 degrees, produces accurate V-cuts for detailed work. For optimal results, work with the sides of the accessory head at angles less than 90 degrees, allowing the tool to work without excessive force. If the bit chatters rather than removes material, increase the RPM for smoother cutting. Note that this accessory should not be used for drilling or enlarging holes less than twice its diameter, as the surface can catch and potentially break the bit.

Features and Benefits:
• Titanium nitride coating provides twice the durability of standard carving bits
• Hardened steel construction suitable for aggressive applications on hard materials
• Flat tip design creates precise slots, grooves and V-cuts
• Versatile cylinder shape enables deep removal, edge rounding and detailed carving work
• Compatible with Dremel multi-tools for professional engraving and metalworking

Recommended Operating Speeds:
Hardwood: 18,000-24,000 RPM
Softwood: 25,000-35,000 RPM
Aluminium/Brass: 12,000-17,000 RPM
Shell/Stone: 18,000-24,000 RPM
Ceramic: 18,000-35,000 RPM
Plastic: 9,000-11,000 RPM
Steel: 25,000-35,000 RPM

Specifications:
Shank Diameter: 3.2mm
Working Diameter: 3.2mm
Total Length: 39.0mm
Maximum RPM: 35,000
