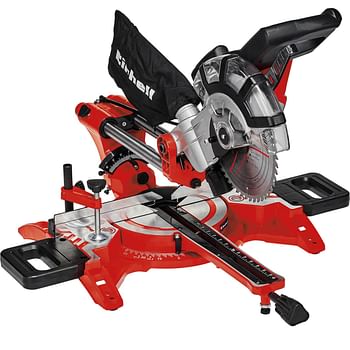

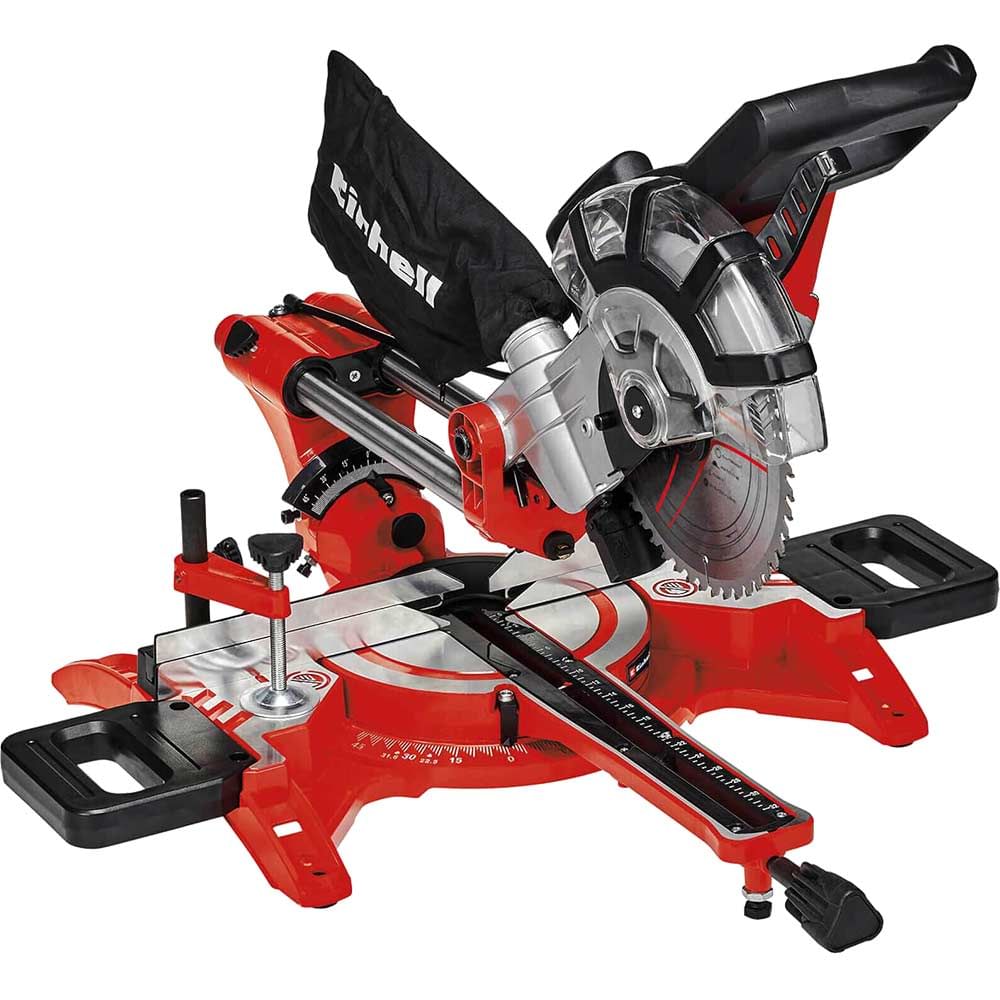

Einhell TC-SM 2131/2 Double Bevel Sliding Mitre Saw 210mm

The TC-SM 2131/2 Dual is a double bevel sliding mitre saw which is suitable for cutting wood, laminated panels and plastic. The saw head can be tilted to the left and right for high flexibility in setting mitres on both sides. An integrated, mains-powered laser marks the cutting line, enabling the workpiece to be positioned quickly and exactly. The high-quality turntable of the TC-SM 2131/2 Dual comes with an exact angle adjustment facility for angular cuts which can be latched single handedly in various positions. The slide function enables you to cut particularly wide workpieces. Workpiece supports on two sides, a clamping device for reliable securing of the workpiece and a workpiece stop with rails that adjust to the left and right enable safe, precise operation. The table insert is equipped with a practical scale for reading off the workpiece width.

The machine is supplied with a 48 tooth blade, workpiece clamp and a dust bag.

Specifications
• Mains supply: 220-240 V / 50 Hz
• Power: 1500 W
• Idle speed: 4900 min^-1
• Saw blade: 210mm (diameter) x 30mm (bore)
• Mitre cut: -45° - +45°
• Swiveling range: -47° - +47°
• Cutting width 90° x 90°: 310 x 62
• Cutting width 90° x 45°: 210 x 62
• Cutting width 45° x 90°: 310 x 36
• Cutting width 45° x 45°: 210 x 36
• Diameter of suction adapter: 36 mm
• Length: 717 mm
• Width: 455 mm
• Height: 393 mm

Features and Benefits
• Slide function for cutting wide workpieces
• Turntable with precise angle setting for angular cuts
• Saw head tilts to the left and right
• Includes laser (mains-powered) for precise guidance while cutting
• Supports for sawing long workpieces on both sides
• Workpiece stop with rails adjustable to the left and right
• Clamping device for holding the workpiece securely in position
• Comes with a dust bag and can alternatively be connected to a vacuum cleaner
• Dust funnel behind saw blade helps remove sawdust more effectively

Contents
• TC-SM 2131/2 Double Bevel Sliding Mitre Saw 240v
• 48 Tooth Blade
• Workpiece Clamp
• Dust Bag
