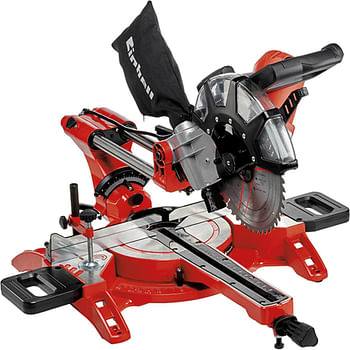

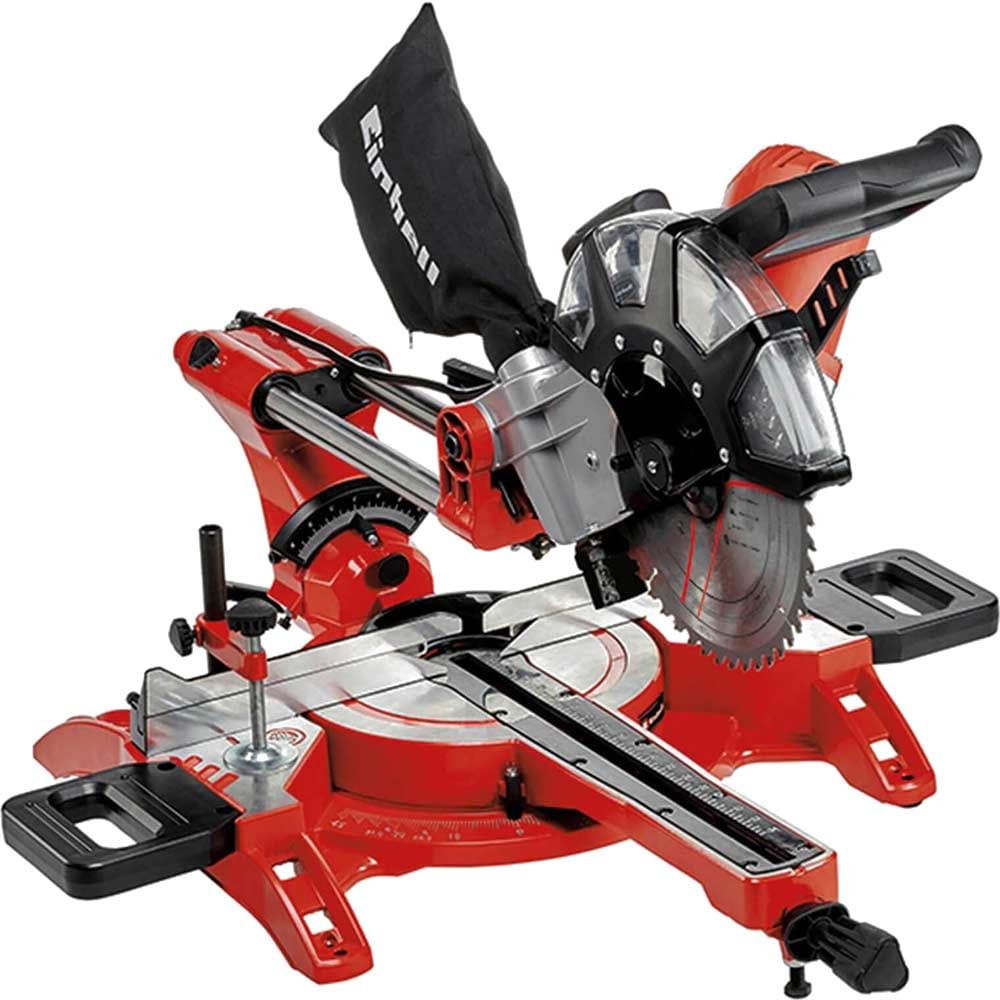

Einhell TC-SM 2534/1 Double Bevel Sliding Mitre Saw 250mm

The TC-SM 2534/1 Dual is a double bevel sliding mitre saw for cutting wood, laminated panels and plastic. The saw head can be tilted continuously to the left and right for high flexibility in setting mitres on two sides. An integrated, mains-powered laser marks the cutting line, enabling the workpiece to be positioned quickly and exactly. The high-quality turntable of the TC-SM 2534/1 Dual comes with an exact angle adjustment facility for angular cuts which can be latched single handedly in various positions. The slide function enables you to cut particularly wide workpieces. Workpiece supports on two sides, a clamping device for reliable securing of the workpiece and a workpiece stop with rails that adjust to the left and right enable safe, precise operation. The table insert is equipped with a practical scale for reading off the workpiece width.

The machine is supplied with a 48 tooth blade, workpiece clamp and a dust bag.

Specifications
• Mains supply: 230-240 V / 50 Hz
• Power: 2100 W
• Max. power (S6 / S6%): 2350 W / 25 %
• Idle speed: 4000 min^-1
• Saw blade: 250mm (diameter) x 30mm (bore)
• Mitre cut: -45° - +45°
• Swiveling range: -47° - +47°
• Cutting width 90° x 90°: 340 x 75
• Cutting width 90° x 45°: 240 x 75
• Cutting width 45° x 90°: 340 x 42
• Cutting width 45° x 45°: 240 x 42
• Diameter of suction adapter: 36 mm
• Length: 795 mm
• Width: 575 mm
• Height: 433 mm

Features and Benefits
• Slide function for cutting wide workpieces up to 340 mm
• Turntable with precise angle setting for angular cuts
• Saw head tilts to the left and right for mitre cutting
• Includes laser (mains-powered) for precise guidance while cutting
• Supports for sawing long workpieces on both sides
• Workpiece stop with rails adjustable to the left and right
• Clamping device for holding the workpiece securely in position
• Includes dust bag; can alternatively be connected to a vacuum cleaner
• Funnel behind saw blade for improved dust management

Contents
• TC-SM 2534/1 Dual Bevel Sliding Mitre Saw 240v
• 48 Tooth Blade
• Workpiece Clamp
• Dust Bag
