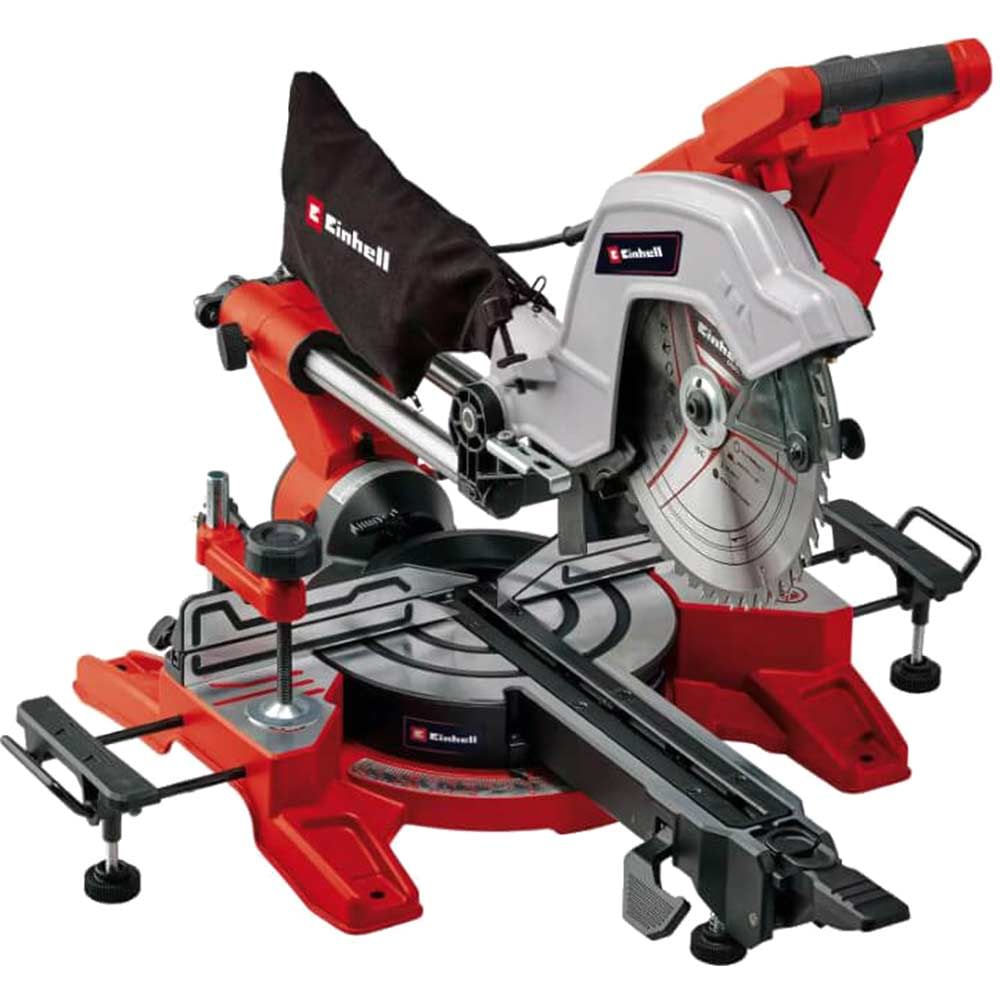

Einhell TE-SM 10 L Dual Bevel Sliding Compound Mitre Saw 254mm

The TE-SM 10 L is a dual bevel sliding compound mitre saw which can cut through materials up to 305mm wide and 85mm deep in a single pass. The turntable base has snap-in preset positions for commonly required angles and the saw head can be tilted up to 45° in either direction. The sliding feature is also paired with a depth stop function which allows the blade to be levelled out at a fixed height if required, and thus allows for grooves and channels to be cut into the material, rather than cutting all the way through.

For safety and convenience, the saw comes with a number of other features: there are material supports to prop up longer workpieces, a material clamp for fixing the material in position before making the cut, and a laser line guide which allows the cutting line to be quickly and easily lined up underneath the blade. The supplied dust bag can also be substituted with a dust hose from a vacuuum cleaner or dust extractor for direct dust extraction from the saw.

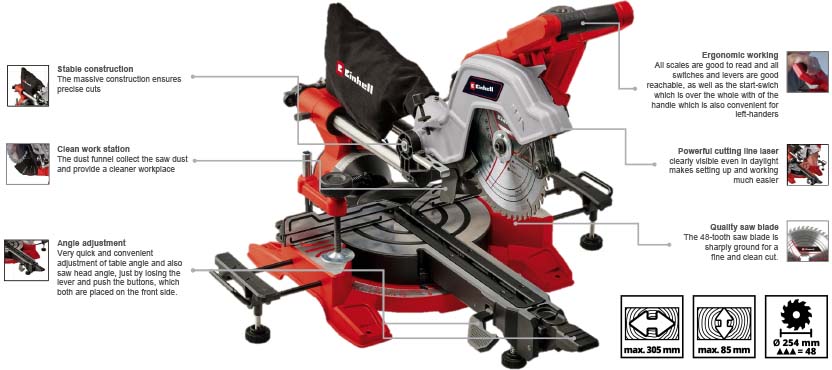

Features and Benefits
• UK version: fitted with a standard UK 240v mains plug
• Sliding action for sawing wider workpieces
• Turntable with snap-in positions at the most common angles

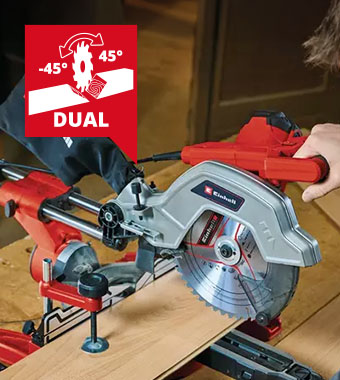

• Dual bevel: head can be tilted up to 45° in either direction
• Laser guide line shows where the blade will land for quick and easy setup every time
• Includes material supports and hold down clamp
• Easy-to-reach spindle lock for simple saw blade changes
• Clearly visible angle scales
• Dust port can be connected to a vacuum cleaner or dust extractor
• Depth stop for cutting out grooves

Specifications
• Voltage: 240v UK Mains
• Wattage: 2000 W
• Blade Diameter: 254mm
• Blade Bore Diameter: 30mm
• Max Cutting depth 45° x 45°: 45 mm
• Max Cutting depth 90° x 90°: 85 mm
• Max Cutting width 45° x 45°: 215 mm
• Max Cutting width 90° x 90°: 305 mm
• Max Bevel: 45°
• Max Swivel Range: 47°
• Machine Weight: 15.09kg

Contents
• TE-SM 10 L Dual Bevel Sliding Compound Mitre Saw 240v
• Material Support (x2)
• Hold Down Clamp
• Dust Bag
• Circular Saw Blade (254mm, 48 Tooth)
