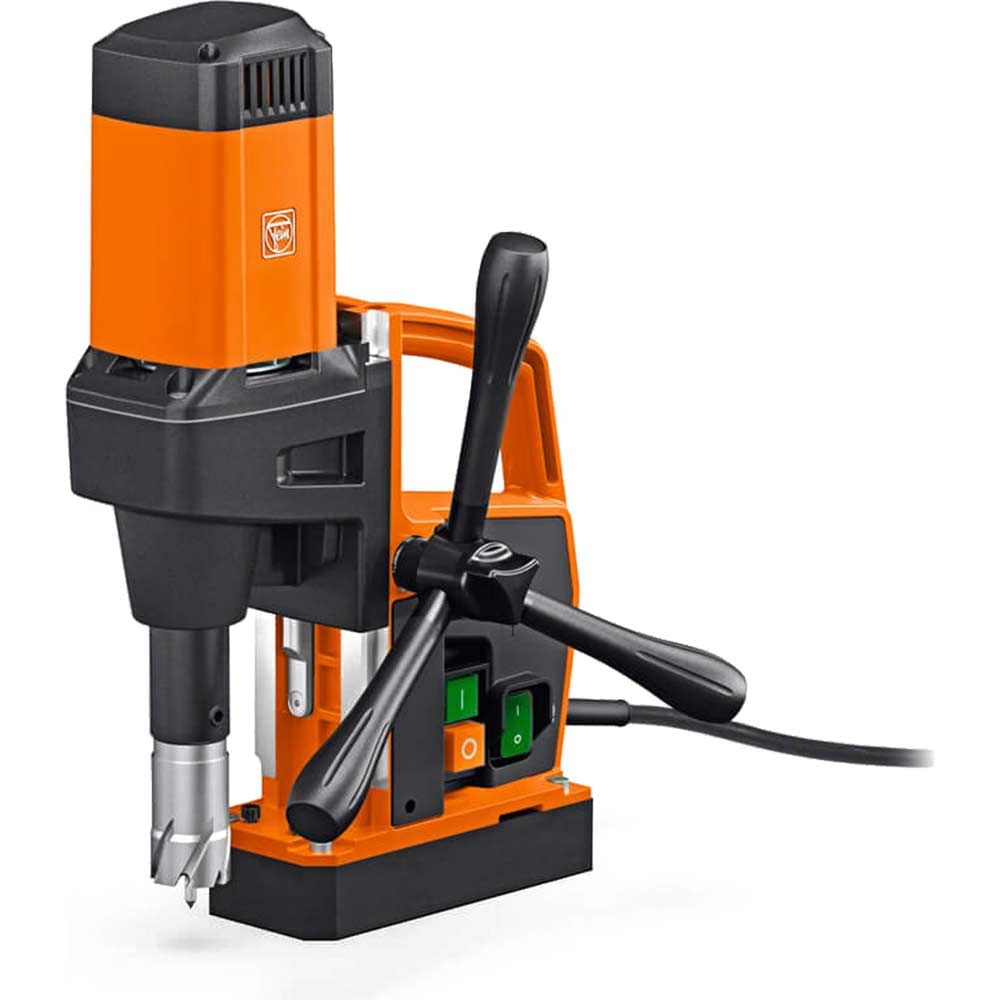

Fein KBE 32 Eco Magnetic Drilling Machine

The Fein KBE 32 Eco Magnetic Drilling Machine is a small, lightweight, and powerful 1-speed core drill, designed for efficient and durable core drilling on construction sites. With an extremely durable gearbox design, the Fein KBE 32 Eco offers up to 400 hours of operation, ensuring long-lasting, high-performance results for tough, industrial use.

Powered by a FEIN high-power motor with high torque, this magnetic core drill is built for a range of core drilling tasks, providing reliable performance at an excellent price/performance ratio. Its internal motor cable guide and internal cooling system further enhance the machine’s durability and usability, even in demanding environments.

The Fein KBE 32 Eco offers excellent magnetic holding force, ensuring secure positioning during drilling. Its feed handwheel can be easily moved from one side to the other for added convenience, making it ideal for use in cramped workspaces. A personal safety switch provides additional protection during operation, making the Fein KBE 32 Eco a reliable, high-performance solution for core drilling tasks on the job site.

Features and Benefits
• Eco magnetic core drill for up to 32 mm
• KBE 32
• Small and extremely lightweight single-speed economical magnetic core drill with basic functionality for core drilling on the construction site.
• For tough use thanks to the outstanding quality of workmanship and the internal motor cable guide.
• Extremely durable gearbox design offering an operating time of up to 400 hours for an uncompromising service life.
• Lightweight with FEIN high-power motor and high torque for all core drilling tasks
• Excellent price / performance ratio.
• Internal cooling.
• High magnetic holding force.
• Feed handwheel can be moved from one side to the other.
• Good accessibility in cramped operating situations.
• Personal safety switch.

Specifications
• Input: 1,200 W
• Output: 770 W
• Speed, full load: 450 rpm
• Speed, no load: 700 rpm
• Carbide core drill bit max. Ø: 32 mm
• HSS core drill max. Ø: 32 mm
• Core drill, drilling depth max.: 50 mm
• Core drill holder: 3/4 in Weldon
• Stroke: 90 mm
• Magnetic holding power: 10,000 N
• Magnetic foot dimensions: 175 x 80 mm
• Cable with plug: 3 m
• Weight according to EPTA: 10.80 kg

Contents
• 1 hand pump
• 1 bottle holder
• 1 lashing strap
• 1 centring pin 100 mm
• 1 contact guard
• 1 socket head wrench 5 mm
• 1 case
