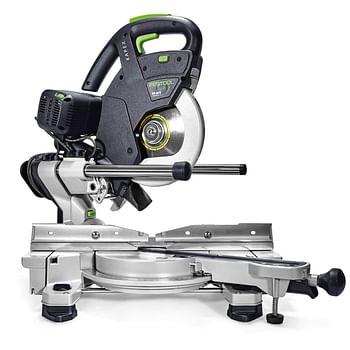

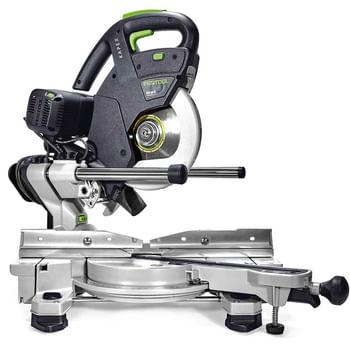

Festool KAPEX KS 60 E-SET Sliding Compound Mitre Saw 216mm

The Festool KAPEX KS 60 E-SET is a 216mm sliding compound mitre saw designed for precision cutting in mobile assembly and installation applications.

Built around a philosophy of removing unnecessary weight without compromising capability, the KAPEX KS 60 weighs just 17.9 kg without accessories and features an exceptionally compact form thanks to flush-mounted guide rods. Ergonomically positioned carrying handles, a cord holder, and a transport safety device make it genuinely practical to move between sites and working positions.

Cutting performance is delivered through Festool's twin-column guide system with two bearings, ensuring smooth and reliable blade travel on every pass. The mitre angle adjusts up to 60° on both sides, while the inclination angle reaches 47° (left) or 46° (right), giving carpenters and joiners the versatility to tackle complex angled cuts in skirting boards, cornices, profiles, and timber sections up to 60 mm thick.

The included LED spotlight projects a precise cutting line onto the workpiece, and the bevel allows interior and exterior angles to be set without manual calculations – particularly useful when fitting architrave, coving, or mouldings. A cutting depth limiter enables rapid grooving, and the pull-out extension table supports longer workpieces. The dust extraction port accepts 27 mm or 36 mm connections, making it compatible with Festool mobile dust extractors for a cleaner working environment in line with COSHH good practice.

Features and Benefits:
• Compact and lightweight at 17.9 kg, with ergonomic handles and cord holder for mobile site use
• LED spotlight included in the set for accurate cutting line projection
• Mitre angle up to 60° on both sides and inclination angle up to 47°/46° for versatile angled cuts
• Twin-column guide with dual bearings ensures smooth, reliable blade travel
• Bevel included for setting interior and exterior angles without calculations
• Cutting depth limiter for rapid grooving work
• 27/36 mm dust extraction connection compatible with Festool mobile dust extractors

Specifications:
Power consumption: 1,200 W
Idle engine speed: 1,300 – 3,500 min?¹
Saw blade diameter: 216 mm
Cutting depth 90°/90°: 305 x 60 mm
Cutting depth 45°/90°: 215 x 60 mm
Cutting depth 60°/90°: 150 x 60 mm
Cutting depth 45°/45° (left): 215 x 40 mm
Cutting depth 45°/45° (right): 215 x 20 mm
Inclination angle: 47°/46°
Mitre angle: 60°/60°
Dimensions (W x D x H): 661 x 475 x 430 mm
Dust extraction connection diameter: 27/36 mm
Cable length: 3.7 m
Product weight (without accessories): 17.9 kg
Transport weight (incl. accessories): 21.9 kg
Drive type: Mains
Sound power level LWA: 100 dB(A)
Sound pressure level LpA: 91 dB(A)
Vibration total value Ah: 2.50 m/s²
Vibration uncertainty K: 1.50 m/s²
Noise uncertainty K: 3.00 dB
Standard: EN 62841-3-9

Contents:
Circular saw blade WOOD UNIVERSAL HW 216 x 2.3 x 30 W36
Fastening clamp FSZ 120
LED spotlight
Bevel
Elevation
Hex key WAF 6
