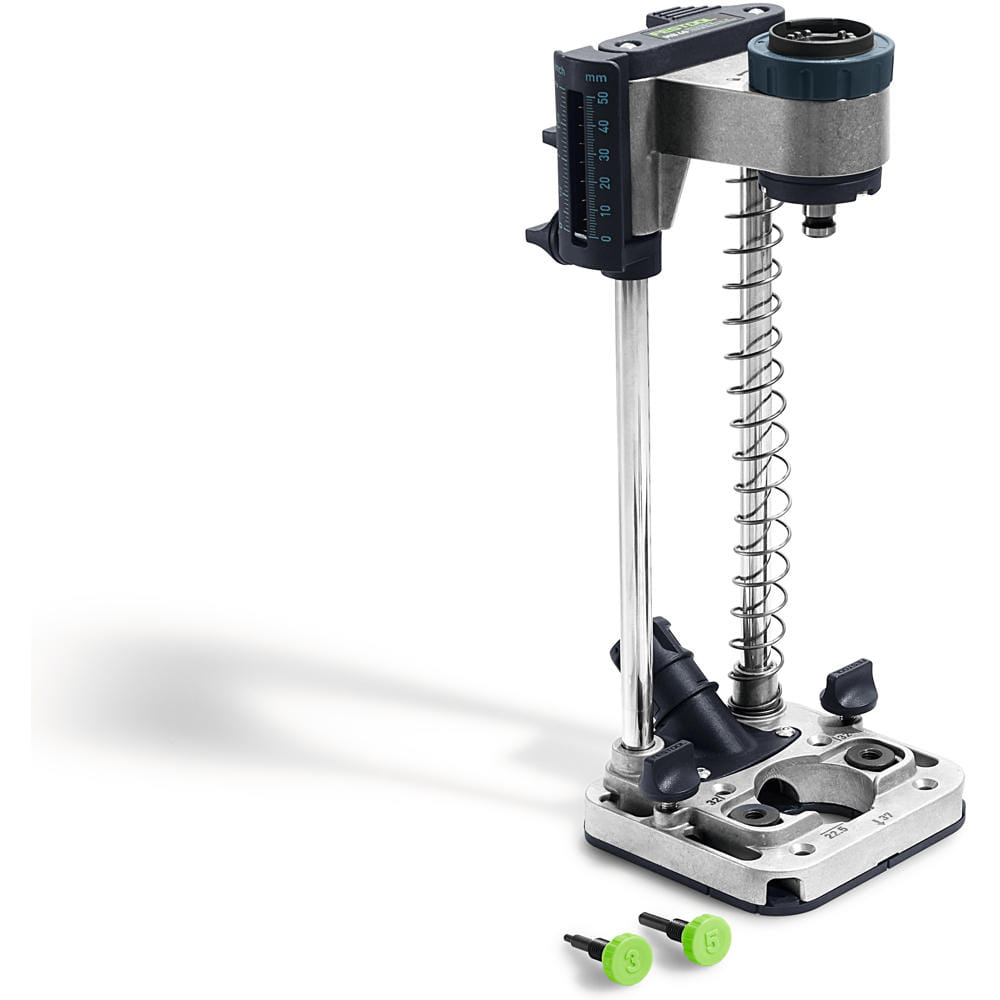

Festool MB 40 Mobile Drilling Attachment

The Festool MB 40 Mobile Drilling Attachment is a compact drilling guide designed to deliver precise 90° holes wherever you're working, making it an essential aid for cabinetmakers, kitchen fitters, and furniture manufacturers.

Attaching directly to compatible Festool cordless drills via the FastFix system, the MB 40 enables repeat-accurate vertical drilling, end face holes, and series drilling — all without a bench-mounted pillar drill. The rubberised base plate grips the workpiece firmly to prevent slipping, while clear positioning markings allow fast, accurate alignment every time.

The integrated depth stop offers a setting range of 0–50 mm with readings displayed in both mm and inches, giving tradespeople consistent, measurable results across repetitive tasks. Dust extraction connects directly to the base plate via a 27 mm diameter port, compatible with Class M extractors — keeping the drilling point visible and the work area clean in line with good dust management practice.

Suitable for drilling in wood, metal, and plastic, the MB 40 is particularly well suited to System 32 hole series work, shelf support drilling, and fitting cupboard hinges — tasks common to furniture assembly and kitchen installation. Included hole series pins (3 mm and 5 mm) allow accurate spacing for repeat patterns straight out of the box.

Features and Benefits:
• FastFix compatible — attaches quickly to Festool cordless drills without tools
• CENTROTEC chuck support for fast bit changes during drilling operations
• Depth stop with zero position and dual mm/inch scale for precise, repeatable depth control
• Rubberised base plate prevents slipping and protects the workpiece surface
• Integrated dust extraction port (27 mm) compatible with Class M extractors
• Positioning markings on base plate for quick and accurate alignment
• Hole series function supports System 32 cabinet drilling with included 3 mm and 5 mm pins

Specifications:
Holder: FastFix
Max. drilling diameter for softwood (Forstner drill bit): 40 mm
Max. drilling diameter for softwood (auger bit): 16 mm
Base plate dimensions: 110 x 114 mm
Height: 312 mm
Setting range of depth stop: 0–50 mm
Max. screw diameter (templates/fixtures): 4 mm
Stroke with depth stop (incl. spring): 187 mm
Stroke without depth stop (without spring): 203 mm
Dust extraction connection diameter: 27 mm
Weight (without accessories): 1.40 kg

Contents:
Hole series pin 5 mm
Hole series pin 3 mm
