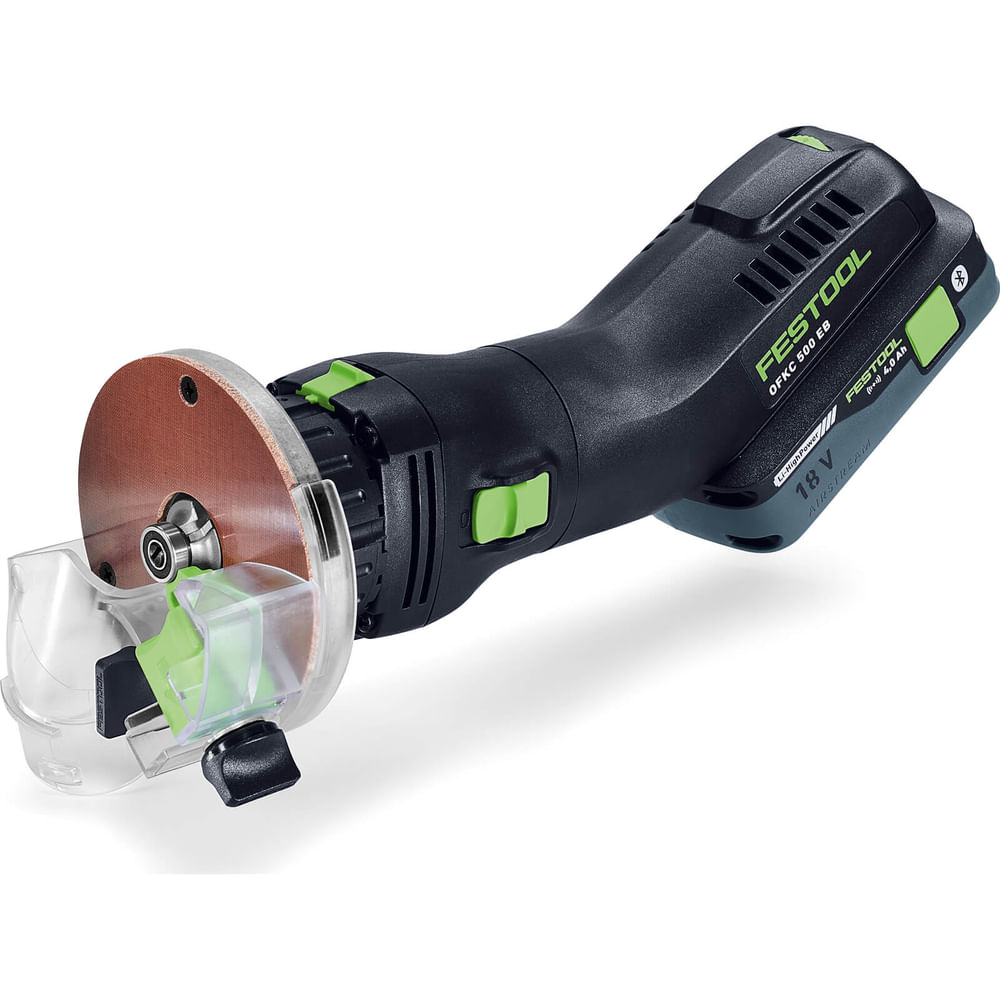

Festool OFKC 500 R3 18v Cordless Edge Router

The Festool OFKC 500 R3 18V Cordless Edge Router is a compact, battery-powered trimmer designed for precise edge routing on timber, door frames, boards, and edge veneer — without the restriction of a cable.

Weighing just 1.3 kg, the router's slim build and well-balanced centre of gravity make it stable and comfortable to handle during extended use. Depth adjustment is accurate to 1/10 mm, ensuring clean, consistent results on every pass without the need for reworking. The solid connection between cutter and drive delivers excellent run-out accuracy, which is essential when working with fine edge veneer or strip material.

The brushless EC-TEC motor runs quietly and includes thermal monitoring to protect against overheating. Variable speed control — from 10,000 to 25,000 min?¹ — allows you to match the RPM to the material, reducing the risk of scorch marks. When used alongside a Festool Bluetooth® battery pack, the dust extraction kicks in automatically, keeping the work area clean without any manual intervention.

This model is supplied with an R3 roundover cutter, making it ready to use straight from the Systainer for rounding over edges on-site or in the workshop.

Features and Benefits:
• Cordless 18V design for unrestricted movement and greater on-site flexibility
• Depth adjustment accurate to 1/10 mm for precise, repeatable routing
• Brushless EC-TEC motor with thermal monitoring for quiet, reliable performance
• Variable speed (10,000–25,000 min?¹) to suit different materials and reduce scorch marks
• Hard fibre base runner protects workpiece surfaces and provides smooth, scratch-resistant glide
• Quick cutter changes via spindle lock — compatible with all OFK 500 cutters (R1–6, chamfer and flush)
• Automatic dust extraction activation via Bluetooth® battery pack
• Transparent dust extraction attachment with integrated ball bearing brake for clean working
• Spring steel ball bearing brake provides extra freedom of movement when working without extraction
• Supplied in a Systainer SYS3 M 187 for secure storage and transport

Specifications:
Idle speed: 10,000–25,000 min?¹
Maximum cutter diameter: 28 mm
Cutter stroke (fine-tuning): 10 mm
Dust extraction connection diameter: 27 mm
Product weight (without accessories): 1.30 kg
Transport weight (incl. accessories): 3.5 kg
Drive type: Battery
Battery voltage: 18V
Vibration total average (Ah): 2.50 m/s²
Vibration uncertainty (K): 1.50 m/s²
Sound pressure level (LpA): 82.00 dB(A)
Sound power level (LWA): 90.00 dB(A)
Noise uncertainty (K): 1.50 dB
Standards: EN 62841-2-17

Contents:
Roundover cutter HW R3-OFK 500 Z1
Ball bearing guide KLS-D 15.8-OFK
Dust extraction attachment with ball bearing brake
Spring plate ball bearing brake
Systainer SYS3 M 187
