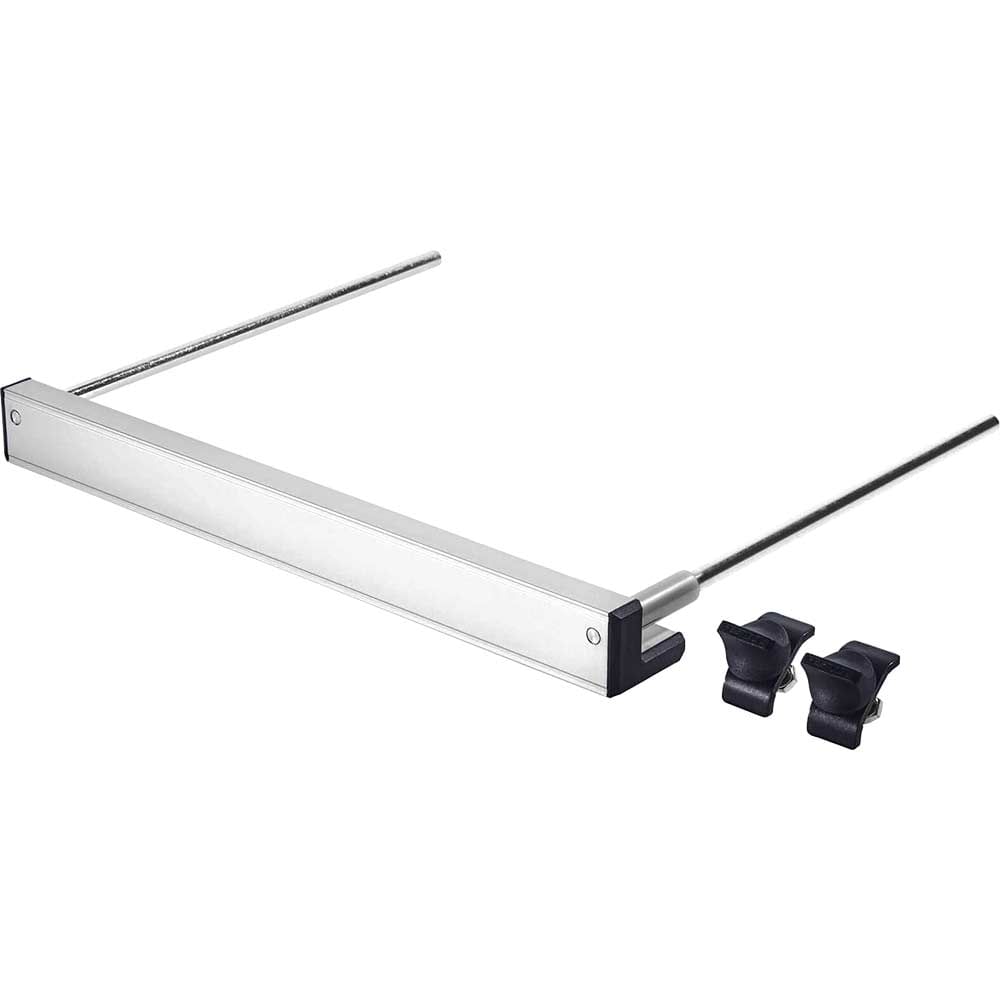

Festool PA-TS 55 Parallel Guide Side Fence

The Festool PA-TS 55 Parallel Guide Side Fence is a guide rail accessory designed to make accurate, repeatable parallel cuts along the edge of a workpiece with minimal setup time.

Compatible with the Festool TS 55 plunge-cut saw, this parallel stop is particularly well suited to tasks such as splitting boards, cutting sheet materials, and creating grooves. It attaches directly to the machine and uses the workpiece edge as a reference, delivering consistent results across multiple cuts.

The fence can be fitted to either side of the machine, giving flexibility depending on the task at hand. When mounted to the motor side, it accommodates workpiece widths from 177 mm to 220 mm. When fitted to the saw blade side, it handles narrower workpieces ranging from 3 mm to 100 mm — making it equally useful for fine groove work as it is for ripping down longer boards.

Features and Benefits:
• Enables consistent parallel cuts using the workpiece edge as a reference
• Dual-fit design — mounts to motor side or saw blade side to suit the task
• Suitable for workpiece widths from 3 mm up to 220 mm across both mounting positions
• Low 10 mm underside overhang below the machine table for unobstructed operation
• Ideal for splitting boards, panel materials, and creating grooves

Specifications:
Minimum workpiece width: 3 mm
Maximum workpiece width: 220 mm
Lower overhang below machine table: 10 mm
Workpiece width range (motor side): 177 mm – 220 mm
Workpiece width range (blade side): 3 mm – 100 mm
