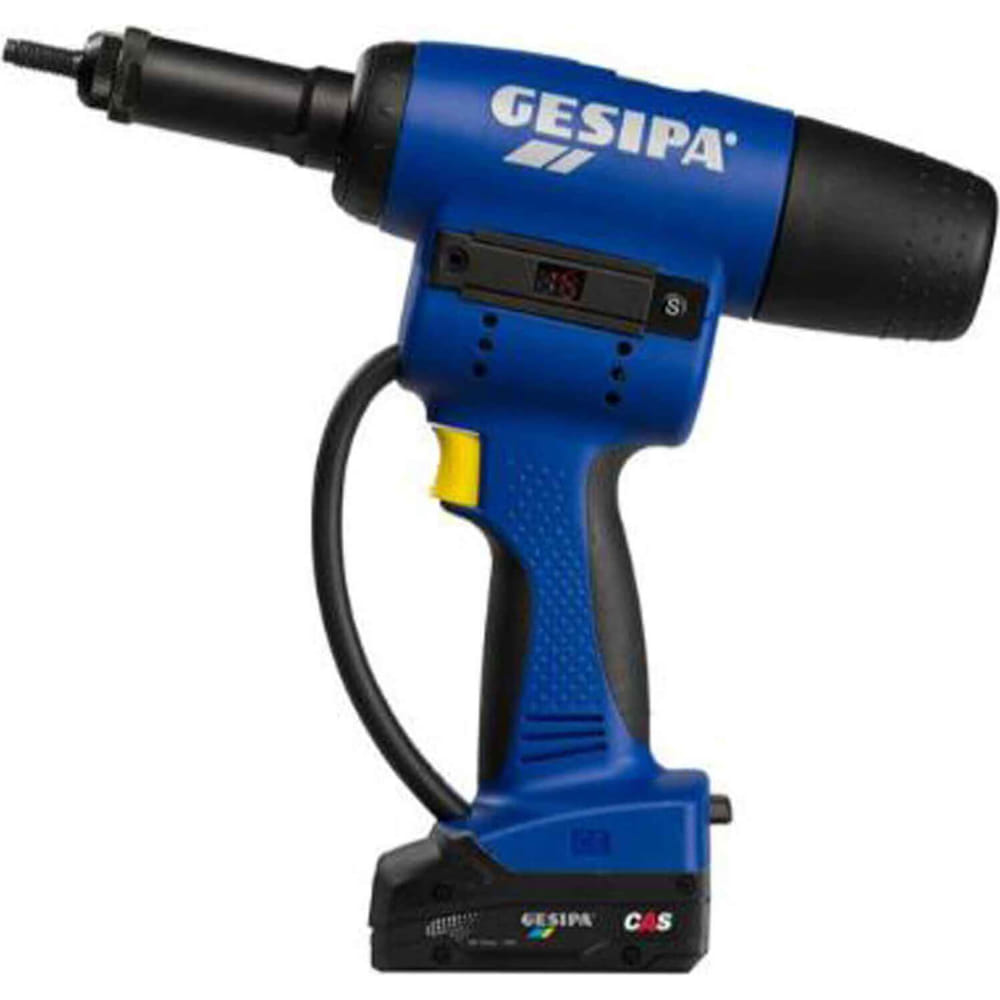

Gesipa Firebird Pro Gold Edition 18v Cordless Brushless Rivet Nut Tool

The Gesipa FireBird Pro Gold Edition 18V Cordless Brushless Rivet Nut Tool is a high-performance solution designed for heavy-duty industrial and construction applications where maximum setting force and reliability are required. Built around the Cordless Alliance System (CAS), it offers complete battery flexibility, allowing one battery platform to power over 400 compatible devices across multiple manufacturers.

Equipped with a powerful brushless DC motor, the FireBird Pro Gold Edition delivers an exceptional 20,000 N setting force, enabling fast, secure installation of blind rivet nuts up to M12 in aluminium and steel, and up to M10 in stainless steel. The brushless motor design eliminates wear-prone components, ensuring extremely long service life, minimal maintenance, and consistently fast setting cycles.

The tool is controlled exclusively via setting force adjustment, protecting the internal thread of the rivet nut while guaranteeing a strong and secure anchor in the base material. Drilling is performed with optimised torque and automatic shut-off, and once the riveting process is complete, the tool automatically reverses to release the threaded mandrel. The drilling and riveting processes are mechanically separated, improving control, accuracy, and reliability.

Designed for demanding environments, the FireBird Pro Gold Edition features a robust, impact-resistant housing, along with a balanced centre of gravity and ergonomic handle to reduce operator fatigue during prolonged use. Powered by an 18V CAS battery system, it provides true cordless freedom for use on construction sites, fabrication workshops, and industrial manufacturing lines.

Features and Benefits
• CAS Battery System – Manufacturer-independent Cordless Alliance System allows use with a wide range of CAS batteries and chargers.
• Ultra-High Setting Force – 20,000 N force for setting large rivet nuts in aluminium, steel, and stainless steel.
• Brushless Motor Technology – Virtually wear-free motor for long service life and high setting frequency.
• Thread Protection – Force-controlled setting ensures secure anchoring while protecting rivet nut threads.
• Automated Operation – Optimised drilling torque with automatic shut-off and automatic mandrel release.
• Ergonomic & Balanced Design – Reduces fatigue and improves control during extended operation.
• Heavy-Duty Construction – Impact-resistant housing built for professional and industrial use.

Specifications
• Battery Voltage: 18V
• Motor Type: Brushless DC
• Setting Force: 20,000 N
• Setting Stroke: 10 mm
• Working Range: Up to M12 aluminium; Up to M12 steel; Up to M10 stainless steel
