Guhring No 201 41 Piece HSS 6.0 -10mm By 0.1mm Drill Set

The Guhring No 201 41 Piece HSS drill set provides professional-grade precision drilling with 0.1mm increments from 6.0mm to 10.0mm. This German-manufactured drill bit set features Type N DIN 338 HSS bits, each steam tempered with a 118° point angle for optimal performance across a wide range of ferrous materials.

Engineered for demanding workshop and site environments, these high-speed steel drill bits deliver reliable results when drilling steel, cast steel, grey cast iron, spheroidal iron, and malleable cast iron. The set is also suitable for working with sintered powder metal, German silver and graphite. Each bit is manufactured in Germany using quality German steel, ensuring consistent performance and extended tool life under professional use.

The metal indexed case provides secure organised storage and quick size selection, with all 41 drill bits clearly arranged for efficient workflow. With h8 tolerance and right-hand cutting direction, this set offers the precision sizing required for exacting metalworking applications. The bright, steam tempered surface finish enhances durability whilst the approximate 5xD machining depth capability suits a broad range of drilling tasks. Whilst optimised for ferrous metals, the set has limited suitability for aluminium and other non-ferrous materials.

Features and Benefits:
• 0.1mm increments provide exceptional size selection for precision metalwork
• German-manufactured HSS construction ensures durability for professional applications
• Metal indexed case keeps drill bits organised and protected on site
• DIN 338 Type N specification guarantees consistent quality and performance
• 118° point angle optimised for steel and cast iron drilling

Specifications
Diameter: 6.0mm - 10.0mm
Increasing By: 0.1mm
Pieces in Set: 41
Guhring Code No: 0.016
Optimal Suitability: Steel, High Alloyed Steel, Grey Cast Iron, Spheroidal Graphite Iron, Malleable Cast Iron
Limited Suitability: Aluminium, other Non Ferrous Metals
Tool Material: HSS
Surface: Bright, Steam Tempered
Cutting Direction: Right
Machining Depth: ~5xD
Standard: DIN338
Type: N
Point Angle: 118°
Tolerance: h8

Contents
6, 6.1, 6.2, 6.3, 6.4, 6.5, 6.6, 6.7, 6.8, 6.9, 7, 7.1, 7.2, 7.3, 7.4, 7.5, 7.6, 7.7, 7.8, 7.9, 8, 8.1, 8.2, 8.3, 8.4, 8.5, 8.6, 8.7, 8.8, 8.9, 9, 9.1, 9.2, 9.3, 9.4, 9.5, 9.6, 9.7, 9.8, 9.9, 10mm

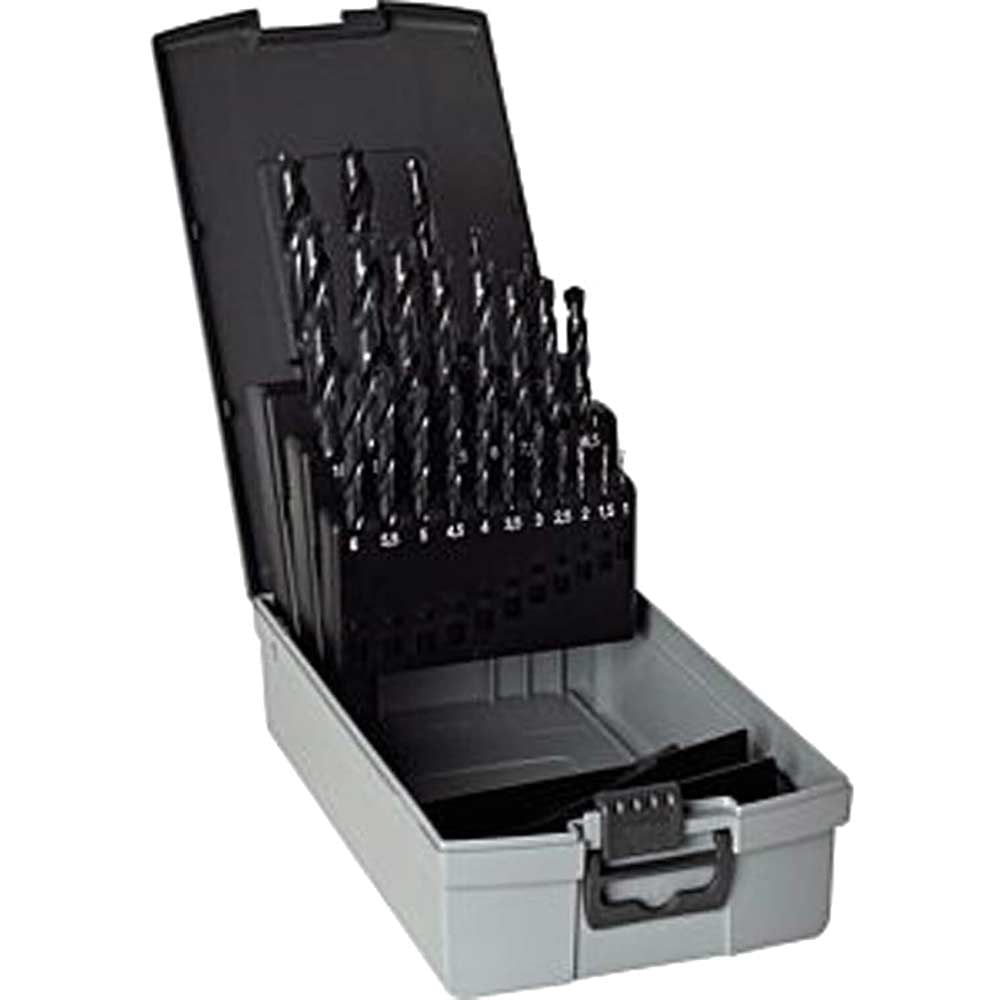

Case
