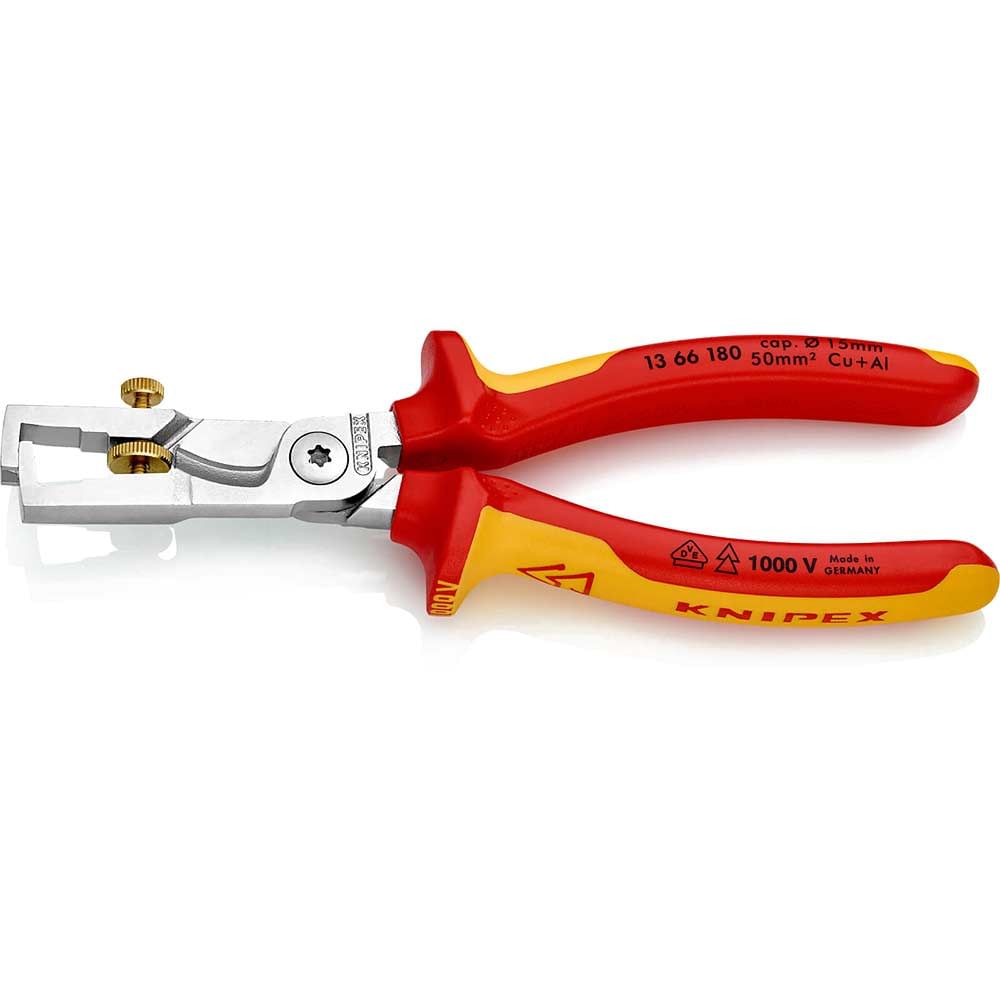

Knipex 13 66 StriX VDE Wire Stripper and Cable Shears Pliers

The Knipex 13 66 StriX VDE Wire Stripper and Cable Shears Pliers is a professional-grade insulation stripper designed for electricians working with single, multiple and fine stranded conductors. This versatile tool combines wire stripping capabilities with integrated cable shears, making it ideal for electrical installation and maintenance work.

Manufactured from high-grade tool steel that has been forged and oil-hardened multiple times, these pliers feature a chrome plated finish for durability and corrosion resistance. The multi-component grips provide comfortable handling during extended use, whilst the slim profile design ensures easy access in confined spaces such as consumer units and junction boxes.

VDE tested up to 10,000V and certified safe for work up to 1,000V, these pliers conform to DIN EN / IEC 60900 safety standards, making them suitable for live working applications. The knurled screw and lock nut allow precise adjustment to accommodate the required diameter of solid or stranded wire up to 5mm diameter or 10mm² cable cross section.

The integrated shear blade cuts copper cable up to 15mm (5 x 2.5mm²), whilst the bolted joint ensures precise operation with zero backlash for consistent performance. Increments marked in the jaw at 11mm and 16mm provide a visual guide for stripping consistent cable lengths, improving efficiency and accuracy during repetitive tasks.

Features and Benefits:
• VDE tested to 10,000V and safe for work up to 1,000V for electrical applications
• High-grade forged and oil-hardened tool steel construction for long service life
• Adjustable knurled screw accommodates various cable diameters
• Integrated shear blade cuts copper cable up to 15mm
• Jaw increments at 11mm and 16mm for consistent stripping lengths
• Slim design allows access to confined spaces
• Bolted joint provides zero backlash for precise operation

Specifications:
Stripping Capacity: 5mm diameter / 10mm² / AWG 7
Length: 180mm
VDE Tested: 10,000V
Safe Working Voltage: 1,000V
Standards: DIN EN / IEC 60900
Cable Shear Capacity: 15mm (5 x 2.5mm²)
