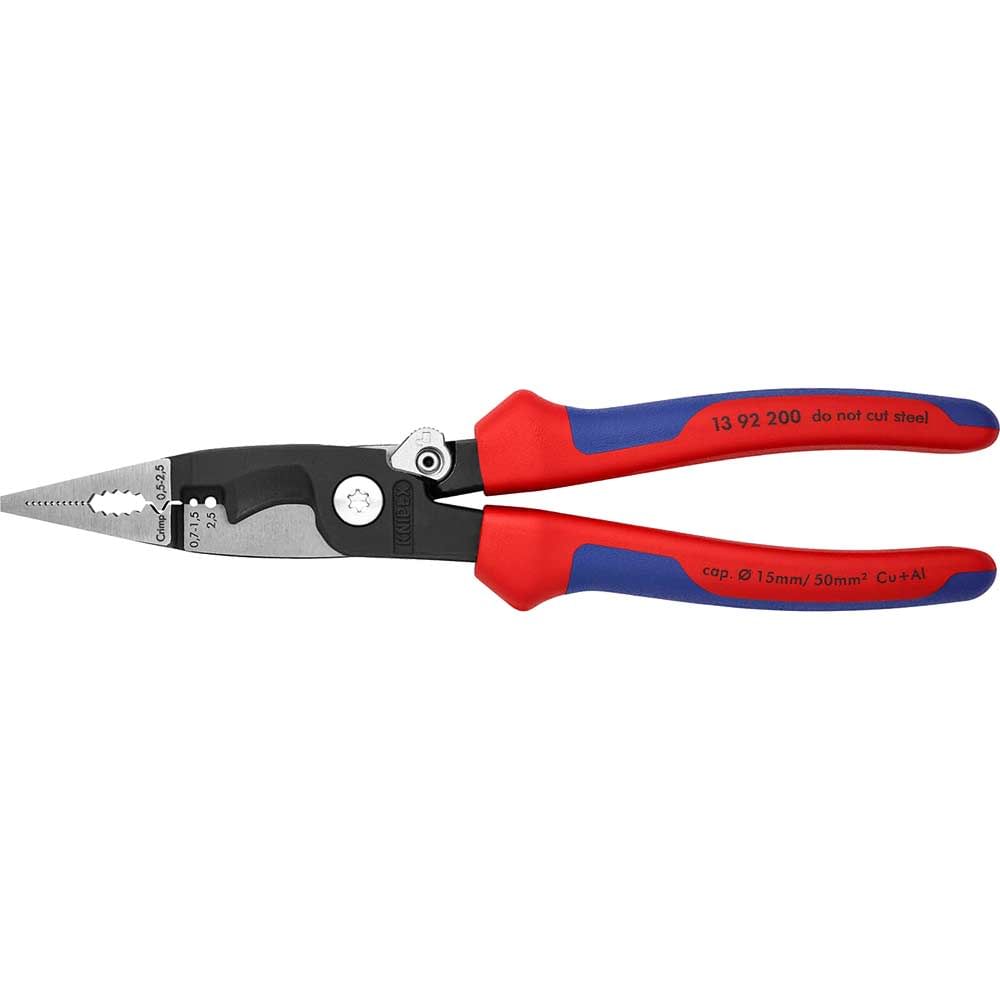

Knipex 13 92 Electrical Installation Pliers

The Knipex 13 92 Electrical Installation Pliers are multifunctional pliers designed specifically for electricians and electrical contractors, combining six essential functions in a single tool. These professional-grade pliers handle gripping, bending, deburring, cable cutting, wire stripping and ferrule crimping tasks commonly encountered during electrical installation work.

Built with smooth surfaces near the tips to grip single cores without damaging them, the pliers feature serrated gripping surfaces and a pipe grip for handling both flat and round materials. The clear-cut outside edge on the gripping surfaces enables work on flush-mounted junction boxes and deburring of feed-through holes with precision.

The cable shears incorporate induction-hardened precision cutting edges capable of cutting copper and aluminium cables up to 5 x 2.5 mm² or Ø 15 mm diameter. Dedicated stripping holes accommodate conductors of 0.75 - 1.5 mm² and 2.5 mm² cross-sections, whilst the integrated crimping die handles wire ferrules from 0.5 to 2.5 mm².

The bolted joint construction ensures precise, zero-backlash operation. Models with an integrated opening spring feature an activated locking lever that keeps cutting edges closed whilst other functions remain active. The intelligent latching mechanism allows gripping without opening the pliers, keeping the cutting edge protected. Slim dimensions provide easy access in confined spaces typical of electrical installation work.

Features and Benefits:
• Six functions in one tool eliminates the need to carry multiple pliers
• Induction-hardened cutting edges for durability and clean cuts
• Smooth tip surfaces prevent damage to single core conductors
• Integrated stripping holes for common cable sizes (0.75 - 2.5 mm²)
• Crimping die for wire ferrules 0.5 - 2.5 mm²
• Slim profile for easy access in tight spaces
• Bolted joint ensures precise, zero-backlash operation
• Intelligent latching mechanism protects cutting edge when not in use

Specifications:
Cutting capacity copper cable, multiple-stranded: Ø 15 mm
Cutting capacity copper cable, multiple-stranded: 50 mm²
Stripping capacity for cross-sections: 0.75 — 1.5 mm² / 2.5 mm²
Capacity in square millimetres: 0.5 — 2.5 mm²
AWG: 1 / 0
