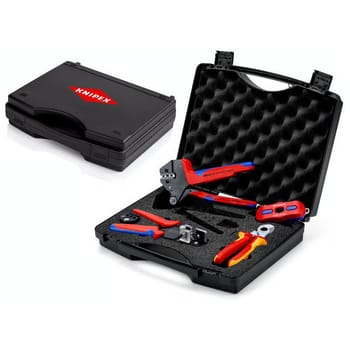

Knipex 97 91 04 V03 Solar Installation Tool Set MC4 / MC4 Evo 2 PV Plug Type Connectors

The Knipex 97 91 04 V03 Solar Installation Tool Set is a professional-grade kit designed specifically for photovoltaic installation and maintenance work involving MC4 and MC4 Evo 2 PV plug type connectors.

At the heart of the set is the Knipex 97 43 66 EVO Crimp System Pliers, factory-calibrated for accurate, repeatable crimps on PV connectors up to 10mm². This ensures consistent, reliable connections that meet the demanding requirements of solar installations.

The kit also includes a dedicated locator for MC4 series connectors, a precision insulation stripper optimised for 4.0mm², 6.0mm² and 10.0mm² conductors, and heavy-duty cable shears capable of cutting copper cable up to 15mm in diameter. A specialised mounting tool set enables secure tightening of connector housings and easy unlocking of MC4 and MC4 Evo 2 connections during servicing work.

The Crimp System Pliers are compatible with a wide range of additional Knipex crimping dies and locators, giving access to almost 1,000 further crimping applications — making this an expandable, long-term investment for solar professionals.

Suitable for solar installers, electrical contractors and renewable energy professionals, this set covers the full range of tasks from cable preparation through to connector assembly and maintenance. All components are housed in a precision-cut foam insert within a durable impact-resistant plastic carry case, keeping tools organised and protected on site.

Features and Benefits:
• Professional solar installation kit for MC4 and MC4 Evo 2 PV plug type connectors
• Knipex 97 43 66 EVO Crimp System Pliers factory-calibrated for accurate, repeatable crimps
• Locator included for precise processing of MC4 series photovoltaic connectors
• Cable shears cut copper cable up to 15mm diameter
• Precision insulation stripper designed for 4.0mm², 6.0mm² and 10.0mm² conductors
• Mounting tool set for tightening connector housings and releasing plug connections
• Expandable system compatible with additional Knipex crimping dies and locators
• Foam insert provides organised storage and protection for all components
• Supplied in a durable impact-resistant plastic carry case
• Ideal for solar installation, photovoltaic maintenance and renewable energy applications

Specifications:
Product Code: 97 91 04 V03
Application: MC4 and MC4 Evo 2 Photovoltaic Connectors
Connector Capacity: Up to 10mm²
Cable Shear Capacity: Copper Cable up to Ø15mm
Insulation Stripper Sizes: 4.0mm², 6.0mm², 10.0mm²
Storage: Impact-Resistant Plastic Case with Foam Insert
Suitable For: Solar Installation, Photovoltaic Maintenance and Renewable Energy Applications

Contents:
Knipex 97 43 66 EVO Crimp System Pliers
Knipex 97 49 71 1 Locator for MC4 Connectors
Knipex 95 16 165 Cable Shears
Knipex 12 12 12 Precision Insulation Stripper
Knipex 97 49 66 3 Mounting Tool Set for MC4 / MC4 Evo 2 Connectors
Foam Storage Insert
Impact-Resistant Plastic Carry Case
