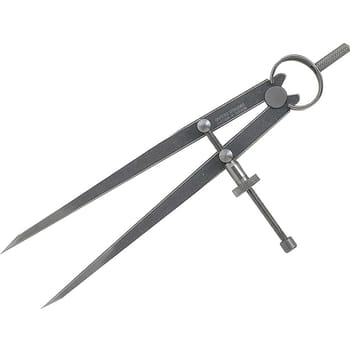

Moore and Wright Spring Divider

The Moore & Wright 506 Spring Divider with 150mm (6in) capacity is the largest model in the range, designed for applications requiring extended reach and greater working spans. This professional-sized divider is particularly suited to larger components, sheet metal work, and engineering tasks where wider circles and longer measurements need to be scribed or transferred.

Manufactured from polished tool steel with points hardened to over 550Hv, this divider provides exceptional durability and maintains accuracy even with regular use. The bow spring ensures uniform tension throughout the extended working range, whilst the centrally mounted adjustment screw delivers precise control for fine adjustments. The 150mm nominal size represents the distance between the centre of the roller and the working ends of the legs, offering maximum versatility for demanding workshop applications.

Features and Benefits:
• 150mm (6in) capacity for larger work pieces
• Hardened points over 550Hv for extended durability
• Bow spring maintains consistent tension across full range
• Centrally mounted adjustment screw for precise control
• BS3123 compliant standards

Contents:
• 1 x Moore & Wright 506 Spring Divider 150mm (6in) in Retail Packaging

Specifications:
Size (mm): 150
Size (in): 6
