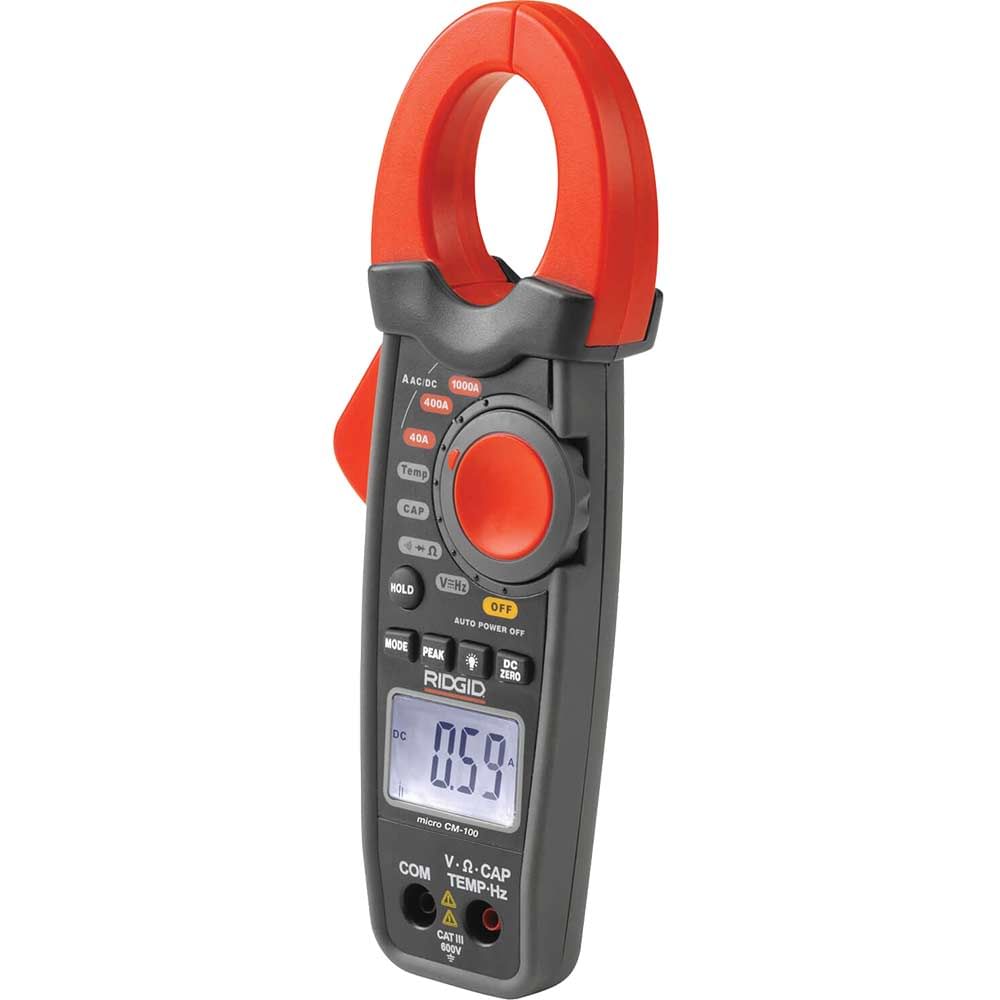

Ridgid CM 100 Micro Clamp Meter

The Ridgid CM-100 Micro Clamp Meter is a professional digital clamp meter designed for electrical testing and diagnostics. This true RMS and AutoRanging instrument combines the functionality of a clamp meter with multimeter capabilities, making it a versatile tool for electricians and contractors working with both AC and DC circuits.

The compact design features a clamp capacity for cables up to 30mm outside diameter, whilst measuring current from 40A up to 1,000A AC/DC. The meter provides 8 additional functions including resistance measurement (400O to 40MO), capacitance testing (4nF to 40mF), frequency measurement up to 4kHz, plus diode and continuity testing capabilities.

Ideal for electrical installation work, maintenance tasks and fault-finding in confined spaces, the slim double-moulded construction allows for convenient one-handed operation in tight cable compartments. The 4,000 count backlit LCD display ensures clear readings in all lighting conditions, whilst data hold and peak hold functions capture measurements for detailed analysis. The integrated bar graph display provides visual feedback during testing.

The meter includes Type K temperature probe capability, measuring from -40°C to 1,000°C, extending its usefulness for HVAC and industrial applications. With CAT III 600V overload protection and automatic polarity indication, the CM-100 delivers safe, accurate measurements for professional tradespeople.

Features and Benefits:
• True RMS and AutoRanging for accurate measurements across varying loads
• Compact clamp design for one-handed operation in confined spaces
• Dual AC/DC current measurement up to 1,000A
• Backlit LCD display with data hold and peak hold functions
• Temperature measurement capability from -40°C to 1,000°C
• CAT III 600V overload protection for safe operation
• Complete kit includes carrying case, test leads, temperature probe and battery

Specifications:
Max. Voltage (V): 1000
Power Source: 9V battery (included)
Display: 4,000 Count backlit LCD
Clamp size: Max. 30mm O.D. cable
Overload protection: CAT III 600V
Polarity Indication: Yes, automatic
AutoRanging: Yes
True RMS: Yes
Data and Peak Hold: Yes
Bar Graph Display: Yes
Current AC/DC: 40A - 1,000A
Temperature: -40° - 1,000°C
Resistance: 400O - 40MO
Capacitance: 4nF - 40mF
Frequency: Up to 4kHz
Diode Test: 1.5V
Continuity Test: 35O
