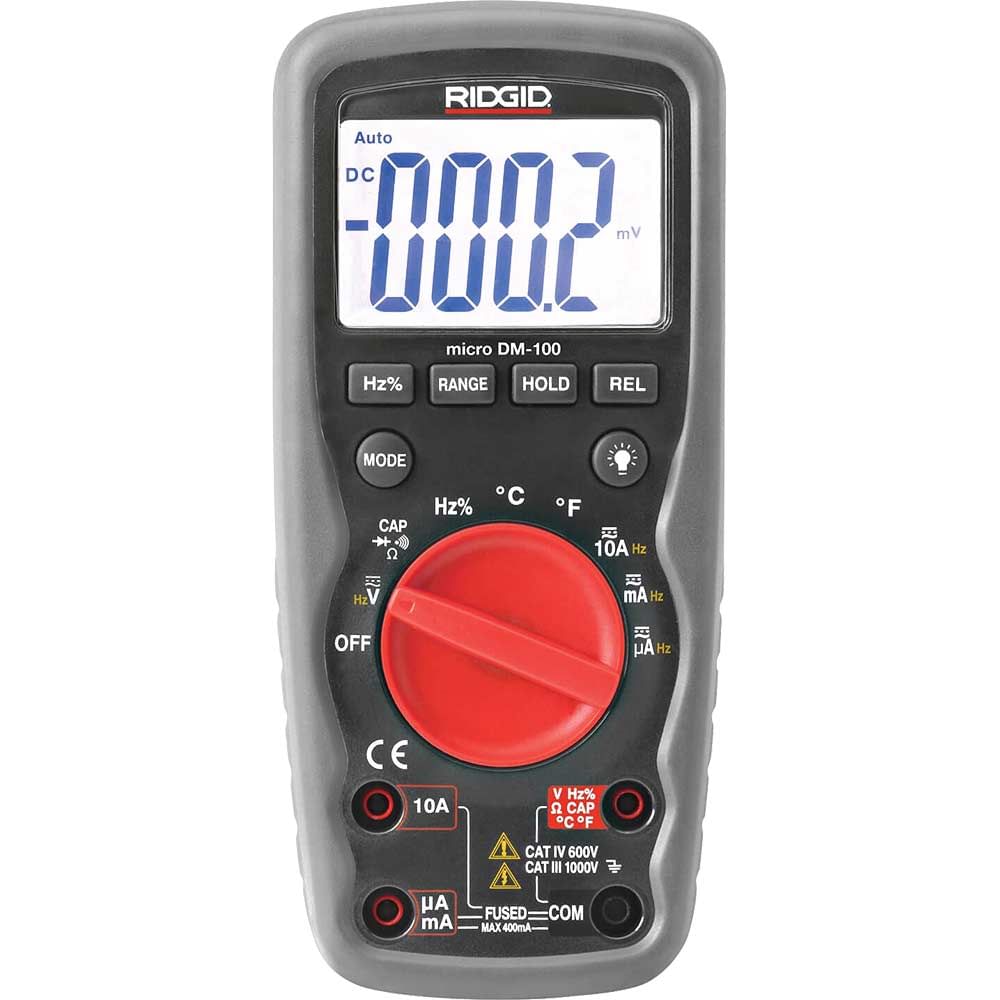

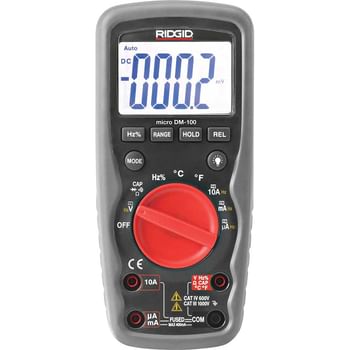

Ridgid DM100 Micro Digital Multimeter

The Ridgid DM100 Micro Digital Multimeter is a professional-grade True RMS testing instrument designed for electricians and contractors working in demanding environments. This compact digital multimeter combines AutoRanging technology with 11 different electrical functions, delivering accurate measurements for AC/DC voltage and current up to 1,000 volts, plus capacitance, resistance, frequency, duty cycle, and temperature readings from -20°C to 760°C.

Built to withstand the harshest job site conditions, the DM-100 features double-moulded Class II insulation with IP67 water-resistant housing rated to 1 metre submersion. The drop-proof construction and industrial safety ratings of CAT III-1000V and CAT IV-600V make this multimeter ideal for industrial electrical installations, maintenance work, and commercial contracting applications.

The 4000-count backlit LCD display ensures clear readings even in poorly lit environments, whilst the automatic polarity indication and auto power-off function (after 15 minutes) enhance usability during extended testing sessions. Both AutoRanging and manual ranging modes provide flexibility for different testing scenarios, from precise component testing to rapid circuit verification.

Supplied ready for immediate use with a soft carrying case, double-moulded test leads, Type K temperature probe, and 9V battery, this multimeter offers comprehensive functionality for electrical diagnostics and troubleshooting.

Features and Benefits:
• True RMS measurement technology ensures accurate readings with non-linear loads
• IP67 water-resistant and drop-proof housing for reliability in harsh conditions
• 11 electrical functions including temperature measurement with Type K probe
• AutoRanging capability for fast, convenient testing
• Large backlit display for easy reading in all lighting conditions
• CAT III-1000V and CAT IV-600V safety ratings for industrial applications

Specifications:
Max. Voltage (V): 1000
Power Source: 9V battery (included)
Display: 4000 Count Backlit LCD
Overload Protection: CAT III and IV 1,000V/600V
Fuses: 0.5A and 10A - 1,000V
Insulation: Class II, double moulded
IP Rating: IP-67 water-resistant (1m)
Polarity Indication: Yes, automatic
Auto Power-Off: Yes, after 15 minutes
AutoRanging: Yes
Manual Ranging: Yes
True RMS: Yes
Current AC/DC: 400.0µA - 10A
Temperature: -20°C - 760°C
Resistance: 400.0O - 40.00MO
Capacitance: 4.000nF - 200.0µF
Frequency: 9.999Hz - 9.999MHz
Duty Cycle: 0.1% - 99.9%
Diode Check: 1.5V
Continuity Test: 150O
