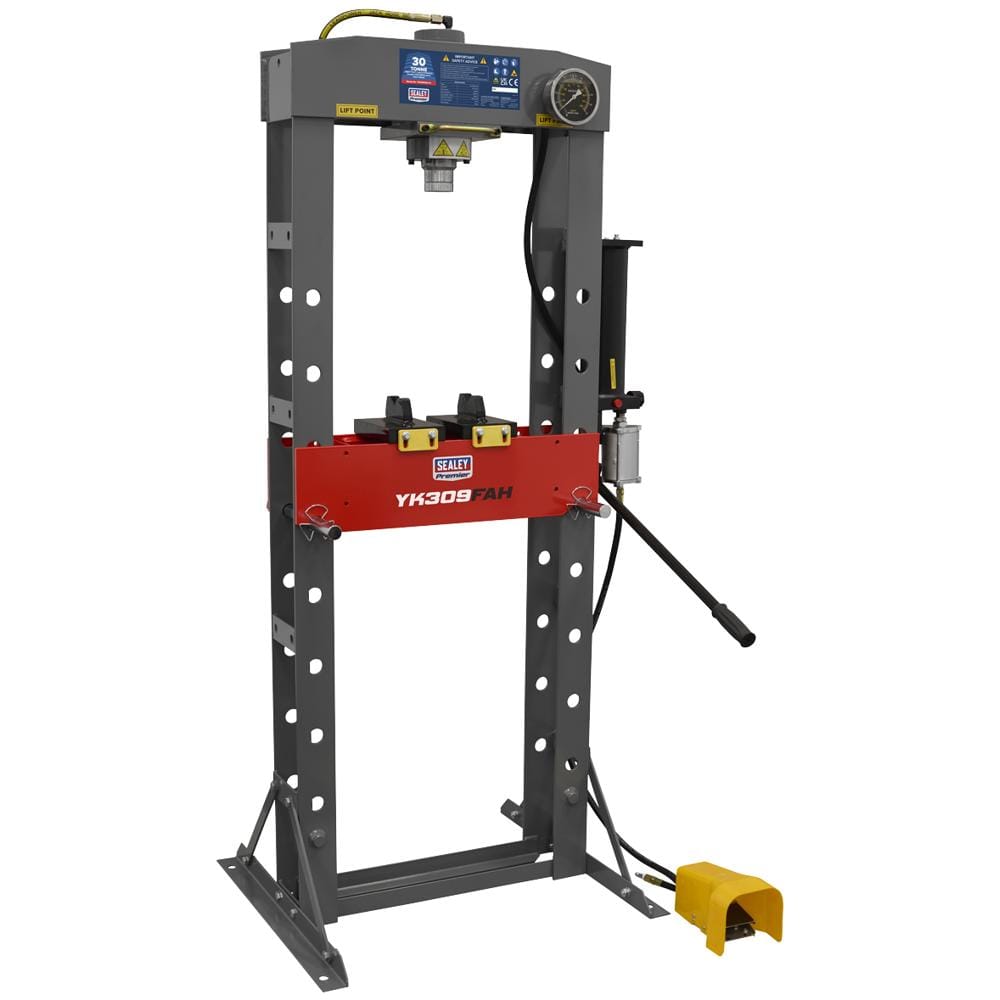

Sealey Air Hydraulic Press

The 30 Tonne Sealey Air Hydraulic Press delivers substantial pressing force in a compact format, ideal for general workshop applications including bearing removal, bushing installation, and component assembly. This model features a sliding hydraulic ram assembly with 190mm of lateral travel, allowing you to position workpieces off-centre for maximum flexibility when dealing with asymmetric or awkward components.

The heavy-duty steel frame construction provides a stable platform, whilst the side-mounted air motor powers the hydraulic pump unit to eliminate manual pumping effort. The 2-speed manual operation gives you precise control over ram speed, and the integrated pressure gauge ensures you can monitor force application accurately. With a 164mm table aperture, this press handles a wide range of pressing tasks efficiently.

Features and Benefits:
• 30 tonne capacity suitable for most general workshop pressing applications
• 190mm lateral ram travel for off-centre pressing flexibility
• 164mm table aperture accommodates various workpiece sizes
• Ram pressure gauge for accurate force monitoring
• Complete with flat pressing plate and V-blocks
• 5 year guarantee for long-term reliability

Specifications:
Air Consumption: 9cfm
Bench or Floor Mounting: Floor
Brand: Premier
Capacity: 30 Tonne
Gauge Included: Yes
Lateral Ram Travel: 190mm
Maximum Height - Ram to Table: 1035mm
Minimum Height - Ram to Table: 55mm
Nett Weight: 132kg
Operating Table Width: 490mm
Optional Accessories: YKSG20 - Safety Guard, YKPP8 - Press Pin Set
Overall Height: 1775mm
Ram Diameter: Ø70mm
Ram Stroke: 150mm
Table Aperture: 152mm
Type: Air/Hydraulic
Working Table Depth: 172mm
Working Table Width: 650mm
