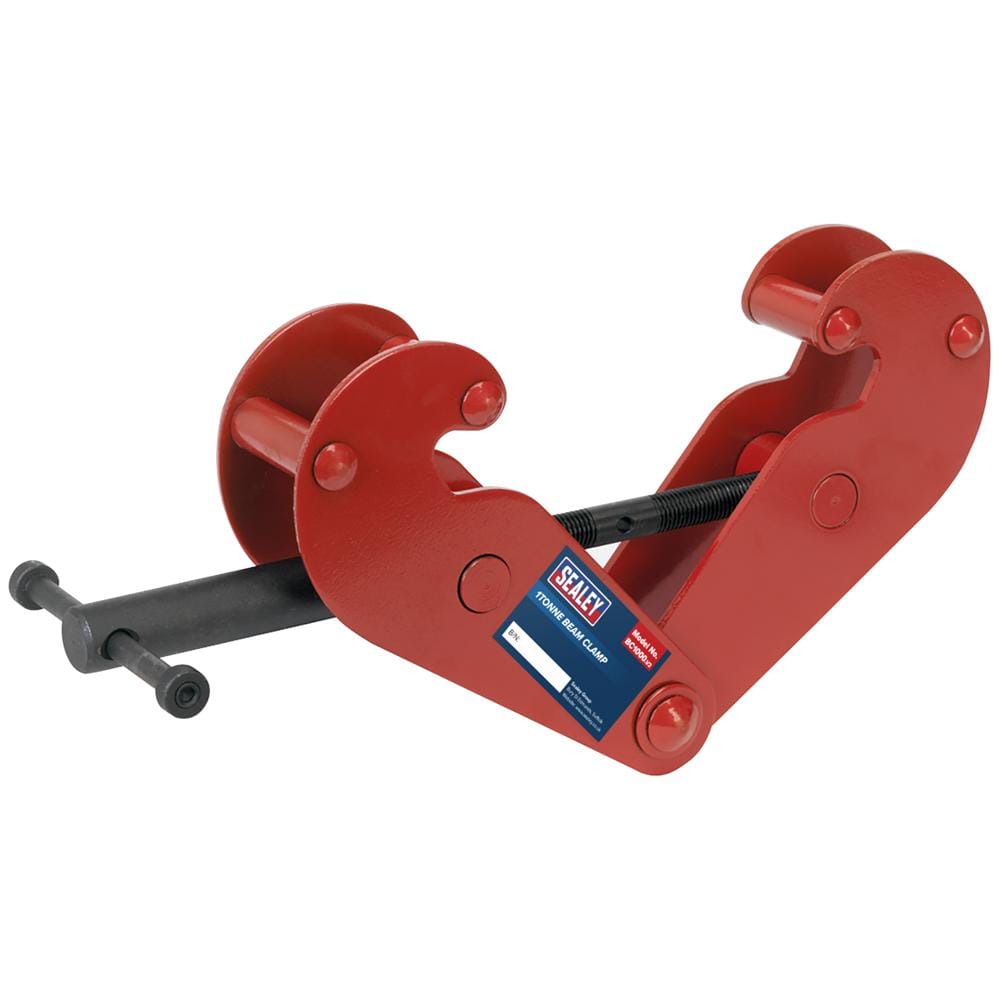

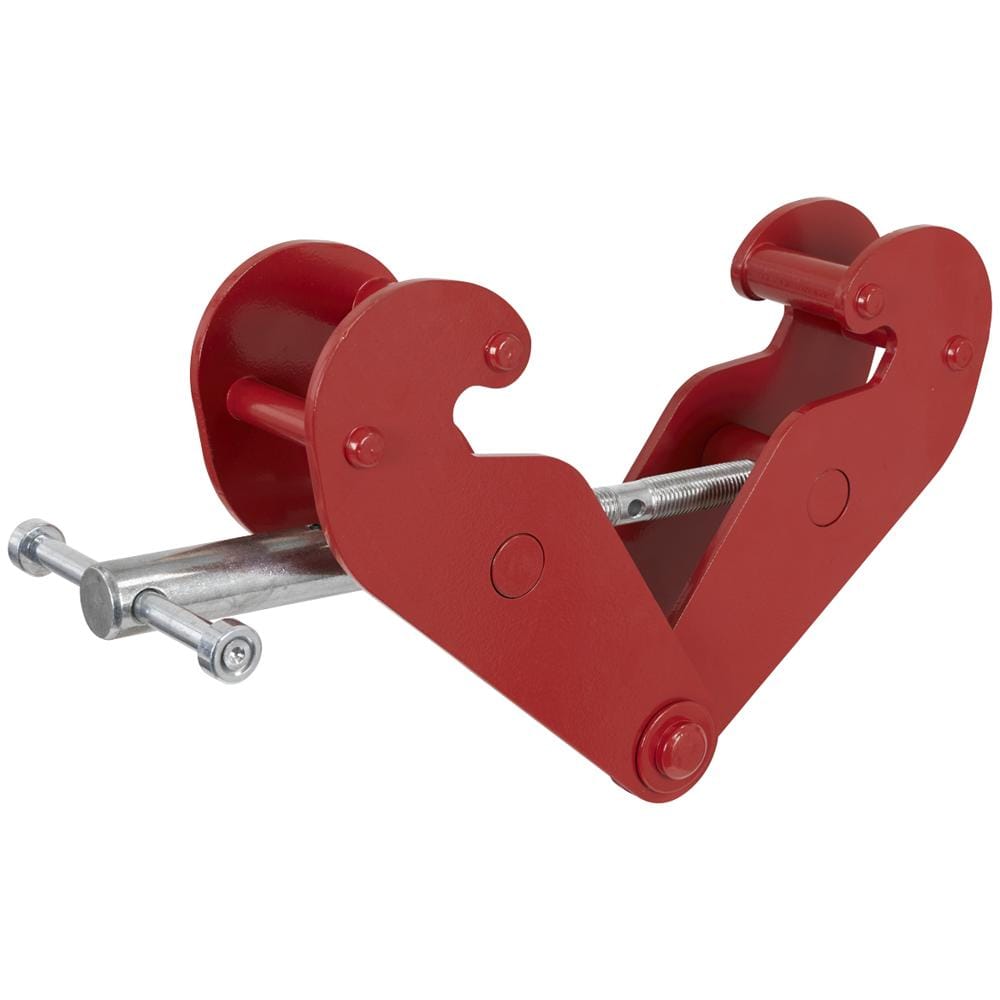

Sealey Beam Clamp

The Sealey BC1000 Beam Clamp offers a 1 tonne capacity, making it ideal for light to medium-duty lifting operations. This compact clamp provides semi-permanent attachment to steel beams, serving as a dependable lifting point for chain blocks, hoists and lifting tackle in workshops and industrial settings where lighter loads are handled.

The 1 tonne variant is particularly suited to smaller-scale operations, maintenance tasks and installations where space constraints are a factor. Its versatility extends beyond simple lifting, as the clamp can also be used for transferring steel beams and as a pulling clamp for various applications.

The low profile afforded by the integral pivot and lifting point ensures the BC1000 fits into tight spaces whilst maintaining full functionality and safety.

Features and Benefits:
• 1 tonne capacity suitable for light to medium-duty lifting tasks
• Semi-permanent beam attachment for reliable, long-term use
• Integral pivot/lifting point maintains low profile for space-efficient installation
• Multi-functional design for lifting, transferring and pulling operations

Specifications:
Adjustable Beam Width: 75-220mm
Brand: Sealey
Capacity: 1000kg
Dimensions: (A) - 260mm, (B) - 180-360mm, (C) - 64mm, (D) - 5mm, (E) - 215mm, (F) - 102-155mm, (G) - 25mm, (H) - Ø22mm
Nett Weight: 4.2kg
Note: Refer to catalogue for diagram.
