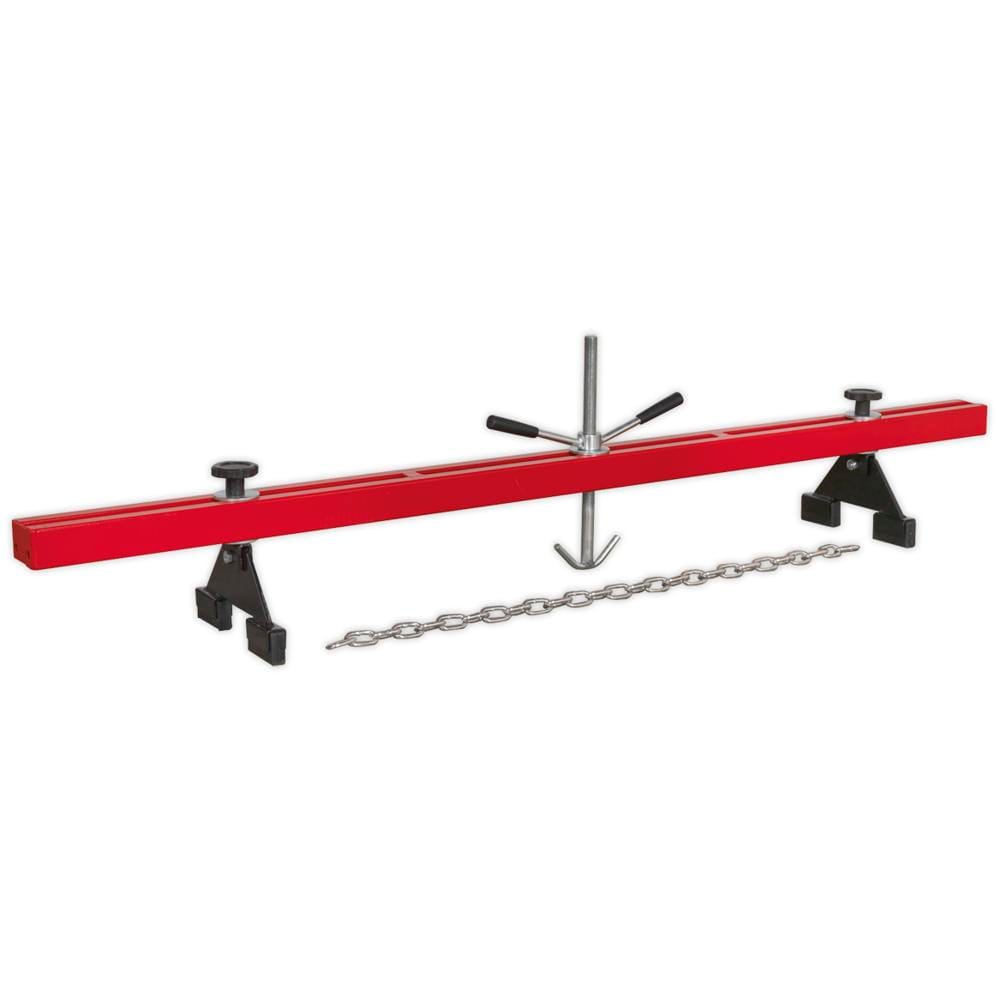

Sealey Engine Support Beam

The Sealey Engine Support Beam with 300kg capacity is perfectly suited for standard passenger vehicles and lighter commercial engines. This model provides reliable support for routine maintenance tasks including anti-vibration mounting replacement and gearbox removal operations.

The beam is supported on rubber feet which provide excellent stability whilst protecting workshop flooring from damage. Fine adjustment control is obtained through an integrated screw/hook mechanism, allowing precise positioning of the engine during delicate procedures. This makes it particularly valuable when replacing certain body panels that require engine movement for access.

Supplied complete with a length of chain, this support beam enables mechanics to work confidently on engine-related maintenance without the need for additional suspension equipment.

Features and Benefits:
• 300kg capacity ideal for standard passenger car engines
• Rubber feet provide stable, non-slip positioning
• Screw/hook mechanism for precise height adjustment
• Perfect for anti-vibration mounting replacement
• Aids safe gearbox and transmission removal
• Supplied with chain for secure engine attachment
• Model No. ES300

Specifications:
Brand: Sealey
Capacity: 300kg
Maximum Width: 1580mm
Minimum Width: 585mm
Nett Weight: 11.8kg
Screw Travel: 230mm
