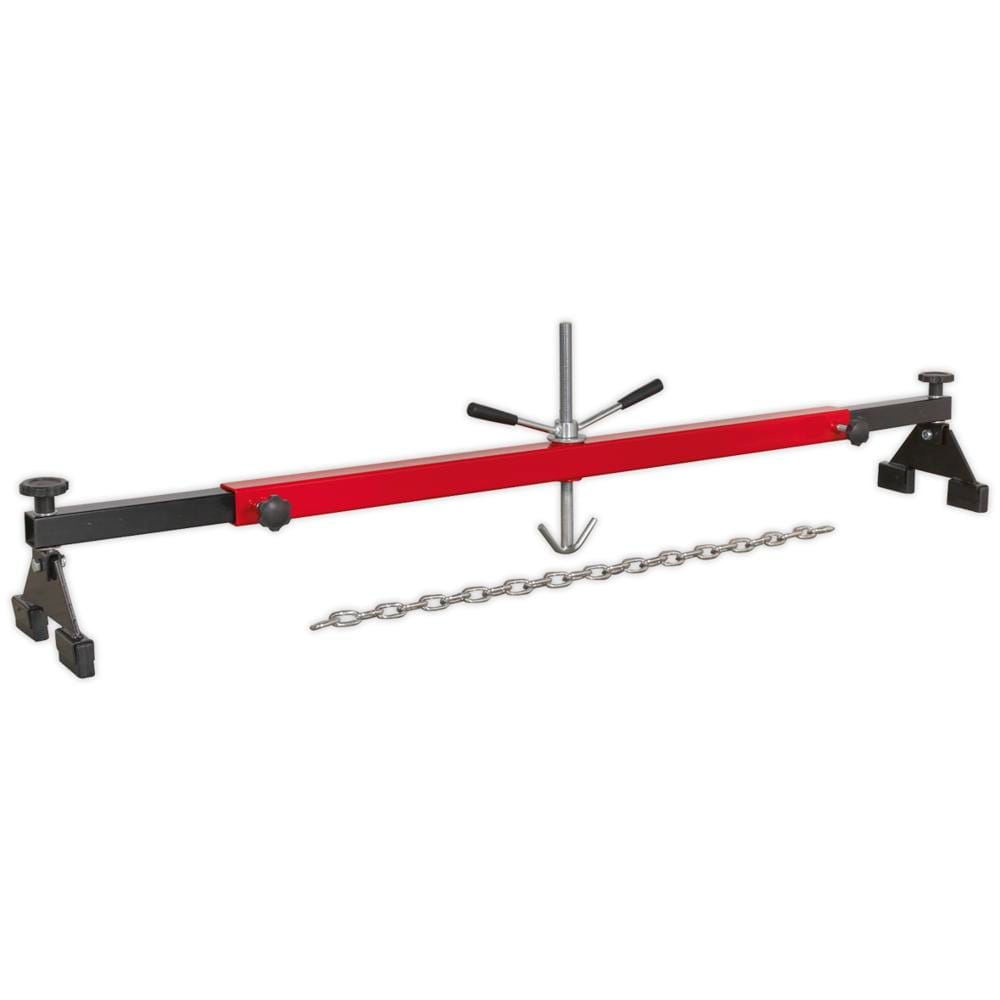

Sealey Engine Support Beam

The Sealey Engine Support Beam with 500kg capacity offers enhanced load-bearing capability for medium to large passenger vehicles and light commercial applications. This increased capacity variant provides the additional strength required for heavier four-cylinder and some six-cylinder engines during maintenance operations.

Designed to support and accurately position engines, this beam excels at holding engines steady during anti-vibration mounting replacement and body panel work. The rubber feet ensure stable support throughout the maintenance process, whilst the screw/hook mechanism delivers fine adjustment control for precise engine positioning.

Supplied with a length of chain for secure attachment, this support beam is an invaluable aid when removing gearboxes and transmissions, allowing mechanics to work safely and efficiently on more substantial vehicles.

Features and Benefits:
• 500kg capacity for heavier passenger and light commercial engines
• Rubber feet ensure stable, secure positioning
• Screw/hook mechanism enables fine height adjustment
• Ideal for anti-vibration mounting replacement
• Facilitates safe gearbox and transmission removal
• Supplied complete with chain
• Model No. ES500

Specifications:
Brand: Sealey
Capacity: 500kg
Maximum Width: 1910mm
Minimum Width: 1120mm
Nett Weight: 12.9kg
Screw Travel: 230mm
