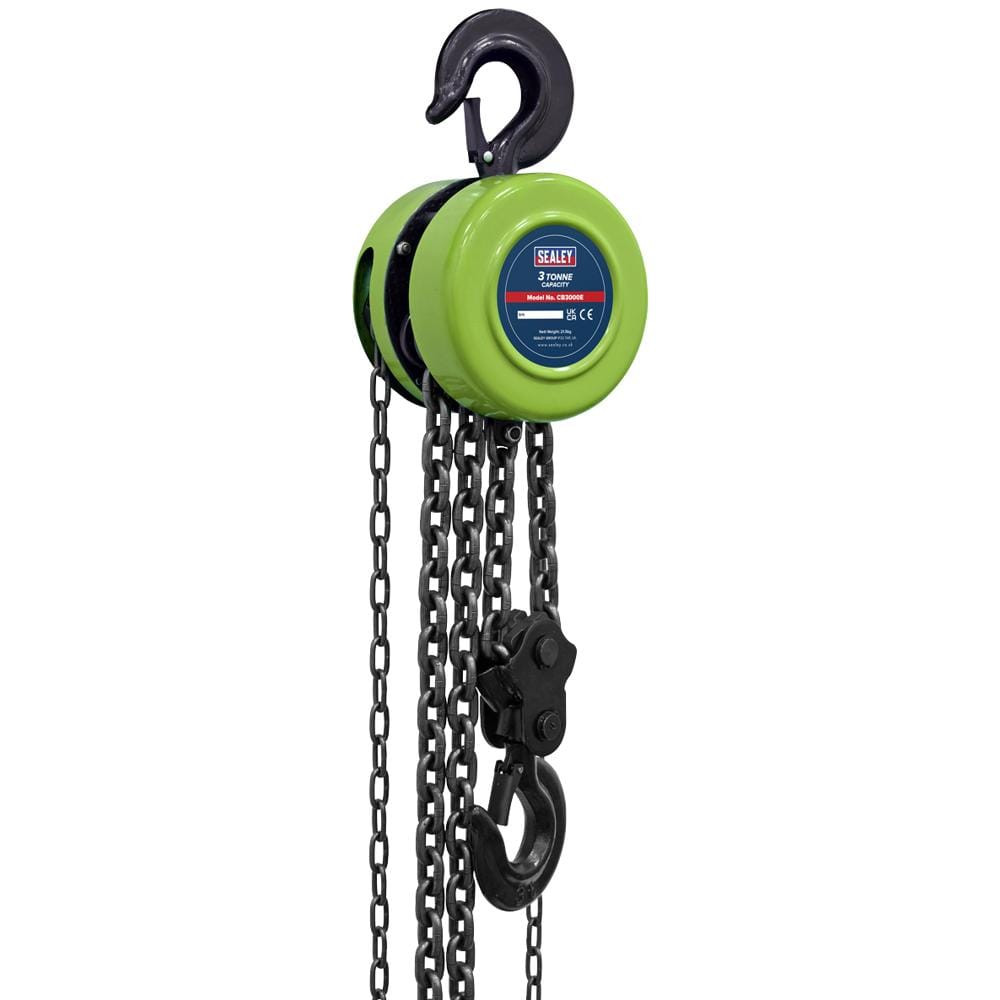

Sealey Heavy Duty Chain Lifting Block

The Sealey Heavy Duty Chain Lifting Block with 3 tonne capacity provides robust lifting performance for heavier industrial applications and automotive workshop tasks. Capable of handling loads up to 3000kg, this model is ideal for lifting engines, gearboxes, heavy machinery components, and other substantial equipment where reliable overhead lifting is essential.

Engineered with heat treated and ground gearing, this 3 tonne variant maintains smooth operation even when working at or near maximum capacity. The mechanical load brake delivers essential safety protection, preventing unintended load movement during positioning. All chains are manufactured from hardened alloy material, providing the strength and durability required for regular heavy-duty use.

Load hooks feature integrated safety latches to prevent accidental load release, whilst the compact gear housing design enables use in restricted overhead spaces. This combination of capacity and compact dimensions makes it versatile across various workshop and industrial environments.

Features and Benefits:
• 3 tonne capacity for heavy-duty lifting tasks
• Heat treated and ground gearing for reliable performance
• Mechanical load brake for safety assurance
• Hardened alloy chains for extended service life
• Safety latches on load hooks
• Compact housing suitable for limited headroom
• Model No. CB3000E

Specifications:
Brand: Sealey
Capacity: 3000kg
Chain Falls: 2
Head Room: 470mm
Load Chain Diameter: Ø8mm
Maximum Hook Capacity Ø: 38mm
Nett Weight: 21.5kg
Pulling Effort: 404N
Safe Working Load: 3000kg
Standard Lift: 3m
