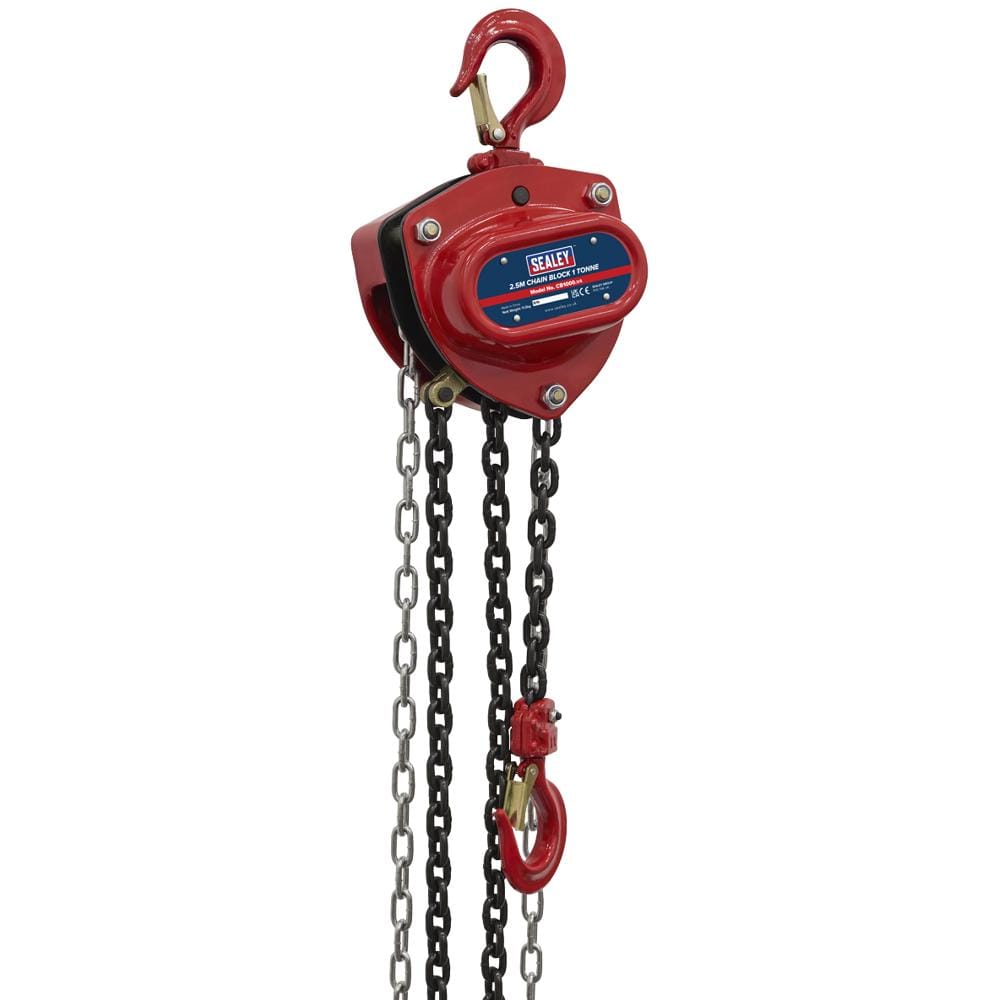

Sealey Lifting Chain Block

The Sealey CB1000 is a 1 tonne capacity lifting chain block designed for medium-duty lifting operations across workshop, construction, and industrial settings. This versatile capacity makes it ideal for engine removal, machinery positioning, and general maintenance tasks requiring reliable, controlled lifting.

Fitted with a heat-treated and ground triple-spur geared shaft and pinion, the CB1000 delivers efficient power transmission and smooth operation. The mechanical load brake provides extra safety, ensuring loads remain secure even when the operator releases the hand chain. All chains are manufactured from hardened alloy material for maximum strength and wear resistance, whilst load hooks feature safety latches to prevent accidental disengagement.

The compact gear housing design is particularly advantageous in environments where vertical space is limited, allowing professional tradespeople to work effectively in garages, workshops, and confined industrial areas. Built to withstand demanding daily use, this 1 tonne chain block represents excellent value for professional users.

Features and Benefits:
• 1 tonne capacity suitable for medium-duty lifting tasks
• Mechanical load brake for extra safety and load control
• Heat-treated triple-spur gearing for durability and efficiency
• Hardened alloy chains withstand heavy use
• Compact housing for restricted headroom applications

Specifications:
Brand: Sealey
Capacity: 1000kg
Head Room: 383mm
Hook Aperture: 27mm
Load Chain Diameter: Ø6mm
Maximum Hook Capacity Ø: 40mm
Nett Weight: 11.5kg
Pulling Effort: 284N
Safe Working Load: 1000kg
Size (W x D): N/A
Standard Lift: 2.5m
Test Load: 1500kg
