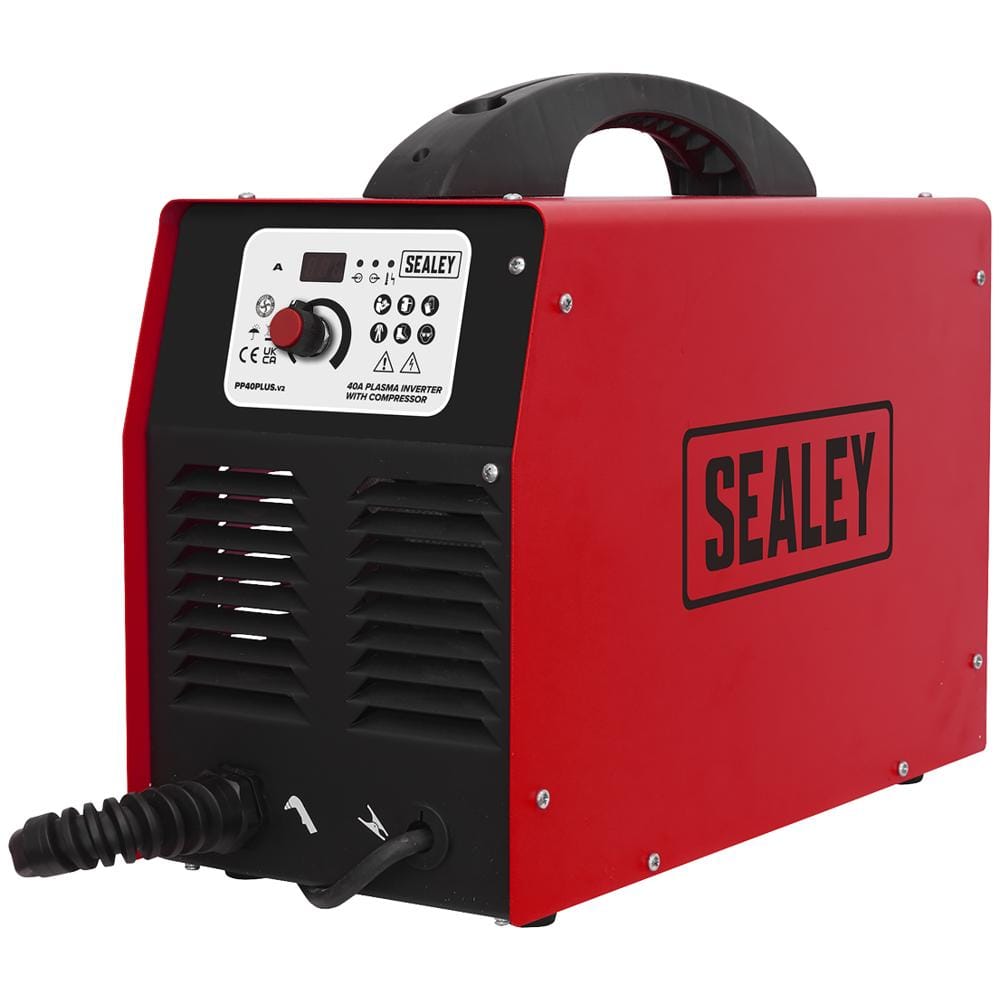

Sealey PP40PLUS Inverter Plasma Cutter with Compressor

The Sealey PP40PLUS is an inverter plasma cutter with integral compressor, designed for cutting a wide range of metals in workshop and site applications. This compact unit combines professional cutting performance with exceptional portability, featuring built-in air compression that eliminates the need for external equipment whilst maintaining a remarkably lightweight 18.5kg construction.

The inverter power supply delivers adjustable output from 15-40A via an intuitive dial control, with an LED display providing clear visibility of the current setting. Three indication lights monitor voltage input, amperage output and thermal overload status, giving operators complete control over the cutting process. The unit comes complete with a 4m plasma torch, earth cable and 4m gas hose, providing excellent working range straight from the box.

This plasma cutter uses air to strike the arc, making it particularly suitable for use near electrical equipment where conventional cutting methods may pose risks. The system is ideal for cutting steel, stainless steel, galvanized steel, aluminium, copper and brass up to 10mm thickness, offering versatile material capability for fabricators, maintenance engineers and general metalworkers.

Features and Benefits:
• Integral compressor eliminates need for separate air supply equipment
• Lightweight 18.5kg design for excellent portability between jobs
• LED display with three indicator lights for precise operation monitoring
• 4m torch and cables provide generous working reach
• Air-strike arc system safe for use near electrical equipment
• Cuts multiple metals including steel, stainless, aluminium and brass

Specifications:
• Brand: Sealey
• Nett Weight: 18.5kg
• Power Output: 15-40A
• Duty Cycle: 20% @ 40A
• Max Cutting Thickness: 10mm
• Air Requirements: Integral Compressor
• Air Pressure: N/A
• Absorbed Power: 6.9kw
• Supply: 230V
• Insulation: F
• Protection: IP21S
• Accessories: Yes
• Electrode, Short (Pack of 5): PP40PLUS.E (x5)
• Nozzle, Short (Pack of 5): PP40PLUS.N (x5)
• Diffuser (Pack of 5): PP40PLUS.D (x5)
• Safety Cap (Pack of 2): PP40PLUS.SC (x2)
• Note: *To achieve maximum power a 32A supply may be required
