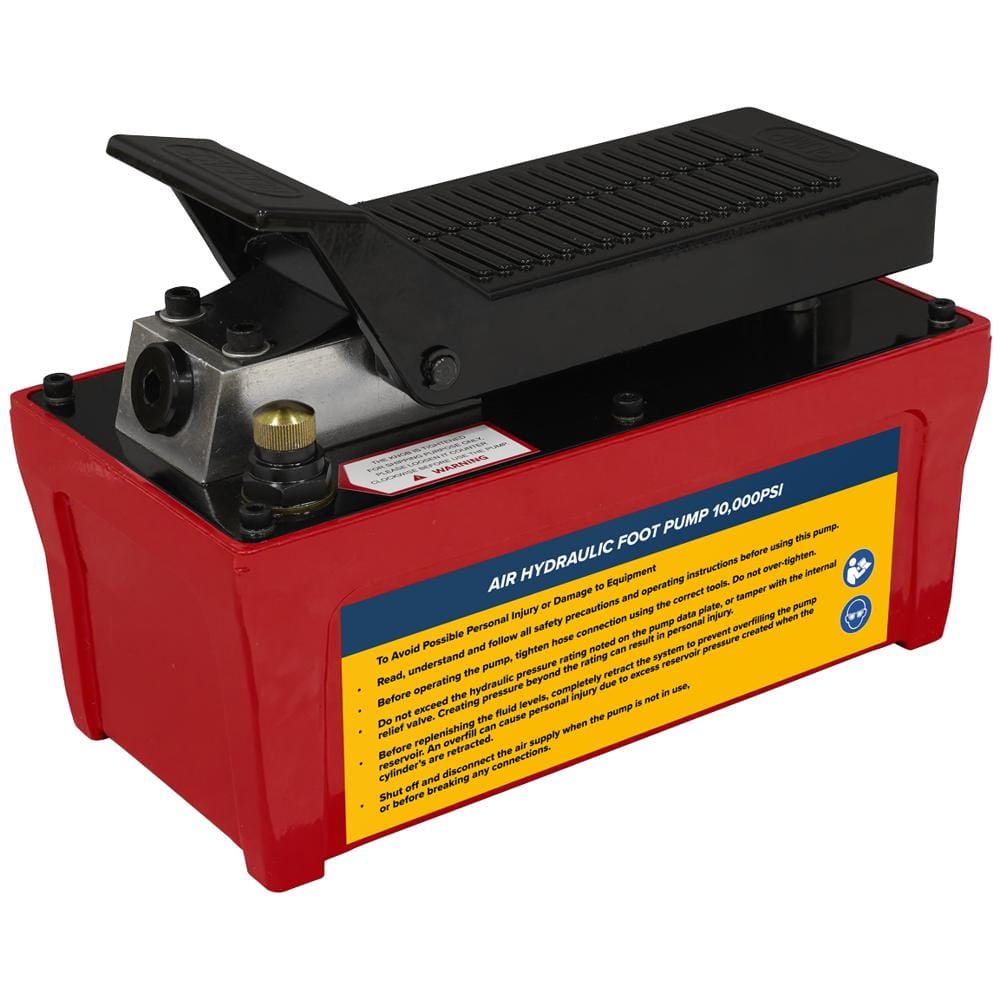

Sealey RE109 Air Hydraulic Foot Pump

The Sealey RE109 Air Hydraulic Foot Pump is a compressed air-powered hydraulic pump designed to deliver hands-free operation across a wide range of hydraulic applications.

Powered by compressed air rather than manual effort, this foot pump connects to your workshop air supply to drive the hydraulic system efficiently and consistently. The foot-operated design frees both hands for positioning work or handling components, making it particularly well-suited to body repair work, hydraulic presses, and rams.

With a 1,600ml oil reserve and a maximum oil pressure of 10,000psi, the RE109 is capable of handling demanding hydraulic tasks with ease. The 3/8" outlet provides broad compatibility with most hydraulic-powered tools, and the pump is designed to accept a hydraulic hose (Sealey Model No. RE111) to extend its versatility further.

The air input range of 101–145psi means it will work comfortably with most standard workshop compressors. At 8.62kg, it offers a solid, stable platform during operation without being cumbersome to reposition around the workshop.

Features and Benefits:
• Foot-operated design allows hands-free use during hydraulic tasks
• Compressed air-powered for efficient, low-effort operation
• 10,000psi maximum oil pressure for demanding applications
• 1,600ml oil capacity for sustained use
• 3/8" outlet compatible with most hydraulic-powered tools
• Compatible with Sealey RE111 hydraulic hose for extended reach

Specifications:
Brand: Sealey
Maximum Air Input: 101–145psi
Oil Pressure: 10,000psi
Oil Capacity: 1,600ml
Nett Weight: 8.62kg
Outlet: 3/8"
