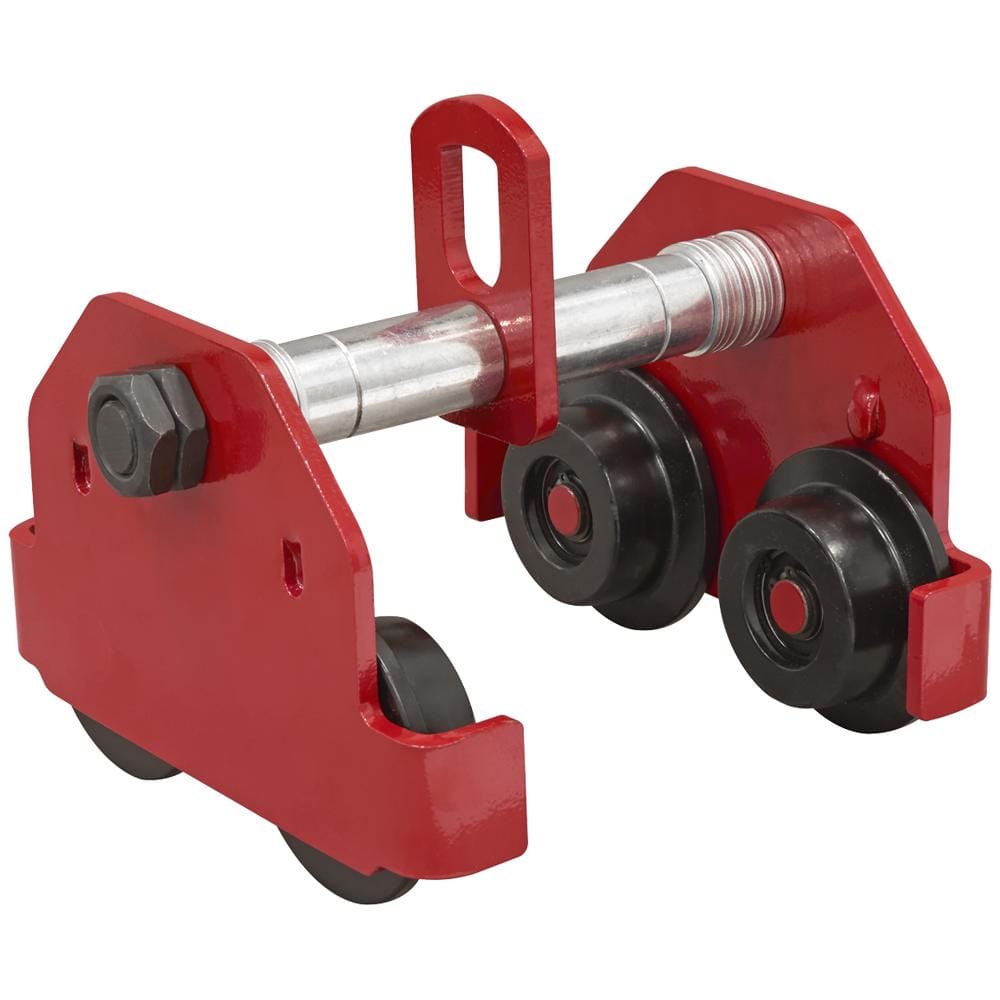

Sealey RSJ Beam Trolley

The 1 Tonne capacity Sealey RSJ Beam Trolley (Model PT1000) delivers robust lifting performance for medium-duty applications. This variant is ideal for workshops and industrial environments requiring reliable load positioning up to 1000kg.

Manufactured from high-quality steel with a protective powder-coated finish, this trolley provides exceptional durability and resistance to wear. The adjustable design accommodates I-beam and RSJ widths between 80-146mm, offering excellent versatility across different installation configurations.

The PT1000 includes anti-drop plates as a crucial safety feature, providing added security during lifting operations. Compatible with chain blocks, lever hoists, and other standard lifting equipment, this beam trolley integrates seamlessly into your existing lifting systems.

Features and Benefits:
• 1 tonne capacity suitable for medium-duty lifting tasks
• High-quality steel construction for strength and longevity
• Powder-coated finish ensures long-lasting protection
• Adjustable to fit beam widths 80-146mm
• Anti-drop plates provide enhanced safety
• Compatible with chain blocks and lever hoists

Specifications:
Brand: Sealey
Nett Weight: 7kg
Capacity: 1000kg
Track Width Adjustable Range: 64-140mm
Minimum Curve Radius: 1000mm
A: 255mm
B: 127.5mm
C: 127.5mm
D: 104mm
E: 128mm
Weight: 13kg
Minimum Standard I-Beam Dimensions (D x W x Web): 125 x 75 x 5.5mm
Maximum Distance Between Spans: 2500mm
Maximum Standard I-Beam Dimensions (D x W x Web): 250 x 125 x 7.5mm
Maximum Distance Between Spans: 6000mm
