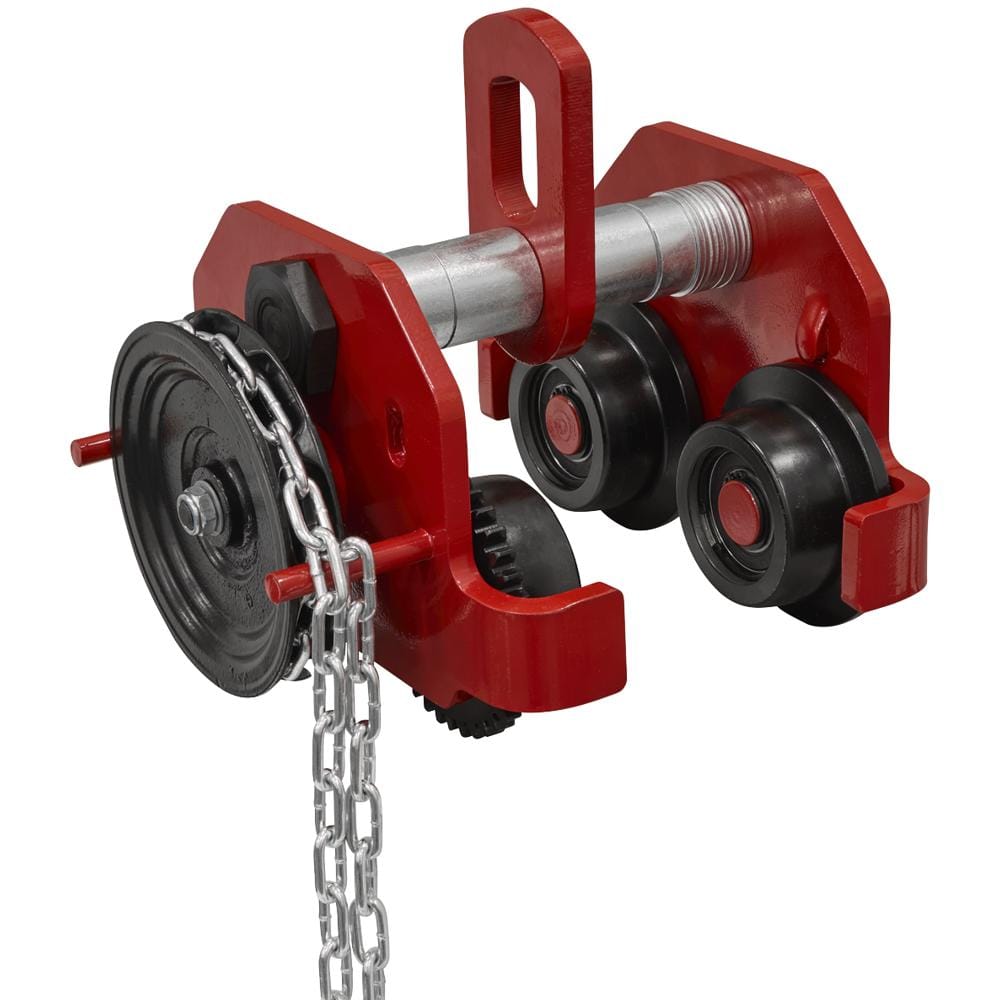

Sealey RSJ Geared Beam Trolley

The Sealey RSJ Geared Beam Trolley with 3 tonne capacity delivers maximum load-bearing performance for heavy-duty industrial applications. This high-capacity model is engineered for demanding environments where substantial loads need to be manoeuvred along I-beams or RSJs with precision and control. The 3 tonne rating makes it suitable for the heaviest workshop and construction site lifting requirements.

The geared block design enables operators to move even the heaviest loads along the gantry using chain operation, eliminating the need for strenuous manual handling. Wheel guards are incorporated to prevent contact with other trolleys mounted on the same load bearer, ensuring safe operation in busy multi-trolley installations.

Features and Benefits:
• 3 tonne capacity for heavy-duty industrial applications
• Geared chain mechanism for controlled movement of substantial loads
• Wheel guards prevent interference with adjacent trolleys
• Suitable for use with lever hoists and chain blocks
• Robust construction for demanding professional environments
• Designed for secure I-beam and RSJ mounting

Specifications:
Brand: Sealey
Nett Weight: 41kg
Capacity: 3000kg
Track Width Adjustable Range: 76-203mm
Minimum Curve Radius: 1500mm
A: 344mm
B: 250mm
C: 180mm
D: 150mm
E: 200mm
Weight: 41kg
Minimum Standard I-Beam Dimensions (D x W x Web): 200 x 100 x 7mm
Maximum Distance Between Spans: 2700mm
Maximum Standard I-Beam Dimensions (D x W x Web): 850 x 150 x 9mm
Maximum Distance Between Spans: 4500mm
Refer to catalogue for diagram: -
