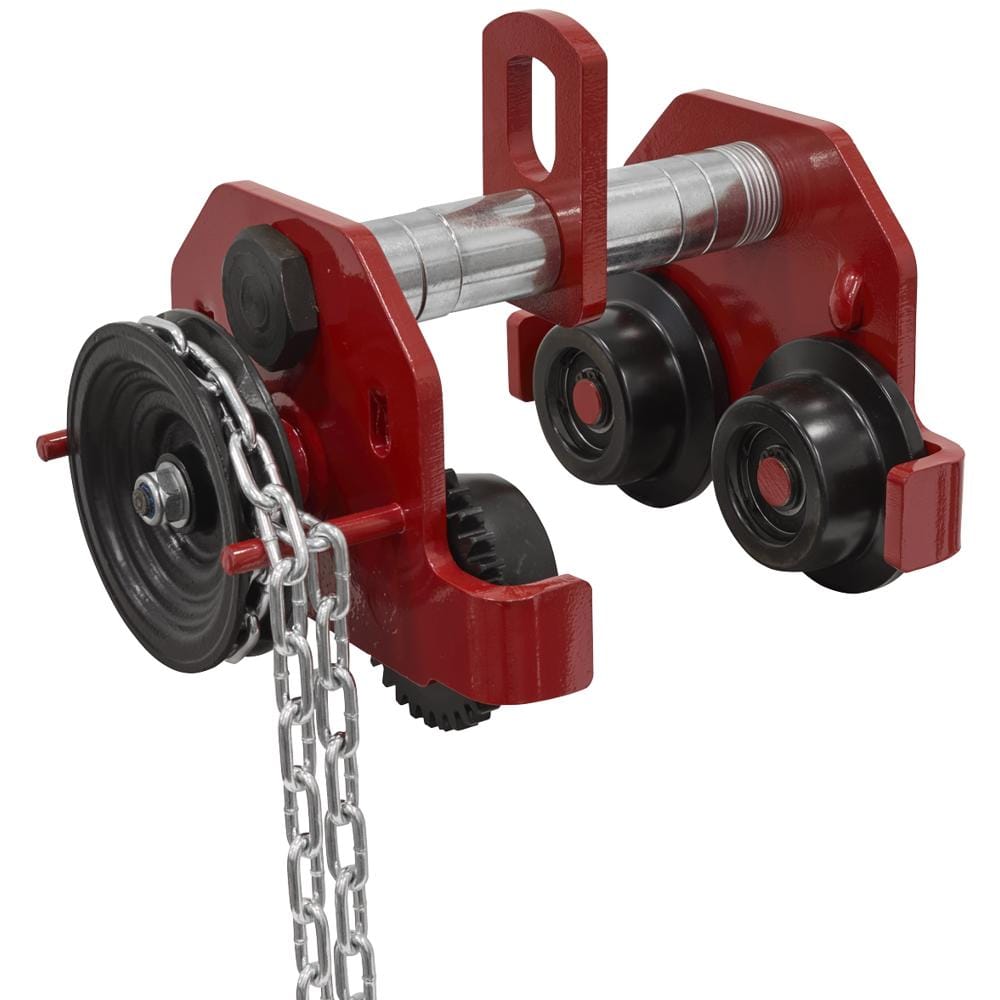

Sealey RSJ Geared Beam Trolley

The Sealey RSJ Geared Beam Trolley with 2 tonne capacity offers enhanced load-bearing capability for demanding industrial applications. This heavy-duty model features robust steel construction with a powder coat paint finish for excellent corrosion resistance, making it suitable for harsh workshop environments and extended service life. The 2 tonne capacity makes it ideal for medium to heavy loads that require precise positioning along gantry systems.

The geared mechanism enables controlled movement of substantial loads using chain operation, significantly reducing operator effort compared to manual pushing. Anti-drop plates are included for added security, providing peace of mind when handling valuable or hazardous materials.

Features and Benefits:
• 2 tonne capacity for medium to heavy-duty lifting tasks
• Heavy-duty steel construction ensures durability and longevity
• Powder coat finish provides corrosion resistance
• Anti-drop plates deliver enhanced safety during operation
• Geared chain system allows precise load positioning
• Compatible with lever hoists and chain blocks

Specifications:
Brand: Sealey
Nett Weight: 15.8kg
Capacity: 2000kg
Minimum Curve Radius: 1300mm
A: 255mm
B: 138mm
C: 138mm
D: 102mm
E: 128mm
Minimum Distance Between Spans: 3000mm
Maximum Distance Between Spans: 9000mm
Minimum Standard I-Beam Dimensions (D x W x Web): 180 x 100 x 6mm
Maximum Standard I-Beam Dimensions (D x W x Web): 350 x 150 x 9mm
Weight: 15.8kg
