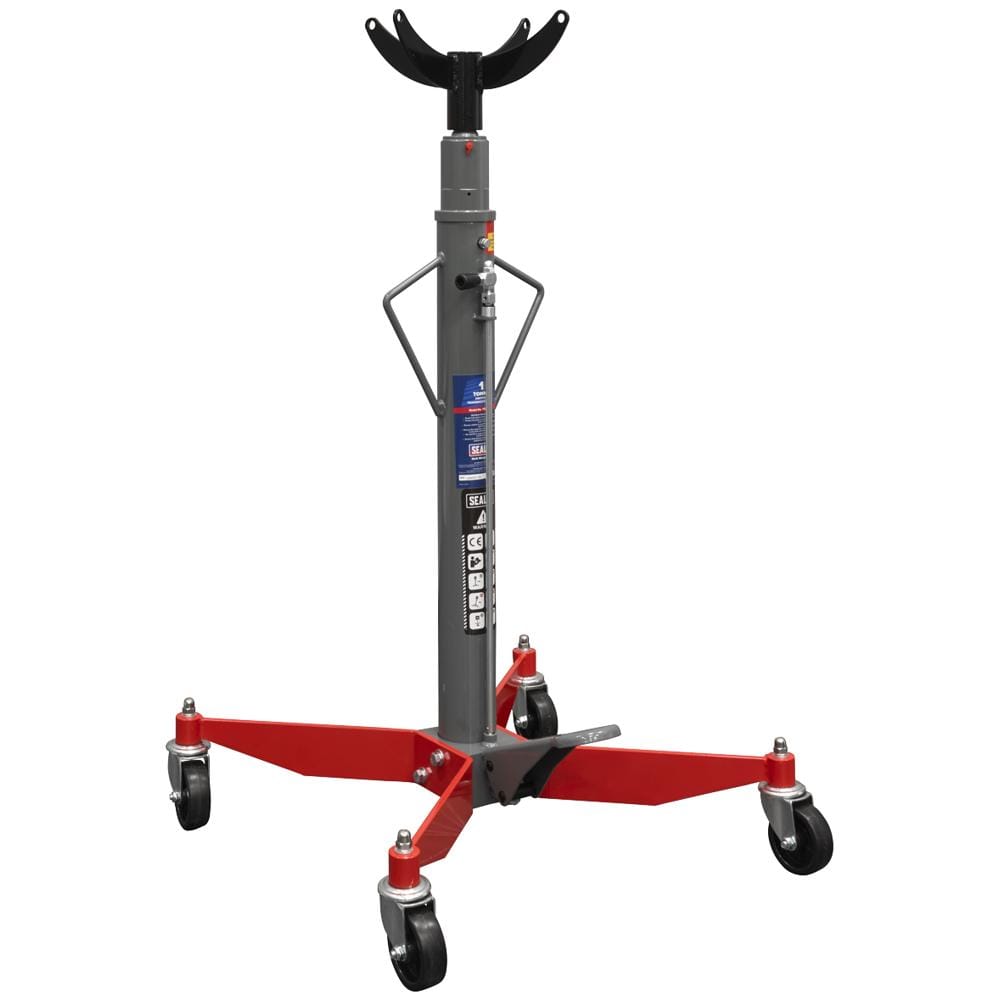

Sealey Vertical Quick Lift Transmission Jack

The Sealey 1 Tonne Vertical Quick Lift Transmission Jack (Model 1000TR) offers an ideal capacity for mid-range transmission and gearbox work in general workshop applications. This model features a high-speed lift mechanism – simply lift the piston to quickly reach the gearbox, whilst foot pedal operation keeps your hands free for positioning and adjustment.

Built to exacting standards with robust construction for long-term durability, this 1 tonne jack incorporates advanced safety features including a spring-loaded dead man's safety release control and 2-way hydraulic unit for controlled lowering. The extra-large castors deliver excellent manoeuvrability, and the enhanced hydraulic unit provides superior performance compared to economy models. This variant can be fitted with an optional Adjustable Gearbox Support for added versatility.

Features and Benefits:
• 1 tonne capacity suitable for a wide range of transmissions
• High-speed lift to gearbox – just lift piston
• Foot pedal operation for hands-free control
• Spring-loaded dead man's safety release reduces inadvertent lowering risk
• 2-way hydraulic unit ensures controlled speed lowering
• Extra-large castors for increased manoeuvrability
• Enhanced hydraulic unit for improved performance and durability

Specifications:
Base Size: 610 x 680mm
Brand: Sealey
Capacity: 1000kg
Fixed/Adjustable Saddle: Fixed
Maximum Saddle Height: 1950mm
Minimum Saddle Height: 1120mm
Nett Weight: 40.4kg
Optional Accessories: ADT5 - Adjustable Gearbox Support
Pump Strokes to Maximum Height: n/a
Ram Extensions: 1
Warranty Information: Backed by our 1-year guarantee, in addition to your statutory rights. Guarantee excludes general wear, tear and misuse.
