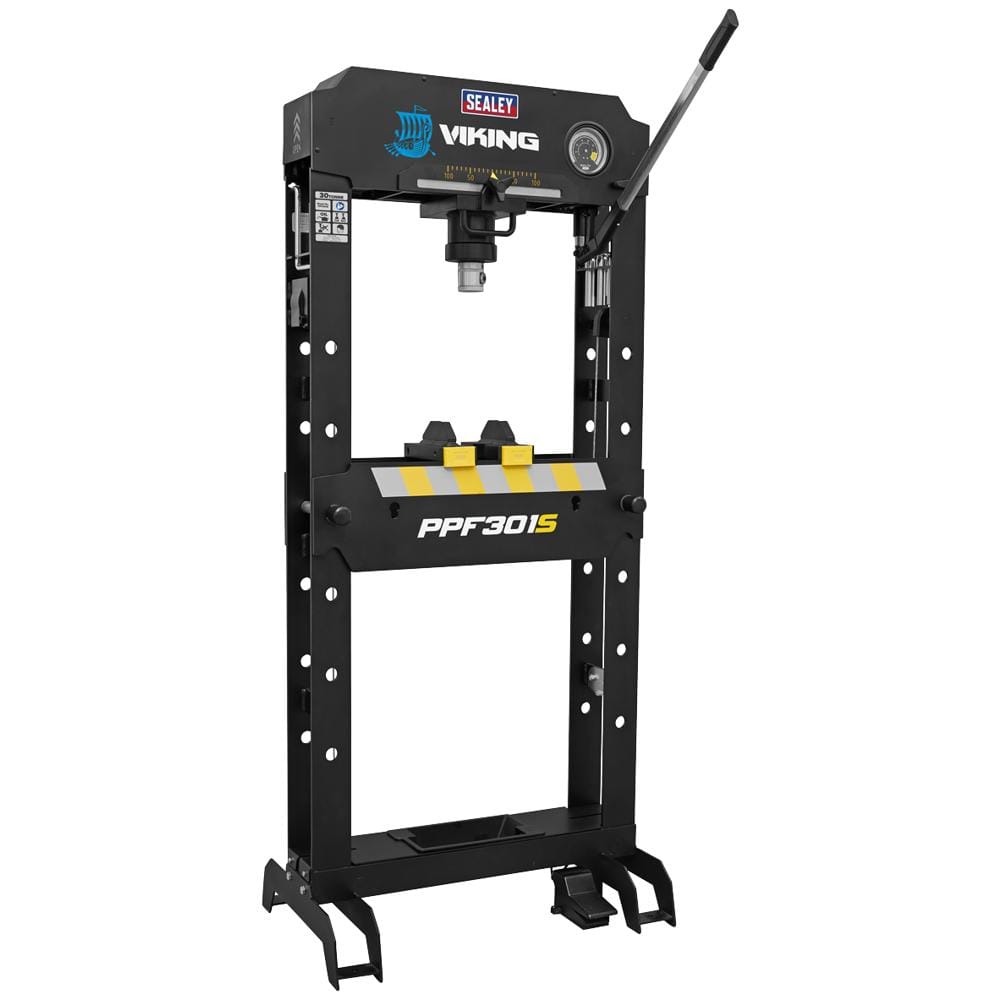

Sealey Viking Floor Air / Hydraulic Press with Sliding Ram and Foot Pedal

The 30 tonne capacity model offers an ideal balance of power and practicality for general workshop pressing tasks, making it perfectly suited for automotive repair shops, machine shops, and maintenance facilities handling medium-duty applications. This entry-level variant delivers professional performance for bearing removal, bushing installation, and straightening operations without the footprint demands of larger capacity models.

Featuring a screw adjustable ram alongside the sliding hydraulic ram assembly, this press provides 200mm of lateral travel for off-centre pressing applications. The adjustable work area includes a removable tray with a 168mm table aperture. Heavy-duty steel frame construction incorporates an integral air motor powering the hydraulic pump unit, whilst the frame head is fitted with a ram pressure gauge for accurate force monitoring. Winch-assisted press table adjustment ensures effortless positioning.

Features and Benefits:
• 30 tonne pressing capacity suitable for general workshop tasks
• Screw adjustable ram for precise positioning
• 200mm lateral ram travel for off-centre applications
• 168mm table aperture for medium-sized components
• Complete with press pins, flat pressing plate and V-blocks
• Storage for press pins integrated into frame
• 5 year guarantee included
• Extra delivery assistance required due to weight

Specifications:
Air Consumption: 4.5cfm
Bench or Floor Mounting: Floor
Brand: Viking
Capacity: 30 Tonne
Gauge Included: Yes
Lateral Ram Travel: 200mm
Maximum Height - Ram to Table: 850mm
Minimum Height - Ram to Table: 25mm
Nett Weight: 162.5kg
Operating Table Width: 600mm
Overall Height: 1800mm
Ram Diameter: Ø103.2mm
Ram Stroke: 220mm
Screw Extension: 75mm
Table Aperture: 168mm
Type: Floor
Working Table Depth: 188mm
Working Table Width: 770mm
