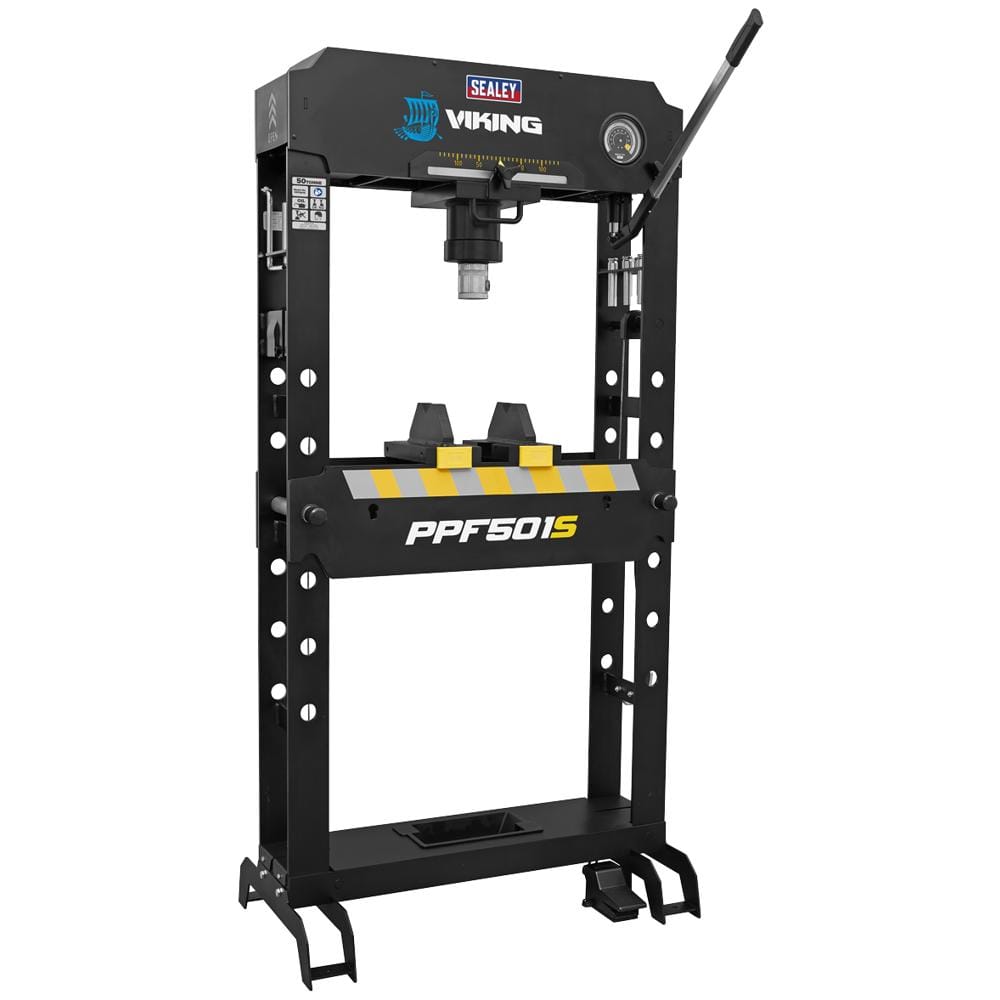

Sealey Viking Floor Air / Hydraulic Press with Sliding Ram and Foot Pedal

The 50 tonne capacity variant provides substantial pressing power for demanding workshop applications, positioning it as the mid-range option that handles heavier-duty tasks whilst remaining more compact than the 100 tonne model. This press excels in busy commercial workshops requiring versatile capability for bearing extraction, shaft straightening, and heavy component assembly work.

The screw adjustable ram works in conjunction with the sliding hydraulic ram assembly, which delivers 280mm of lateral travel for comprehensive off-centre pressing flexibility. The adjustable work area features a removable tray with a 224mm table aperture, accommodating a wide range of component sizes. Heavy-duty steel frame construction houses an integral air motor powering the hydraulic pump unit, whilst the frame head incorporates a ram pressure gauge for precise force monitoring. Winch-assisted press table adjustment provides effortless height positioning of heavy workpieces.

Features and Benefits:
• 50 tonne pressing capacity for heavy-duty applications
• Screw adjustable ram for precise control
• 280mm lateral ram travel for extensive off-centre pressing
• 224mm table aperture for larger components
• Complete with press pins, flat pressing plate and V-blocks
• Storage for press pins built into frame
• 5 year guarantee included
• Extra delivery assistance required due to substantial weight

Specifications:
Air Consumption: 4.5cfm
Bench or Floor Mounting: Floor
Brand: Viking
Capacity: 50 Tonne
Gauge Included: Yes
Lateral Ram Travel: 280mm
Maximum Height - Ram to Table: 780mm
Minimum Height - Ram to Table: 80mm
Nett Weight: 249.2kg
Operating Table Width: 750mm
Overall Height: 1900mm
Ram Diameter: Ø123.6mm
Ram Stroke: 220mm
Screw Extension: 75mm
Table Aperture: 224mm
Type: Floor
Working Table Depth: 248mm
Working Table Width: 930mm
